Stator Kits

Show First 12 Product(s)


Universal 2 Stroke Ignition System - STK-005
Universal 2 Stroke Ignition System - (STK-005)Stator & Rotor detail - (STK-005)STK-005 Wiring diagram

Universal 2 Stroke Ignition System - STK-005


Price (excl. vat): 155.00
(186.00 Including VAT at 20%)

Many of these items are made to order.
You will be advised on any delay.

Stator Kit Fits:

Universal:

Universal self generating CDI ignition system for 2 stroke single cylinder engines up to 250CC.


NOTE: Parts may require machining or modification to fit


  • Low inertia rotor for high performance.
  • This kit has an advance period of approx 5 degrees. Note: this is electronic advance not the full advance setting for the engine.
  • High spark energy gives excellent performance.
  • CDI Ignition - no battery required.
  • Start of ignition 300rpm. Spark period 360 degrees.
  • Complete kit weight 1.1kg. Rotor weight 0.43kg.
  • Stator OD 117mm (4.606"). Base plate location diameter 94mm (3.700").
  • Rotor OD 62mm (2.22"), depth 32mm (1.259"). Rotor taper larger end 15.5mm (0.610"), angle 5.5 degrees. Weight 0.43kg (0.95lbs).
  • Manufactured in the UK.

Click the following link to download fitting instructions:
Download Instructions

Warranty

  • Road bike components - one year from the date of purchase
  • Off-road bike components - six months from the date of purchase
  • Race bike components - no warranty in line with industry practice
  • Any warranty does not cover defects due to abuse, misuse, improper installation or modification.

Transit

If any items were damaged in transit, we ask that you report it to us within 7 working days. On their return they can be replaced or a refund issued via your original payment method.

Faulty on arrival

If your items are faulty on arrival, you should inform us within 14 days of delivery. Items should be returned in their original packaging when possible with a copy of original documentation. Once we have verified the fault, we will issue a replacement or full refund to you via your original payment method.

Items faulty in warranty period

If any of your purchases develop a fault within its warranty period it will need to be returned. Once the fault has been verified, a repair or exchange of goods will be issued. If goods are found to be in good working order a testing/administration charge of 15 + VAT and return postage will be made to the customer.

Items ordered in error

If an item has been ordered in error, you should inform us within 14 days of delivery. We will not accept returned goods without prior consent except under guarantee. A minimum restocking/administration charge of 5 + VAT will be made on returned goods.

Returns We want you to be happy with your purchase from Electrex World Limited however there may be certain instances when products may need to be returned.

International Returns

International returns must be marked as 'Return - Failed Sale on any customs documentation. If there are any customs fees to pay, we will deduct these from your refund/credit.

Notes

  1. All returns must be accompanied by a copy of the original invoice and a completed returns form which can be downloaded using the following link:
    RETURNS FORM
  2. Returns take approximately five business days to process upon receipt of the item.
  3. We are not responsible for the loss or damage of items during their return. Please note that the customer has a duty of care whilst the goods are in their possession and that they should be thoughtfully packaged for the return shipment.
  4. Buyer is responsible for any shipping charges when returning the item.
  5. When fitting electrical parts these can be damaged by the same faulty electrical system that caused the initial failure and in such circumstances these parts cannot be returned for refund.
  6. No refund can be given If the item is out of warranty, if the item is within warranty but has been subjected to conditions beyond their specification or the item has been fitted/used.

Return Address

Electrex World Limited Units 43-46 Vanalloys Business Park Stoke Row Oxfordshire RG9 5QW

2006-2016 Electrex World Ltd. All rights reserved. Home | Terms & Conditions

Registered in England & Wales Company Registration number 04306310. VAT number 785 299 174.

Red - Battery +12v | Green - Battery -12v and earth | Blue - Pick-up | Yellow - HT-coil


Royal Enfield Crusader Ignition only Stator Kit - STK-009

Royal Enfield Crusader Ignition only Stator Kit - STK-009


Price (excl. vat): 175.00
(210.00 Including VAT at 20%)

Many of these items are made to order.
You will be advised on any delay.

Stator Kit Fits:

Royal Enfield:Crusader

NOTE: Mounted on the right-hand side.


NOTE: High energy HT-CDI ignition only system.


NOTE: For ignition and lighting please click STK-109D below in related products.


  • Self generating CDI ignition eliminates requirement for a battery, points or distributor. Ideal for Trails and MX.
  • Replaces the original Lucas/Wipac alternator and rotor.
  • Keyless rotor fitting on to crankshaft. This uses a taper collet to lock the rotor key securely on to the crank. Advantages over a woodruff key and keyway are infinite positioning of the rotor for ignition timing. Can be used where there is a worn crank or damaged keyway.
  • The spark energy and the timing are produced by the stator coil. The exact advance curve is determined by the stator + CDI combination.
  • Easy timing set-up, adjustment is via slotted holes with setting markings shown on the rotor and stator.
  • Fully compatible for operation within the engine oil.
  • Commonly fitted for race applications where the low inertia flywheel allows for rapid engine acceleration.
  • Rotor weight: 0.4kg (.88lbs). Complete kit weight: 1.36kg (3lbs).
  • For ignition and lighting please click STK-109D below in related products.
  • Manufactured in the UK.

Click the following link to download fitting instructions:
Download Instructions

Warranty

  • Road bike components - one year from the date of purchase
  • Off-road bike components - six months from the date of purchase
  • Race bike components - no warranty in line with industry practice
  • Any warranty does not cover defects due to abuse, misuse, improper installation or modification.

Transit

If any items were damaged in transit, we ask that you report it to us within 7 working days. On their return they can be replaced or a refund issued via your original payment method.

Faulty on arrival

If your items are faulty on arrival, you should inform us within 14 days of delivery. Items should be returned in their original packaging when possible with a copy of original documentation. Once we have verified the fault, we will issue a replacement or full refund to you via your original payment method.

Items faulty in warranty period

If any of your purchases develop a fault within its warranty period it will need to be returned. Once the fault has been verified, a repair or exchange of goods will be issued. If goods are found to be in good working order a testing/administration charge of 15 + VAT and return postage will be made to the customer.

Items ordered in error

If an item has been ordered in error, you should inform us within 14 days of delivery. We will not accept returned goods without prior consent except under guarantee. A minimum restocking/administration charge of 5 + VAT will be made on returned goods.

Returns We want you to be happy with your purchase from Electrex World Limited however there may be certain instances when products may need to be returned.

International Returns

International returns must be marked as 'Return - Failed Sale on any customs documentation. If there are any customs fees to pay, we will deduct these from your refund/credit.

Notes

  1. All returns must be accompanied by a copy of the original invoice and a completed returns form which can be downloaded using the following link:
    RETURNS FORM
  2. Returns take approximately five business days to process upon receipt of the item.
  3. We are not responsible for the loss or damage of items during their return. Please note that the customer has a duty of care whilst the goods are in their possession and that they should be thoughtfully packaged for the return shipment.
  4. Buyer is responsible for any shipping charges when returning the item.
  5. When fitting electrical parts these can be damaged by the same faulty electrical system that caused the initial failure and in such circumstances these parts cannot be returned for refund.
  6. No refund can be given If the item is out of warranty, if the item is within warranty but has been subjected to conditions beyond their specification or the item has been fitted/used.

Return Address

Electrex World Limited Units 43-46 Vanalloys Business Park Stoke Row Oxfordshire RG9 5QW

2006-2016 Electrex World Ltd. All rights reserved. Home | Terms & Conditions

Registered in England & Wales Company Registration number 04306310. VAT number 785 299 174.


Internal RotorIR10T55.00Product link
Ignition StatorEWST-001085.00Product link
CDI UnitCD001071.50Product link
HT CoilHT5530.00Product link
SwitchSW1120.00Product link
HT plugcapPLUGCAP4.00Product link


BSA B25, B40, B44, B50, C15, C12T | Matchless 350 |  Royal Enfield 350 Ignition only Stator Kit - STK-010
BSA B25, B40, B44, B50, C15, C12T | Matchless 350 |  Royal Enfield: 350 Ignition only Stator Kit - (STK-010)In place on the engine - (STK-010)STK-010 Timing drawingSTK-010 wiring diagram

BSA B25, B40, B44, B50, C15, C12T | Matchless 350 | Royal Enfield 350 Ignition only Stator Kit - STK-010


Price (excl. vat): 175.00
(210.00 Including VAT at 20%)

Many of these items are made to order.
You will be advised on any delay.

Stator Kit Fits:

BSA:B25
B40
B44
B50
C12T
C15
Matchless:350
Royal Enfield:350

NOTE: No lighting available for this kit, please see STK-100D in related products below.


NOTE: Only suitable for Matchless models with a tin clutch cover where the original stator is mounted directly on to the crankshaft. NOT suitable for models with an aluminium clutch cover where the original statopr is mounted in the clutch cover.


NOTE: For twin plug head applications please see STK-012 (related products below).

  • Self generating, ignition only high performance system for single cylinder engines. Ideal for Trials and MX.
  • Replaces the original Lucas alternator - points and distributor are not required.
  • Electronic advance curve specifically developed for BSA singles allowing easy starting and maximum performance.
  • Easy installation, only 2 cables to connect directly to the combined HT-CDI unit.
  • Fully compatible for operation within the engine oil.
  • Commonly fitted for race applications where the low inertia flywheel allows for rapid engine acceleration.
  • Manufactured in the UK.

Click the following link to download fitting instructions:
Download Instructions

Warranty

  • Road bike components - one year from the date of purchase
  • Off-road bike components - six months from the date of purchase
  • Race bike components - no warranty in line with industry practice
  • Any warranty does not cover defects due to abuse, misuse, improper installation or modification.

Transit

If any items were damaged in transit, we ask that you report it to us within 7 working days. On their return they can be replaced or a refund issued via your original payment method.

Faulty on arrival

If your items are faulty on arrival, you should inform us within 14 days of delivery. Items should be returned in their original packaging when possible with a copy of original documentation. Once we have verified the fault, we will issue a replacement or full refund to you via your original payment method.

Items faulty in warranty period

If any of your purchases develop a fault within its warranty period it will need to be returned. Once the fault has been verified, a repair or exchange of goods will be issued. If goods are found to be in good working order a testing/administration charge of 15 + VAT and return postage will be made to the customer.

Items ordered in error

If an item has been ordered in error, you should inform us within 14 days of delivery. We will not accept returned goods without prior consent except under guarantee. A minimum restocking/administration charge of 5 + VAT will be made on returned goods.

Returns We want you to be happy with your purchase from Electrex World Limited however there may be certain instances when products may need to be returned.

International Returns

International returns must be marked as 'Return - Failed Sale on any customs documentation. If there are any customs fees to pay, we will deduct these from your refund/credit.

Notes

  1. All returns must be accompanied by a copy of the original invoice and a completed returns form which can be downloaded using the following link:
    RETURNS FORM
  2. Returns take approximately five business days to process upon receipt of the item.
  3. We are not responsible for the loss or damage of items during their return. Please note that the customer has a duty of care whilst the goods are in their possession and that they should be thoughtfully packaged for the return shipment.
  4. Buyer is responsible for any shipping charges when returning the item.
  5. When fitting electrical parts these can be damaged by the same faulty electrical system that caused the initial failure and in such circumstances these parts cannot be returned for refund.
  6. No refund can be given If the item is out of warranty, if the item is within warranty but has been subjected to conditions beyond their specification or the item has been fitted/used.

Return Address

Electrex World Limited Units 43-46 Vanalloys Business Park Stoke Row Oxfordshire RG9 5QW

2006-2016 Electrex World Ltd. All rights reserved. Home | Terms & Conditions

Registered in England & Wales Company Registration number 04306310. VAT number 785 299 174.


Internal RotorIR10T55.00Product link
Ignition StatorEWST-001085.00Product link
CDI UnitCD001071.50Product link
HT CoilHT5530.00Product link
SwitchSW1120.00Product link
HT plugcapPLUGCAP4.00Product link

BSA B25, B40, B44, B50, C15 Self-generating Digital Internal Rotor Kit - STK-010D
BSA B25, B40, B44, B50, C15 Self-generating Digital Internal Rotor Kit - (STK-010D)STK-010D Wiring Diagram

BSA B25, B40, B44, B50, C15 Self-generating Digital Internal Rotor Kit - STK-010D


Price (excl. vat): 225.00
(270.00 Including VAT at 20%)

Many of these items are made to order.
You will be advised on any delay.

THESE ARE CURRENTLY OUT OF STOCK PLEASE REFER TO STK-010 - SEE RELATED PRODUCTS BELOW.

Stator Kit Fits:

BSA:B25
B40
B44
B50
C15
  • Self generating internal rotor, cdi digital ignition system, no battery required eliminating need for battery charger, as well as being lighter.
  • Replaces the original Lucas alternator - points and distributor are not required.
  • Period of advance 27 or 15, user selectable with programmed rev limiter (not user programmable).
  • For easy starting a spark is generated at 300rpm.
  • Operates within the engine oil.
  • Keyless rotor fitting onto crankshaft. This uses a larger collet to lock the rotor key securely onto the crank. Advantages over a woodruff key and keyway are infinite positioning of the rotor for ignition timing. Can be used on a worn crank or damaged keyway.
  • Manufactured in the UK.

Click the following link to download fitting instructions:
Download Instructions

Warranty

  • Road bike components - one year from the date of purchase
  • Off-road bike components - six months from the date of purchase
  • Race bike components - no warranty in line with industry practice
  • Any warranty does not cover defects due to abuse, misuse, improper installation or modification.

Transit

If any items were damaged in transit, we ask that you report it to us within 7 working days. On their return they can be replaced or a refund issued via your original payment method.

Faulty on arrival

If your items are faulty on arrival, you should inform us within 14 days of delivery. Items should be returned in their original packaging when possible with a copy of original documentation. Once we have verified the fault, we will issue a replacement or full refund to you via your original payment method.

Items faulty in warranty period

If any of your purchases develop a fault within its warranty period it will need to be returned. Once the fault has been verified, a repair or exchange of goods will be issued. If goods are found to be in good working order a testing/administration charge of 15 + VAT and return postage will be made to the customer.

Items ordered in error

If an item has been ordered in error, you should inform us within 14 days of delivery. We will not accept returned goods without prior consent except under guarantee. A minimum restocking/administration charge of 5 + VAT will be made on returned goods.

Returns We want you to be happy with your purchase from Electrex World Limited however there may be certain instances when products may need to be returned.

International Returns

International returns must be marked as 'Return - Failed Sale on any customs documentation. If there are any customs fees to pay, we will deduct these from your refund/credit.

Notes

  1. All returns must be accompanied by a copy of the original invoice and a completed returns form which can be downloaded using the following link:
    RETURNS FORM
  2. Returns take approximately five business days to process upon receipt of the item.
  3. We are not responsible for the loss or damage of items during their return. Please note that the customer has a duty of care whilst the goods are in their possession and that they should be thoughtfully packaged for the return shipment.
  4. Buyer is responsible for any shipping charges when returning the item.
  5. When fitting electrical parts these can be damaged by the same faulty electrical system that caused the initial failure and in such circumstances these parts cannot be returned for refund.
  6. No refund can be given If the item is out of warranty, if the item is within warranty but has been subjected to conditions beyond their specification or the item has been fitted/used.

Return Address

Electrex World Limited Units 43-46 Vanalloys Business Park Stoke Row Oxfordshire RG9 5QW

2006-2016 Electrex World Ltd. All rights reserved. Home | Terms & Conditions

Registered in England & Wales Company Registration number 04306310. VAT number 785 299 174.


Internal RotorIR10T55.00Product link
Ignition StatorEWST-010D75.00Product link
CDICD068C04182.50Product link
HT CoilHT5530.00Product link
SwitchSW1120.00Product link
HT plugcapPLUGCAP4.00Product link

BSA A65, B25, B40, B50, C15 singles with twin plug head | Royal Enfield Interceptor | Triumph 3TA, 5TA, T120, T140 Self-Generating Internal Rotor Kit - twin spark plug - STK-012
BSA A65 | Royal Enfield Interceptor | Triumph 3TA, 5TA, T120 Self-Generating Internal Rotor Kit (twin spark plug) - (STK-012)Rotor assembly using keyless taper lock system - (STK-012)STK-012 Wiring Diagram

BSA A65, B25, B40, B50, C15 singles with twin plug head | Royal Enfield Interceptor | Triumph 3TA, 5TA, T120, T140 Self-Generating Internal Rotor Kit - twin spark plug - STK-012


Price (excl. vat): 185.00
(222.00 Including VAT at 20%)

Many of these items are made to order.
You will be advised on any delay.

Stator Kit Fits:

BSA:B25
B40
B44
B50
C12T
C15
A65
Royal Enfield:Interceptor
Triumph:3TA
5TA
Unit 650T120
T140

NOTE: This kit is ignition only, it does not have a lighting option.


  • Ignition only self generating CDI ignition with electronic advance, specifically developed for Triumph twins allowing easy starting and maximum performance.
  • Period of electronic advance 27.
  • Replaces the original Lucas alternator - points and distributor are not required.
  • For easy starting a spark is generated at 300rpm.
  • Operates within the engine oil.
  • Manufactured in the UK.
  • For lighting version please see related products - (STK-102D)

Click the following link to download fitting instructions:
Download Instructions

Warranty

  • Road bike components - one year from the date of purchase
  • Off-road bike components - six months from the date of purchase
  • Race bike components - no warranty in line with industry practice
  • Any warranty does not cover defects due to abuse, misuse, improper installation or modification.

Transit

If any items were damaged in transit, we ask that you report it to us within 7 working days. On their return they can be replaced or a refund issued via your original payment method.

Faulty on arrival

If your items are faulty on arrival, you should inform us within 14 days of delivery. Items should be returned in their original packaging when possible with a copy of original documentation. Once we have verified the fault, we will issue a replacement or full refund to you via your original payment method.

Items faulty in warranty period

If any of your purchases develop a fault within its warranty period it will need to be returned. Once the fault has been verified, a repair or exchange of goods will be issued. If goods are found to be in good working order a testing/administration charge of 15 + VAT and return postage will be made to the customer.

Items ordered in error

If an item has been ordered in error, you should inform us within 14 days of delivery. We will not accept returned goods without prior consent except under guarantee. A minimum restocking/administration charge of 5 + VAT will be made on returned goods.

Returns We want you to be happy with your purchase from Electrex World Limited however there may be certain instances when products may need to be returned.

International Returns

International returns must be marked as 'Return - Failed Sale' on any customs documentation. If there are any customs fees to pay, we will deduct these from your refund/credit.

Notes

  1. All returns must be accompanied by a copy of the original invoice and a completed returns form which can be downloaded using the following link:
    RETURNS FORM
  2. Returns take approximately five business days to process upon receipt of the item.
  3. We are not responsible for the loss or damage of items during their return. Please note that the customer has a duty of care whilst the goods are in their possession and that they should be thoughtfully packaged for the return shipment.
  4. Buyer is responsible for any shipping charges when returning the item.
  5. When fitting electrical parts these can be damaged by the same faulty electrical system that caused the initial failure and in such circumstances these parts cannot be returned for refund.
  6. No refund can be given If the item is out of warranty, if the item is within warranty but has been subjected to conditions beyond their specification or the item has been fitted/used.

Return Address

Electrex World Limited Units 43-46 Vanalloys Business Park Stoke Row Oxfordshire RG9 5QW

2006-2016 Electrex World Ltd. All rights reserved. Home | Terms & Conditions

Registered in England & Wales Company Registration number 04306310. VAT number 785 299 174.


Internal RotorIR10T55.00Product link
Ignition StatorEWST-001275.00Product link
CDI UnitCD001071.50Product link
HT2HTCoil45.00Product link
SwitchSW1120.00Product link
HT plugcapPLUGCAP4.00Product link

Triumph 3TA, 5TA, T120, T140 | BSA A65 Generating Digital Internal Rotor Kit (twin spark plug) - STK-012D
Triumph 3TA, 5TA, T120 | BSA A65 Generating Digital Internal Rotor Kit (twin spark plug) - (STK-012D)Rotor assembly using keyless taper lock system - (STK-012D)STK-012D Wiring Diagram

Triumph 3TA, 5TA, T120, T140 | BSA A65 Generating Digital Internal Rotor Kit (twin spark plug) - STK-012D


Price (excl. vat): 225.00
(270.00 Including VAT at 20%)

Many of these items are made to order.
You will be advised on any delay.

THESE ARE CURRENTLY OUT OF STOCK PLEASE REFER TO STK-012 COMPLETE WITH UPGRADED ROTOR - SEE RELATED PRODUCTS BELOW.

Stator Kit Fits:

BSA:A65
Triumph:3TA
5TA
T120
T140

NOTE: For lighting version please see related products (STK-102D)


  • Self generating internal rotor, cdi digital ignition system, no battery required eliminating need for battery charger, as well as being lighter.
  • Replaces the original Lucas alternator - points and distributor are not required.
  • Digital electronic advance curve specifically developed for Triumph twins allowing easy starting and maximum performance.
  • Period of advance 27 or 15, user selectable with programmed rev limiter (not user programmable).
  • For easy starting a spark is generated at 300rpm.
  • Operates within the engine oil.
  • Keyless rotor fitting onto crankshaft. This uses a larger collet to lock the rotor key securely onto the crank. Advantages over a woodruff key and keyway are infinite positioning of the rotor for ignition timing. Can be used on a worn crank or damaged keyway.
  • Manufactured in the UK.

Click the following link to download fitting instructions:
Download Instructions

Warranty

  • Road bike components - one year from the date of purchase
  • Off-road bike components - six months from the date of purchase
  • Race bike components - no warranty in line with industry practice
  • Any warranty does not cover defects due to abuse, misuse, improper installation or modification.

Transit

If any items were damaged in transit, we ask that you report it to us within 7 working days. On their return they can be replaced or a refund issued via your original payment method.

Faulty on arrival

If your items are faulty on arrival, you should inform us within 14 days of delivery. Items should be returned in their original packaging when possible with a copy of original documentation. Once we have verified the fault, we will issue a replacement or full refund to you via your original payment method.

Items faulty in warranty period

If any of your purchases develop a fault within its warranty period it will need to be returned. Once the fault has been verified, a repair or exchange of goods will be issued. If goods are found to be in good working order a testing/administration charge of 15 + VAT and return postage will be made to the customer.

Items ordered in error

If an item has been ordered in error, you should inform us within 14 days of delivery. We will not accept returned goods without prior consent except under guarantee. A minimum restocking/administration charge of 5 + VAT will be made on returned goods.

Returns We want you to be happy with your purchase from Electrex World Limited however there may be certain instances when products may need to be returned.

International Returns

International returns must be marked as 'Return - Failed Sale on any customs documentation. If there are any customs fees to pay, we will deduct these from your refund/credit.

Notes

  1. All returns must be accompanied by a copy of the original invoice and a completed returns form which can be downloaded using the following link:
    RETURNS FORM
  2. Returns take approximately five business days to process upon receipt of the item.
  3. We are not responsible for the loss or damage of items during their return. Please note that the customer has a duty of care whilst the goods are in their possession and that they should be thoughtfully packaged for the return shipment.
  4. Buyer is responsible for any shipping charges when returning the item.
  5. When fitting electrical parts these can be damaged by the same faulty electrical system that caused the initial failure and in such circumstances these parts cannot be returned for refund.
  6. No refund can be given If the item is out of warranty, if the item is within warranty but has been subjected to conditions beyond their specification or the item has been fitted/used.

Return Address

Electrex World Limited Units 43-46 Vanalloys Business Park Stoke Row Oxfordshire RG9 5QW

2006-2016 Electrex World Ltd. All rights reserved. Home | Terms & Conditions

Registered in England & Wales Company Registration number 04306310. VAT number 785 299 174.


Internal RotorIR10T55.00Product link
StatorEWST-012D75.00Product link
CDICD068C04182.50Product link
HT CoilHT245.00Product link
SwitchSW1120.00Product link
HT plugcapPLUGCAP4.00Product link

You may or may not recall our conversation earlier this year regarding fitting STK012d twin spark s/g race kit to my Matchless G50 classic racer. A friend and colleague Phil McGurk fitted one to his BSA Gold Star and put in the 1st ever 100mph+ lap of the I.o.m. last year 2016.

Well, you supplied one and after some machining work to the crankcases and the making of a stator plate to suit; it has all fitted quite nicely and am please to say works a treat. Starting is the most noticeable improvement; as it can now be started with a push if need be and the starting rollers are not necessary any more.



December 2017


Husqvarna CR250, CR400 CDI Ignition Stator Kit - STK-017
Husqvarna CR250, CR400, Stator Kit - (STK-017)End of crankshaft measurement STK-017 wiring diagram

Husqvarna CR250, CR400 CDI Ignition Stator Kit - STK-017


Price (excl. vat): 175.00
(210.00 Including VAT at 20%)

Many of these items are made to order.
You will be advised on any delay.

Stator Kit Fits:

Husqvarna:CR250CR400 - pre 1983

NOTE: Husqvarna used several versions of crank size and stator outer diameter (OD), so carfeully check dimensions below for comptability


  • Hi-performance cdi ignition system with internal rotor with low inertia for rapid acceleration.
  • New stator has low starting speed.
  • End of crank OD - 14mm (0.550")
  • Stator adaptor (baseplate) OD - 110mm (4.33")
  • If not the same as above please contact us as other variations are available.
  • Manufactured in the UK.

Warranty

  • Road bike components - one year from the date of purchase
  • Off-road bike components - six months from the date of purchase
  • Race bike components - no warranty in line with industry practice
  • Any warranty does not cover defects due to abuse, misuse, improper installation or modification.

Transit

If any items were damaged in transit, we ask that you report it to us within 7 working days. On their return they can be replaced or a refund issued via your original payment method.

Faulty on arrival

If your items are faulty on arrival, you should inform us within 14 days of delivery. Items should be returned in their original packaging when possible with a copy of original documentation. Once we have verified the fault, we will issue a replacement or full refund to you via your original payment method.

Items faulty in warranty period

If any of your purchases develop a fault within its warranty period it will need to be returned. Once the fault has been verified, a repair or exchange of goods will be issued. If goods are found to be in good working order a testing/administration charge of 15 + VAT and return postage will be made to the customer.

Items ordered in error

If an item has been ordered in error, you should inform us within 14 days of delivery. We will not accept returned goods without prior consent except under guarantee. A minimum restocking/administration charge of 5 + VAT will be made on returned goods.

Returns We want you to be happy with your purchase from Electrex World Limited however there may be certain instances when products may need to be returned.

International Returns

International returns must be marked as 'Return - Failed Sale on any customs documentation. If there are any customs fees to pay, we will deduct these from your refund/credit.

Notes

  1. All returns must be accompanied by a copy of the original invoice and a completed returns form which can be downloaded using the following link:
    RETURNS FORM
  2. Returns take approximately five business days to process upon receipt of the item.
  3. We are not responsible for the loss or damage of items during their return. Please note that the customer has a duty of care whilst the goods are in their possession and that they should be thoughtfully packaged for the return shipment.
  4. Buyer is responsible for any shipping charges when returning the item.
  5. When fitting electrical parts these can be damaged by the same faulty electrical system that caused the initial failure and in such circumstances these parts cannot be returned for refund.
  6. No refund can be given If the item is out of warranty, if the item is within warranty but has been subjected to conditions beyond their specification or the item has been fitted/used.

Return Address

Electrex World Limited Units 43-46 Vanalloys Business Park Stoke Row Oxfordshire RG9 5QW

2006-2016 Electrex World Ltd. All rights reserved. Home | Terms & Conditions

Registered in England & Wales Company Registration number 04306310. VAT number 785 299 174.


Internal RotorIR1855.00Product link
StatorEWST-009075.00Product link
Adapter PlateAD15220.00Product link
CDICD68065.00Product link
HT CoilHT5530.00Product link
SwitchSW1120.00Product link
HT plugcapPLUGCAP4.00Product link

Husqvarna CR250, CR400, CR430, CR500 Stator Kit - STK-018
Husqvarna CR250, CR400, CR430, CR500 Stator Kit - (STK-018)End of crankshaft measurement - (STK-018)STK-018 Wiring Diagram

Husqvarna CR250, CR400, CR430, CR500 Stator Kit - STK-018


Price (excl. vat): 175.00
(210.00 Including VAT at 20%)

Many of these items are made to order.
You will be advised on any delay.

Stator Kit Fits:

Husqvarna:CR250 (1982-1986 +1988)CR400 (1982-1988)
CR430 (1982 to 1988)
CR500 (1982 - 1988)
Plus possible early 250 - 400 cross

NOTE: Husqvarna used several versions of crank size and stator outer diameter (OD), so carfeully check dimensions below for comptability of STK-018


  • Hi-performance cdi ignition system with internal rotor with low inertia for rapid acceleration.
  • Replaces SEM system. Ignition only kit, for lighting version see STK-185L (see related products below).
  • New stator has low starting speed, particularly useful for the CR500.
  • End of crank OD - 14mm (0.55")
  • Stator adaptor (baseplate) OD - 130mm (5.1")
  • If not the same as above please contact us as other variations are available.
  • Manufactured in the UK.

Click the following link to download fitting instructions:
Download Instructions

Warranty

  • Road bike components - one year from the date of purchase
  • Off-road bike components - six months from the date of purchase
  • Race bike components - no warranty in line with industry practice
  • Any warranty does not cover defects due to abuse, misuse, improper installation or modification.

Transit

If any items were damaged in transit, we ask that you report it to us within 7 working days. On their return they can be replaced or a refund issued via your original payment method.

Faulty on arrival

If your items are faulty on arrival, you should inform us within 14 days of delivery. Items should be returned in their original packaging when possible with a copy of original documentation. Once we have verified the fault, we will issue a replacement or full refund to you via your original payment method.

Items faulty in warranty period

If any of your purchases develop a fault within its warranty period it will need to be returned. Once the fault has been verified, a repair or exchange of goods will be issued. If goods are found to be in good working order a testing/administration charge of 15 + VAT and return postage will be made to the customer.

Items ordered in error

If an item has been ordered in error, you should inform us within 14 days of delivery. We will not accept returned goods without prior consent except under guarantee. A minimum restocking/administration charge of 5 + VAT will be made on returned goods.

Returns We want you to be happy with your purchase from Electrex World Limited however there may be certain instances when products may need to be returned.

International Returns

International returns must be marked as 'Return - Failed Sale on any customs documentation. If there are any customs fees to pay, we will deduct these from your refund/credit.

Notes

  1. All returns must be accompanied by a copy of the original invoice and a completed returns form which can be downloaded using the following link:
    RETURNS FORM
  2. Returns take approximately five business days to process upon receipt of the item.
  3. We are not responsible for the loss or damage of items during their return. Please note that the customer has a duty of care whilst the goods are in their possession and that they should be thoughtfully packaged for the return shipment.
  4. Buyer is responsible for any shipping charges when returning the item.
  5. When fitting electrical parts these can be damaged by the same faulty electrical system that caused the initial failure and in such circumstances these parts cannot be returned for refund.
  6. No refund can be given If the item is out of warranty, if the item is within warranty but has been subjected to conditions beyond their specification or the item has been fitted/used.

Return Address

Electrex World Limited Units 43-46 Vanalloys Business Park Stoke Row Oxfordshire RG9 5QW

2006-2016 Electrex World Ltd. All rights reserved. Home | Terms & Conditions

Registered in England & Wales Company Registration number 04306310. VAT number 785 299 174.


Internal RotorIR1855.00Product link
StatorEWST-009075.00Product link
Adapter PlateAD18620.00Product link
CDICD68065.00Product link
HT CoilHT5530.00Product link
SwitchSW1120.00Product link
HT plugcapPLUGCAP4.00Product link

Hi just want to say thanks for the excellent stator kit. I fitted it to my 1975 cr250 Husky and it was relatively easy but more importantly works a treat. Instructions were easy and starting is now a snack. I was also blown away with the speed (5 working days) it was delivered to my door in Australia!

Awesome thanks



July 2017


Husqvarna WR125, WR250 Ignition only Stator Kit - STK-019
Husqvarna WR125, WR250 Ignition only Stator Kit - (STK-019)End of crankshaft measurement - (STK-019)STK-019 Wiring Diagram

Husqvarna WR125, WR250 Ignition only Stator Kit - STK-019


Price (excl. vat): 175.00
(210.00 Including VAT at 20%)

Many of these items are made to order.
You will be advised on any delay.

Stator Kit Fits:

Husqvarna:WR125WR250

NOTE: The rotor may vary for this model - The customer will need to measure the small end of the crankshaft to determine which rotor they need. Please see diagram above. Also check the stator location diameter in to crankcase, this is usually a diameter of 90mm (3.5") and must be checked before ordering.


NOTE: This unit like the original is ignition only, and has no facility for lighting.


  • Complete analogue ignition system to replace original Moto Plat digital set-up.
  • Fully electronic advance/retard curve for 2 stroke.
  • Easy set-up, no connectors to fit.
  • Instructions included - simple fitting.
  • Reliable, low cost kit.
  • Manufactured in the UK.

Click the following link to download fitting instructions:
Download Instructions

Warranty

  • Road bike components - one year from the date of purchase
  • Off-road bike components - six months from the date of purchase
  • Race bike components - no warranty in line with industry practice
  • Any warranty does not cover defects due to abuse, misuse, improper installation or modification.

Transit

If any items were damaged in transit, we ask that you report it to us within 7 working days. On their return they can be replaced or a refund issued via your original payment method.

Faulty on arrival

If your items are faulty on arrival, you should inform us within 14 days of delivery. Items should be returned in their original packaging when possible with a copy of original documentation. Once we have verified the fault, we will issue a replacement or full refund to you via your original payment method.

Items faulty in warranty period

If any of your purchases develop a fault within its warranty period it will need to be returned. Once the fault has been verified, a repair or exchange of goods will be issued. If goods are found to be in good working order a testing/administration charge of 15 + VAT and return postage will be made to the customer.

Items ordered in error

If an item has been ordered in error, you should inform us within 14 days of delivery. We will not accept returned goods without prior consent except under guarantee. A minimum restocking/administration charge of 5 + VAT will be made on returned goods.

Returns We want you to be happy with your purchase from Electrex World Limited however there may be certain instances when products may need to be returned.

International Returns

International returns must be marked as 'Return - Failed Sale on any customs documentation. If there are any customs fees to pay, we will deduct these from your refund/credit.

Notes

  1. All returns must be accompanied by a copy of the original invoice and a completed returns form which can be downloaded using the following link:
    RETURNS FORM
  2. Returns take approximately five business days to process upon receipt of the item.
  3. We are not responsible for the loss or damage of items during their return. Please note that the customer has a duty of care whilst the goods are in their possession and that they should be thoughtfully packaged for the return shipment.
  4. Buyer is responsible for any shipping charges when returning the item.
  5. When fitting electrical parts these can be damaged by the same faulty electrical system that caused the initial failure and in such circumstances these parts cannot be returned for refund.
  6. No refund can be given If the item is out of warranty, if the item is within warranty but has been subjected to conditions beyond their specification or the item has been fitted/used.

Return Address

Electrex World Limited Units 43-46 Vanalloys Business Park Stoke Row Oxfordshire RG9 5QW

2006-2016 Electrex World Ltd. All rights reserved. Home | Terms & Conditions

Registered in England & Wales Company Registration number 04306310. VAT number 785 299 174.


Internal RotorIR1855.00Product link
StatorEWST-009075.00Product link
CDICD68065.00Product link
HT CoilHT5530.00Product link
SwitchSW1120.00Product link
HT plugcapPLUGCAP4.00Product link

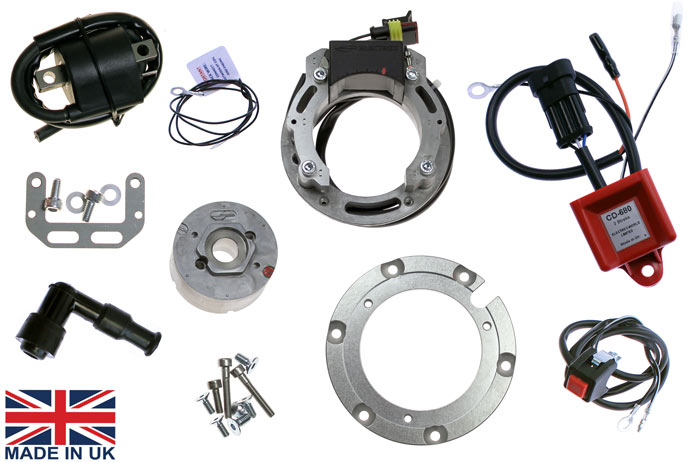

KTM 250MX CDI Ignition System with Internal Rotor - STK-025
KTM 250MX CDI Ignition System with Internal Rotor - (STK-025)Original SEM Digital ignition system - (STK-025)STK-025 Wiring Diagram

KTM 250MX CDI Ignition System with Internal Rotor - STK-025


Price (excl. vat): 175.00
(210.00 Including VAT at 20%)

Many of these items are made to order.
You will be advised on any delay.

Stator Kit Fits:

KTM:250MX

NOTE: This kit replaces original SEM set-up - please refer to image above.


NOTE: The original unit is ignition only as is the STK-025 and has no facility for lighting.


  • Timing curve designed to give maximum performance on the 2-stroke engine.
  • Easy fitting and set-up.
  • Reliable, low cost kit.
  • Manufactured in the UK.

Click the following link to download fitting instructions:
Download Instructions

Warranty

  • Road bike components - one year from the date of purchase
  • Off-road bike components - six months from the date of purchase
  • Race bike components - no warranty in line with industry practice
  • Any warranty does not cover defects due to abuse, misuse, improper installation or modification.

Transit

If any items were damaged in transit, we ask that you report it to us within 7 working days. On their return they can be replaced or a refund issued via your original payment method.

Faulty on arrival

If your items are faulty on arrival, you should inform us within 14 days of delivery. Items should be returned in their original packaging when possible with a copy of original documentation. Once we have verified the fault, we will issue a replacement or full refund to you via your original payment method.

Items faulty in warranty period

If any of your purchases develop a fault within its warranty period it will need to be returned. Once the fault has been verified, a repair or exchange of goods will be issued. If goods are found to be in good working order a testing/administration charge of 15 + VAT and return postage will be made to the customer.

Items ordered in error

If an item has been ordered in error, you should inform us within 14 days of delivery. We will not accept returned goods without prior consent except under guarantee. A minimum restocking/administration charge of 5 + VAT will be made on returned goods.

Returns We want you to be happy with your purchase from Electrex World Limited however there may be certain instances when products may need to be returned.

International Returns

International returns must be marked as 'Return - Failed Sale on any customs documentation. If there are any customs fees to pay, we will deduct these from your refund/credit.

Notes

  1. All returns must be accompanied by a copy of the original invoice and a completed returns form which can be downloaded using the following link:
    RETURNS FORM
  2. Returns take approximately five business days to process upon receipt of the item.
  3. We are not responsible for the loss or damage of items during their return. Please note that the customer has a duty of care whilst the goods are in their possession and that they should be thoughtfully packaged for the return shipment.
  4. Buyer is responsible for any shipping charges when returning the item.
  5. When fitting electrical parts these can be damaged by the same faulty electrical system that caused the initial failure and in such circumstances these parts cannot be returned for refund.
  6. No refund can be given If the item is out of warranty, if the item is within warranty but has been subjected to conditions beyond their specification or the item has been fitted/used.

Return Address

Electrex World Limited Units 43-46 Vanalloys Business Park Stoke Row Oxfordshire RG9 5QW

2006-2016 Electrex World Ltd. All rights reserved. Home | Terms & Conditions

Registered in England & Wales Company Registration number 04306310. VAT number 785 299 174.


Internal RotorIR2555.00Product link
StatorEWST-009075.00Product link
Adapter PlateAD15220.00Product link
CDICD68065.00Product link
HT CoilHT5530.00Product link
SwitchSW1120.00Product link
HT plugcapPLUGCAP4.00Product link

People who bought this also bought:

  1. KTM 500AE AIRCOOLED Internal Rotor Ignition Kit - STK-1050 (Ref: STK-1050)

BSA B25, B40, C15 | Matchless 350 | Royal Enfield: 350 Bullet Digital Ignition/Lighting Alternator Kit - STK-100D-DC
BSA B25, B40, B44, B50, C15 | Matchless 350 | Royal Enfield: 350 Bullet Digital Ignition/Lighting Alternator Kit - (STK-100D)Timing marks - (STK-100D)Stator on engine - (STK-100D)Remove excess material - (STK-100D)

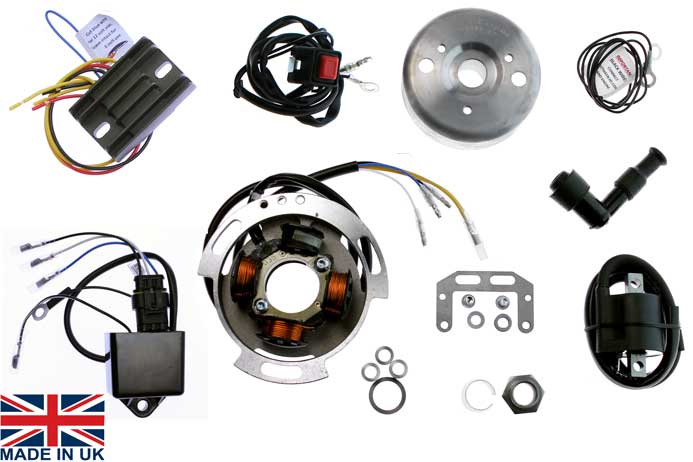

Remove excess material - (STK-100D)Remove excess material - (STK-100D)

BSA B25, B40, C15 | Matchless 350 | Royal Enfield: 350 Bullet Digital Ignition/Lighting Alternator Kit - STK-100D-DC


Price (excl. vat): 225.00
(270.00 Including VAT at 20%)

Many of these items are made to order.
You will be advised on any delay.

Stator Kit Fits:

BSA:B25B40C15
Matchless:350
Royal Enfield:350 Bullet

NOTE: for BSA B40, B44 and B50 - models with a separate inspection cover in the clutch cover. the x4 threaded bosses potrude inwards and may touch the end of the new rotor supplied. The remedy is to remove a small about of material using a 'power file', or similar grinder from the inside of the threaded boss - typically 2mm. - see images above.


NOTE: Only suitable for Matchless models with a tin clutch cover where the original stator is mounted directly on to the crankshaft.


NOTE: A battery is NOT required to run the ignition or lighting but advantageous for brakelight or indicators.


  • Replacement for Lucas or Wipac alternator. Complete digital self generating ignition and alternator, pre-programmed advance curve gives optimum performance.
  • No battery, contact breaker assembly or distributor required for the ignition.
  • Simple timing set-up align marks on the rotor and stator.
  • Supplied regulator/rectifier is 6v or 12v selectable by cutting the blue wire. Output is DC to charge a small battery.
  • The battery can be replaced with a PP12 capacitor pack - see related products below, this is more reliable than a battery but has limited energy storage. See notes about battery in Fitting Instructions tab above.
  • Rotor is supplied with a taper locking collet, enabling the rotor to be fitted on the 3/4" crankshaft without the need for a woodruff key, this allows system to be fitted even if keyway is damaged. The rotor can be fixed in any position making timing easier to set up.
  • Manufactured in the UK.

Click the following link to download fitting instructions:
Download Instructions  |  Previous version (2017)

Warranty

  • Road bike components - one year from the date of purchase
  • Off-road bike components - six months from the date of purchase
  • Race bike components - no warranty in line with industry practice
  • Any warranty does not cover defects due to abuse, misuse, improper installation or modification.

Transit

If any items were damaged in transit, we ask that you report it to us within 7 working days. On their return they can be replaced or a refund issued via your original payment method.

Faulty on arrival

If your items are faulty on arrival, you should inform us within 14 days of delivery. Items should be returned in their original packaging when possible with a copy of original documentation. Once we have verified the fault, we will issue a replacement or full refund to you via your original payment method.

Items faulty in warranty period

If any of your purchases develop a fault within its warranty period it will need to be returned. Once the fault has been verified, a repair or exchange of goods will be issued. If goods are found to be in good working order a testing/administration charge of 15 + VAT and return postage will be made to the customer.

Items ordered in error

If an item has been ordered in error, you should inform us within 14 days of delivery. We will not accept returned goods without prior consent except under guarantee. A minimum restocking/administration charge of 5 + VAT will be made on returned goods.

Returns We want you to be happy with your purchase from Electrex World Limited however there may be certain instances when products may need to be returned.

International Returns

International returns must be marked as 'Return - Failed Sale on any customs documentation. If there are any customs fees to pay, we will deduct these from your refund/credit.

Notes

  1. All returns must be accompanied by a copy of the original invoice and a completed returns form which can be downloaded using the following link:
    RETURNS FORM
  2. Returns take approximately five business days to process upon receipt of the item.
  3. We are not responsible for the loss or damage of items during their return. Please note that the customer has a duty of care whilst the goods are in their possession and that they should be thoughtfully packaged for the return shipment.
  4. Buyer is responsible for any shipping charges when returning the item.
  5. When fitting electrical parts these can be damaged by the same faulty electrical system that caused the initial failure and in such circumstances these parts cannot be returned for refund.
  6. No refund can be given If the item is out of warranty, if the item is within warranty but has been subjected to conditions beyond their specification or the item has been fitted/used.

Return Address

Electrex World Limited Units 43-46 Vanalloys Business Park Stoke Row Oxfordshire RG9 5QW

2006-2016 Electrex World Ltd. All rights reserved. Home | Terms & Conditions

Registered in England & Wales Company Registration number 04306310. VAT number 785 299 174.


Internal RotorRO10095.00Product link
StatorEWST-0079-HPI095.00Product link
CDICD068C04182.50Product link
Regulator RectifierRR0254.00Product link
HT CoilHT5530.00Product link
SwitchSW1120.00Product link
HT plugcapPLUGCAP4.00Product link

BSA | Royal Enfield | Triumph | Norton Digital Lighting/Ignition Alternator Kit - STK-102D-DC
BSA | Royal Enfield | Triumph | Norton Digital Lighting/Ignition Alternator Kit - (STK102D)Timing - (STK102D)Remove excess material - (STK102D)Remove excess material - (STK102D)
Remove excess material - (STK102D)Wiring diagram using our capacitor instead of  a battery

BSA | Royal Enfield | Triumph | Norton Digital Lighting/Ignition Alternator Kit - STK-102D-DC


Price (excl. vat): 235.00
(282.00 Including VAT at 20%)

Many of these items are made to order.
You will be advised on any delay.

Stator Kit Fits:

BSA:A50
A65
Norton:AtlasCommandoDominator
Royal Enfield:Interceptor
Triumph:3TA
5TA
T100
T110
T120
(not T140)

NOTE: A battery is NOT required to run the ignition or lighting but advantageous for brakelight or indicators.

Total output is 65 watts, 100% is supplied to the bike as DC to charge or capacitor pack (our part PP12).


OPTIONAL KEY SWITCH (SW01K): Recommended when handlebar switch is not used. Switch has 2 sets of change over contacts allowing the black/white stop wire from the CDI to be connected to earth which will cut the ignition. The second set of contacts can be used to control lights - see related products below.


  • LED lighting requires DC power, these use a lot less energy than conventional bulbs and are much more reliable, so we highly recommend using them.
  • Replacement for Lucas or Wipac alternator. Complete digital self generating and alternator, pre-programmed advance curve gives optimum performance for the 4 stroke twin engine.
  • No battery, contact breaker assembly or distributor required for the ignition.
  • Simple timing set-up align marks on the rotor and stator.
  • Supplied regulator/rectifier is 6v or 12v selectable by cutting the blue wire. Output is DC to charge a battery - see notes about battery in Fitting Instructions tab above.
  • The battery can be replaced with a PP12 capacitor pack - see related products below, this is more reliable than a battery but has limited energy storage. See notes about battery in Fitting Instructions tab above.
  • Rotor is supplied with a taper locking collet, enabling the rotor to be fitted on the 3/4" crankshaft without the need for a woodruff key, this allows system to be fitted even if keyway is damaged. The rotor can be fixed in any position making timing easier to set up.
  • Manufactured in the UK.

Click the following link to download fitting instructions:
Download Instructions       Troubleshooting Common Problems

Warranty

  • Road bike components - one year from the date of purchase
  • Off-road bike components - six months from the date of purchase
  • Race bike components - no warranty in line with industry practice
  • Any warranty does not cover defects due to abuse, misuse, improper installation or modification.

Transit

If any items were damaged in transit, we ask that you report it to us within 7 working days. On their return they can be replaced or a refund issued via your original payment method.

Faulty on arrival

If your items are faulty on arrival, you should inform us within 14 days of delivery. Items should be returned in their original packaging when possible with a copy of original documentation. Once we have verified the fault, we will issue a replacement or full refund to you via your original payment method.

Items faulty in warranty period

If any of your purchases develop a fault within its warranty period it will need to be returned. Once the fault has been verified, a repair or exchange of goods will be issued. If goods are found to be in good working order a testing/administration charge of 15 + VAT and return postage will be made to the customer.

Items ordered in error

If an item has been ordered in error, you should inform us within 14 days of delivery. We will not accept returned goods without prior consent except under guarantee. A minimum restocking/administration charge of 5 + VAT will be made on returned goods.

Returns We want you to be happy with your purchase from Electrex World Limited however there may be certain instances when products may need to be returned.

International Returns

International returns must be marked as 'Return - Failed Sale on any customs documentation. If there are any customs fees to pay, we will deduct these from your refund/credit.

Notes

  1. All returns must be accompanied by a copy of the original invoice and a completed returns form which can be downloaded using the following link:
    RETURNS FORM
  2. Returns take approximately five business days to process upon receipt of the item.
  3. We are not responsible for the loss or damage of items during their return. Please note that the customer has a duty of care whilst the goods are in their possession and that they should be thoughtfully packaged for the return shipment.
  4. Buyer is responsible for any shipping charges when returning the item.
  5. When fitting electrical parts these can be damaged by the same faulty electrical system that caused the initial failure and in such circumstances these parts cannot be returned for refund.
  6. No refund can be given If the item is out of warranty, if the item is within warranty but has been subjected to conditions beyond their specification or the item has been fitted/used.

Return Address

Electrex World Limited Units 43-46 Vanalloys Business Park Stoke Row Oxfordshire RG9 5QW

2006-2016 Electrex World Ltd. All rights reserved. Home | Terms & Conditions

Registered in England & Wales Company Registration number 04306310. VAT number 785 299 174.


Internal RotorRO10095.00Product link
StatorEWST-0079-HPI095.00Product link
CDICD068C04182.50Product link
Regulator RectifierRR0254.00Product link
HT CoilHT245.00Product link
SwitchSW1120.00Product link
HT plugcapPLUGCAP4.00Product link

Ariel Arrow Twin Cylinder 2 stroke Ignition Alternator Kit - STK-104

Ariel Arrow Twin Cylinder 2 stroke Ignition Alternator Kit - STK-104


Price (excl. vat): 235.00
(282.00 Including VAT at 20%)

Many of these items are made to order.
You will be advised on any delay.

Stator Kit Fits:

Ariel Arrow:Twin cylinder 2 stroke

NOTE: A battery is NOT required to run the ignition or lighting but advantageous for brakelight or indicators.


  • Replacement for original alternator and ignition. Complete digital self generating ignition and alternator, pre-programmed advance curve gives optimum performance for the 4 stroke twin engine.
  • No battery, contact breaker assembly or distributor required for the ignition.
  • Simple timing set-up align marks on the rotor and stator.
  • Single phase alternator 65w output with combined regulator and regulator/rectifier. This gives a controlled 12v AC output to the lighting circuit to prevent bulb failure + 12v DC output to a battery if fitted. The battery can be replaced with a capacitor pack if required, this gives greater reliability but has limited energy storage capability.
  • Manufactured in the UK.

Click the following link to download fitting instructions:
Download Instructions

Warranty

  • Road bike components - one year from the date of purchase
  • Off-road bike components - six months from the date of purchase
  • Race bike components - no warranty in line with industry practice
  • Any warranty does not cover defects due to abuse, misuse, improper installation or modification.

Transit

If any items were damaged in transit, we ask that you report it to us within 7 working days. On their return they can be replaced or a refund issued via your original payment method.

Faulty on arrival

If your items are faulty on arrival, you should inform us within 14 days of delivery. Items should be returned in their original packaging when possible with a copy of original documentation. Once we have verified the fault, we will issue a replacement or full refund to you via your original payment method.

Items faulty in warranty period

If any of your purchases develop a fault within its warranty period it will need to be returned. Once the fault has been verified, a repair or exchange of goods will be issued. If goods are found to be in good working order a testing/administration charge of 15 + VAT and return postage will be made to the customer.

Items ordered in error

If an item has been ordered in error, you should inform us within 14 days of delivery. We will not accept returned goods without prior consent except under guarantee. A minimum restocking/administration charge of 5 + VAT will be made on returned goods.

Returns We want you to be happy with your purchase from Electrex World Limited however there may be certain instances when products may need to be returned.

International Returns

International returns must be marked as 'Return - Failed Sale on any customs documentation. If there are any customs fees to pay, we will deduct these from your refund/credit.

Notes

  1. All returns must be accompanied by a copy of the original invoice and a completed returns form which can be downloaded using the following link:
    RETURNS FORM
  2. Returns take approximately five business days to process upon receipt of the item.
  3. We are not responsible for the loss or damage of items during their return. Please note that the customer has a duty of care whilst the goods are in their possession and that they should be thoughtfully packaged for the return shipment.
  4. Buyer is responsible for any shipping charges when returning the item.
  5. When fitting electrical parts these can be damaged by the same faulty electrical system that caused the initial failure and in such circumstances these parts cannot be returned for refund.
  6. No refund can be given If the item is out of warranty, if the item is within warranty but has been subjected to conditions beyond their specification or the item has been fitted/used.

Return Address

Electrex World Limited Units 43-46 Vanalloys Business Park Stoke Row Oxfordshire RG9 5QW

2006-2016 Electrex World Ltd. All rights reserved. Home | Terms & Conditions

Registered in England & Wales Company Registration number 04306310. VAT number 785 299 174.


Internal RotorRO10095.00Product link
StatorEWST-0079-001095.00Product link
CDICD001071.50Product link
Regulator RectifierRR0254.00Product link
HT CoilHT245.00Product link
SwitchSW1120.00Product link
HT plugcapPLUGCAP4.00Product link

Triumph Twins T140, T120, TR6, 5TA, 3TA Digital Ignition - STK-105
Triumph Twins T140, T120, TR6, 5TA, 3TA Digital Ignition - STK-105STK-105 wiring diagram

Triumph Twins T140, T120, TR6, 5TA, 3TA Digital Ignition - STK-105


Price (excl. vat): 185.00
(222.00 Including VAT at 20%)

Stator Kit Fits:

Triumph Twins:T140
TR120
TR6
5TA
3TA

NOTE: NEW DIGITAL IGNITION FOR ALL TRIUMPH TWINS


  • Digital electronic ignition system replacing the original contact breakers and advance unit.
  • The system has very low current consumption compared to other available 12v conventional electronic kits.
  • The CDI is very efficient as the spark duration is extremely short. A very high HT voltage up to 40kv can be produced.
  • The pulsar ring is engraved with degree markings to enable easy timing set up with the piston at TDC. An LED mounted on the pulsar ring indicates point at which the spark occurs and also presence of a suitable power supply.
  • Manufactured in the UK.

Click the following link to download fitting instructions:
Download Instructions

Warranty

  • Road bike components - one year from the date of purchase
  • Off-road bike components - six months from the date of purchase
  • Race bike components - no warranty in line with industry practice
  • Any warranty does not cover defects due to abuse, misuse, improper installation or modification.

Transit

If any items were damaged in transit, we ask that you report it to us within 7 working days. On their return they can be replaced or a refund issued via your original payment method.

Faulty on arrival

If your items are faulty on arrival, you should inform us within 14 days of delivery. Items should be returned in their original packaging when possible with a copy of original documentation. Once we have verified the fault, we will issue a replacement or full refund to you via your original payment method.

Items faulty in warranty period

If any of your purchases develop a fault within its warranty period it will need to be returned. Once the fault has been verified, a repair or exchange of goods will be issued. If goods are found to be in good working order a testing/administration charge of 15 + VAT and return postage will be made to the customer.

Items ordered in error

If an item has been ordered in error, you should inform us within 14 days of delivery. We will not accept returned goods without prior consent except under guarantee. A minimum restocking/administration charge of 5 + VAT will be made on returned goods.

Returns We want you to be happy with your purchase from Electrex World Limited however there may be certain instances when products may need to be returned.

International Returns

International returns must be marked as 'Return - Failed Sale on any customs documentation. If there are any customs fees to pay, we will deduct these from your refund/credit.

Notes

  1. All returns must be accompanied by a copy of the original invoice and a completed returns form which can be downloaded using the following link:
    RETURNS FORM
  2. Returns take approximately five business days to process upon receipt of the item.
  3. We are not responsible for the loss or damage of items during their return. Please note that the customer has a duty of care whilst the goods are in their possession and that they should be thoughtfully packaged for the return shipment.
  4. Buyer is responsible for any shipping charges when returning the item.
  5. When fitting electrical parts these can be damaged by the same faulty electrical system that caused the initial failure and in such circumstances these parts cannot be returned for refund.
  6. No refund can be given If the item is out of warranty, if the item is within warranty but has been subjected to conditions beyond their specification or the item has been fitted/used.

Return Address

Electrex World Limited Units 43-46 Vanalloys Business Park Stoke Row Oxfordshire RG9 5QW

2006-2016 Electrex World Ltd. All rights reserved. Home | Terms & Conditions

Registered in England & Wales Company Registration number 04306310. VAT number 785 299 174.


CDICD7006-10110.00Product link
Hall Effect RotorHRO101-0325.00Product link
Hall Effect RingHBP601-01-1045.00Product link
HT CoilHT245.00Product link
HT plugcapPLUGCAP4.00Product link

Ordered the STK106 for my Norton Commando on Thursday morning and it arrived well packaged the next day, very helpful lady on the end of the phone.


Fitting the kit was dead straight forward apart from a timing issue which was entirely down to my own stupidity using the wrong marks, an email was answered promptly although I had realised my mistake by then. The only other very slight issue was that I needed to file out the supplied coil bracket a little for the coil to fit but that took seconds.


Previously fitted with a Boyer system the bike had been hard to start and cutting out when hot. Now it starts so easily that it seems impossible for a big twin, hot or cold it takes half a kick, ticks over very much better and pulls well throughout the rev range.


A superb bit of kit at a bargain price when you see what is included, very impressed.



June 2021


BSA A50/A65 | Norton: Atlas, Commando, Dominator | Royal Enfield Interceptor Digital Ignition for Twins - STK-106
BSA A50/A65 | Norton: Atlas, Commando, Dominator | Royal Enfield Interceptor Digital Ignition for Twins - STK-106Hall effect rotor detail - (STK-106)STK-106 wiring diagram

BSA A50/A65 | Norton: Atlas, Commando, Dominator | Royal Enfield Interceptor Digital Ignition for Twins - STK-106


Price (excl. vat): 185.00
(222.00 Including VAT at 20%)

Stator Kit Fits:

BSA:A50
A65
Norton:AtlasCommandoDominator
Royal Enfield:Interceptor

NOTE: NEW DIGITAL IGNITION - TWINS

NOTE: For Singles version please refer to STK-107 in related products below.


  • Digital electronic ignition system replacing the original contact breakers and advance unit.
  • The system has very low current consumption compared to other available 12v conventional electronic kits.
  • The CDI is very efficient as the spark duration is extremely short. A very high HT voltage up to 40kv can be produced.
  • The pulsar ring is engraved with degree markings to enable easy timing set up with the piston at TDC. An LED mounted on the pulsar ring indicates point at which the spark occurs and also presence of a suitable power supply.
  • Manufactured in the UK.

Click the following link to download fitting instructions:
Download Instructions

Warranty

  • Road bike components - one year from the date of purchase
  • Off-road bike components - six months from the date of purchase
  • Race bike components - no warranty in line with industry practice
  • Any warranty does not cover defects due to abuse, misuse, improper installation or modification.

Transit

If any items were damaged in transit, we ask that you report it to us within 7 working days. On their return they can be replaced or a refund issued via your original payment method.

Faulty on arrival

If your items are faulty on arrival, you should inform us within 14 days of delivery. Items should be returned in their original packaging when possible with a copy of original documentation. Once we have verified the fault, we will issue a replacement or full refund to you via your original payment method.

Items faulty in warranty period

If any of your purchases develop a fault within its warranty period it will need to be returned. Once the fault has been verified, a repair or exchange of goods will be issued. If goods are found to be in good working order a testing/administration charge of 15 + VAT and return postage will be made to the customer.

Items ordered in error

If an item has been ordered in error, you should inform us within 14 days of delivery. We will not accept returned goods without prior consent except under guarantee. A minimum restocking/administration charge of 5 + VAT will be made on returned goods.

Returns We want you to be happy with your purchase from Electrex World Limited however there may be certain instances when products may need to be returned.

International Returns

International returns must be marked as 'Return - Failed Sale on any customs documentation. If there are any customs fees to pay, we will deduct these from your refund/credit.

Notes

  1. All returns must be accompanied by a copy of the original invoice and a completed returns form which can be downloaded using the following link:
    RETURNS FORM
  2. Returns take approximately five business days to process upon receipt of the item.
  3. We are not responsible for the loss or damage of items during their return. Please note that the customer has a duty of care whilst the goods are in their possession and that they should be thoughtfully packaged for the return shipment.
  4. Buyer is responsible for any shipping charges when returning the item.
  5. When fitting electrical parts these can be damaged by the same faulty electrical system that caused the initial failure and in such circumstances these parts cannot be returned for refund.
  6. No refund can be given If the item is out of warranty, if the item is within warranty but has been subjected to conditions beyond their specification or the item has been fitted/used.

Return Address

Electrex World Limited Units 43-46 Vanalloys Business Park Stoke Row Oxfordshire RG9 5QW

2006-2016 Electrex World Ltd. All rights reserved. Home | Terms & Conditions

Registered in England & Wales Company Registration number 04306310. VAT number 785 299 174.


CDICD7006-10110.00Product link
Hall Effect RotorHRO101-0325.00Product link
Hall Effect RingHBP101-03-1045.00Product link
HT CoilHT245.00Product link
HT plugcapPLUGCAP4.00Product link

Ordered the STK106 for my Norton Commando on Thursday morning and it arrived well packaged the next day, very helpful lady on the end of the phone.


Fitting the kit was dead straight forward apart from a timing issue which was entirely down to my own stupidity using the wrong marks, an email was answered promptly although I had realised my mistake by then. The only other very slight issue was that I needed to file out the supplied coil bracket a little for the coil to fit but that took seconds.


Previously fitted with a Boyer system the bike had been hard to start and cutting out when hot. Now it starts so easily that it seems impossible for a big twin, hot or cold it takes half a kick, ticks over very much better and pulls well throughout the rev range.


A superb bit of kit at a bargain price when you see what is included, very impressed.



June 2021


BSA B25/40/44/50, C15 | Matchless 350 | Royal Enfield 350 Bullet CCM Digital Ignition for Singles - STK-107
BSA B25/40/44/50, C15 | Matchless 350 | Royal Enfield 350 Bullet Digital Ignition for Singles - (STK-107)Hall effect rotor detail - (STK-107)STK-107 wiring diagram

BSA B25/40/44/50, C15 | Matchless 350 | Royal Enfield 350 Bullet CCM Digital Ignition for Singles - STK-107


Price (excl. vat): 150.00
(180.00 Including VAT at 20%)

Many of these items are made to order.
You will be advised on any delay.

Stator Kit Fits:

BSA:B25
B40
B44
B50
C15
CCM:
Matchless:350
Royal Enfield:350 Bullet

NOTE: NEW DIGITAL IGNITION - SINGLES

NOTE: For Twin version please refer to STK-106 in related products below.


  • Digital electronic ignition system replacing the original contact breakers and advance unit.
  • The system has very low current consumption compared to other available 12v conventional electronic kits.
  • The CDI is very efficient as the spark duration is extremely short. A very high HT voltage up to 40kv can be produced.
  • The pulsar ring is engraved with degree markings to enable easy timing set up with the piston at TDC. An LED mounted on the pulsar ring indicates point at which the spark occurs and also presence of a suitable power supply.
  • Manufactured in the UK.

Click the following link to download fitting instructions:
Download Instructions

Warranty

  • Road bike components - one year from the date of purchase
  • Off-road bike components - six months from the date of purchase
  • Race bike components - no warranty in line with industry practice
  • Any warranty does not cover defects due to abuse, misuse, improper installation or modification.

Transit

If any items were damaged in transit, we ask that you report it to us within 7 working days. On their return they can be replaced or a refund issued via your original payment method.

Faulty on arrival

If your items are faulty on arrival, you should inform us within 14 days of delivery. Items should be returned in their original packaging when possible with a copy of original documentation. Once we have verified the fault, we will issue a replacement or full refund to you via your original payment method.

Items faulty in warranty period

If any of your purchases develop a fault within its warranty period it will need to be returned. Once the fault has been verified, a repair or exchange of goods will be issued. If goods are found to be in good working order a testing/administration charge of 15 + VAT and return postage will be made to the customer.

Items ordered in error

If an item has been ordered in error, you should inform us within 14 days of delivery. We will not accept returned goods without prior consent except under guarantee. A minimum restocking/administration charge of 5 + VAT will be made on returned goods.

Returns We want you to be happy with your purchase from Electrex World Limited however there may be certain instances when products may need to be returned.

International Returns

International returns must be marked as 'Return - Failed Sale on any customs documentation. If there are any customs fees to pay, we will deduct these from your refund/credit.

Notes

  1. All returns must be accompanied by a copy of the original invoice and a completed returns form which can be downloaded using the following link:
    RETURNS FORM
  2. Returns take approximately five business days to process upon receipt of the item.
  3. We are not responsible for the loss or damage of items during their return. Please note that the customer has a duty of care whilst the goods are in their possession and that they should be thoughtfully packaged for the return shipment.
  4. Buyer is responsible for any shipping charges when returning the item.
  5. When fitting electrical parts these can be damaged by the same faulty electrical system that caused the initial failure and in such circumstances these parts cannot be returned for refund.
  6. No refund can be given If the item is out of warranty, if the item is within warranty but has been subjected to conditions beyond their specification or the item has been fitted/used.

Return Address

Electrex World Limited Units 43-46 Vanalloys Business Park Stoke Row Oxfordshire RG9 5QW

2006-2016 Electrex World Ltd. All rights reserved. Home | Terms & Conditions

Registered in England & Wales Company Registration number 04306310. VAT number 785 299 174.


CDICD7007-10104.50Product link
Hall Effect RotorHRO101-0325.00Product link
Hall Effect RingHBP101-03-1045.00Product link
HT plugcapPLUGCAP4.00Product link

Royal Enfield Crusader 250, Continental GT 250 Ignition & Lighting Alternator Kit - STK-109D
Royal Enfield Crusader 250 Ignition & Lighting Alternator Kit - (STK-109D)Wiring diagram - (STK-109D)NOTE: example only, for the Crusader this will be on the right hand side of the engine - (STK-109D)

Royal Enfield Crusader 250, Continental GT 250 Ignition & Lighting Alternator Kit - STK-109D


Price (excl. vat): 235.00
(282.00 Including VAT at 20%)

Many of these items are made to order.
You will be advised on any delay.

Stator Kit Fits:

Royal Enfield:BulletCrusader 250
Continental GT 250

NOTE: This kit only fits Crusader and Continental GT 250 models and mounts on the right hand side of the engine.


  • Combined self generating CDI ignition + alternator output for lighting/battery charging.
  • System is 12v only with a regulator supplying controlled 12v AC for lighting + 12v DC for battery charging if required.
  • Replaces original Lucas/Wipac alternator and rotor. Points, distributor and battery are not required.
  • Keyless rotor fitting onto crankshaft. This uses a taper collet to lock the rotor key securely onto the crank. Advantages over a woodruff key and keyway are infinite positioning of the rotor for ignition timing. Can be used on a worn crank or damaged keyway.
  • Blue to White source coil: 290ohms.
  • Easy starting hot or cold.
  • Manufactured in the UK.

Click the following link to download fitting instructions:
Download Instructions

Warranty

  • Road bike components - one year from the date of purchase
  • Off-road bike components - six months from the date of purchase
  • Race bike components - no warranty in line with industry practice
  • Any warranty does not cover defects due to abuse, misuse, improper installation or modification.

Transit

If any items were damaged in transit, we ask that you report it to us within 7 working days. On their return they can be replaced or a refund issued via your original payment method.

Faulty on arrival

If your items are faulty on arrival, you should inform us within 14 days of delivery. Items should be returned in their original packaging when possible with a copy of original documentation. Once we have verified the fault, we will issue a replacement or full refund to you via your original payment method.

Items faulty in warranty period

If any of your purchases develop a fault within its warranty period it will need to be returned. Once the fault has been verified, a repair or exchange of goods will be issued. If goods are found to be in good working order a testing/administration charge of 15 + VAT and return postage will be made to the customer.

Items ordered in error

If an item has been ordered in error, you should inform us within 14 days of delivery. We will not accept returned goods without prior consent except under guarantee. A minimum restocking/administration charge of 5 + VAT will be made on returned goods.

Returns We want you to be happy with your purchase from Electrex World Limited however there may be certain instances when products may need to be returned.

International Returns

International returns must be marked as 'Return - Failed Sale on any customs documentation. If there are any customs fees to pay, we will deduct these from your refund/credit.

Notes

  1. All returns must be accompanied by a copy of the original invoice and a completed returns form which can be downloaded using the following link:
    RETURNS FORM
  2. Returns take approximately five business days to process upon receipt of the item.
  3. We are not responsible for the loss or damage of items during their return. Please note that the customer has a duty of care whilst the goods are in their possession and that they should be thoughtfully packaged for the return shipment.
  4. Buyer is responsible for any shipping charges when returning the item.
  5. When fitting electrical parts these can be damaged by the same faulty electrical system that caused the initial failure and in such circumstances these parts cannot be returned for refund.
  6. No refund can be given If the item is out of warranty, if the item is within warranty but has been subjected to conditions beyond their specification or the item has been fitted/used.

Return Address

Electrex World Limited Units 43-46 Vanalloys Business Park Stoke Row Oxfordshire RG9 5QW

2006-2016 Electrex World Ltd. All rights reserved. Home | Terms & Conditions

Registered in England & Wales Company Registration number 04306310. VAT number 785 299 174.


External RotorRO10995.00Product link
StatorEWST-0079-HPI095.00Product link
CDICD068C04182.50Product link
Regulator RectifierRR0254.00Product link
HT CoilHT5530.00Product link
SwitchSW1120.00Product link
HT plugcapPLUGCAP4.00Product link

People who bought this also bought:

  1. Powerpack capacitor for DC Lighting - PP12 (Ref: PP12)

Maico 250, 400, 440, 490 Internal Rotor Stator Kit - STK-112
Maico 250, 440, 490 Internal Rotor Stator Kit - (STK-112)Crank End Measurement - (STK-112)STK-112 - Wiring diagram

Maico 250, 400, 440, 490 Internal Rotor Stator Kit - STK-112


Price (excl. vat): 185.00
(222.00 Including VAT at 20%)

Many of these items are made to order.
You will be advised on any delay.

Stator Kit Fits:

Maico:250400
440
490

NOTE: The original unit is ignition only as is the STK-112 and has no facility for lighting.


  • For rotor/crank measurement please see diagram above.
  • Complete kit to replace the original Bosch points system or Motoplat electronic system.
  • Timing curve designed to give maximum performance on the 2-stroke engine.
  • Easy fitting and set-up.
  • Reliable, low cost kit.
  • Manufactured in the UK.

Click the following link to download fitting instructions:
Download Instructions

Warranty

  • Road bike components - one year from the date of purchase
  • Off-road bike components - six months from the date of purchase
  • Race bike components - no warranty in line with industry practice
  • Any warranty does not cover defects due to abuse, misuse, improper installation or modification.

Transit

If any items were damaged in transit, we ask that you report it to us within 7 working days. On their return they can be replaced or a refund issued via your original payment method.

Faulty on arrival

If your items are faulty on arrival, you should inform us within 14 days of delivery. Items should be returned in their original packaging when possible with a copy of original documentation. Once we have verified the fault, we will issue a replacement or full refund to you via your original payment method.

Items faulty in warranty period

If any of your purchases develop a fault within its warranty period it will need to be returned. Once the fault has been verified, a repair or exchange of goods will be issued. If goods are found to be in good working order a testing/administration charge of 15 + VAT and return postage will be made to the customer.

Items ordered in error

If an item has been ordered in error, you should inform us within 14 days of delivery. We will not accept returned goods without prior consent except under guarantee. A minimum restocking/administration charge of 5 + VAT will be made on returned goods.

Returns We want you to be happy with your purchase from Electrex World Limited however there may be certain instances when products may need to be returned.

International Returns

International returns must be marked as 'Return - Failed Sale on any customs documentation. If there are any customs fees to pay, we will deduct these from your refund/credit.

Notes

  1. All returns must be accompanied by a copy of the original invoice and a completed returns form which can be downloaded using the following link:
    RETURNS FORM
  2. Returns take approximately five business days to process upon receipt of the item.
  3. We are not responsible for the loss or damage of items during their return. Please note that the customer has a duty of care whilst the goods are in their possession and that they should be thoughtfully packaged for the return shipment.
  4. Buyer is responsible for any shipping charges when returning the item.
  5. When fitting electrical parts these can be damaged by the same faulty electrical system that caused the initial failure and in such circumstances these parts cannot be returned for refund.
  6. No refund can be given If the item is out of warranty, if the item is within warranty but has been subjected to conditions beyond their specification or the item has been fitted/used.

Return Address

Electrex World Limited Units 43-46 Vanalloys Business Park Stoke Row Oxfordshire RG9 5QW

2006-2016 Electrex World Ltd. All rights reserved. Home | Terms & Conditions

Registered in England & Wales Company Registration number 04306310. VAT number 785 299 174.


Internal RotorIR1255.00Product link
StatorEWST-0090-3WAY-AMP075.00Product link
CDICD68065.00Product link
HT CoilHT5530.00Product link
SwitchSW1120.00Product link
HT plugcapPLUGCAP4.00Product link

Maico 400, 440, 490 External Rotor Kit - STK-113/TC
Maico 490 External Rotor Kit - (STK-113)Crank End Measurement - (STK-113)STK-113-TC Wiring Diagram

Maico 400, 440, 490 External Rotor Kit - STK-113/TC


Price (excl. vat): 225.00
(270.00 Including VAT at 20%)

Many of these items are made to order.
You will be advised on any delay.

Stator Kit Fits:

Maico:400
440
490
  • For rotor/crank measurement please see diagram above.
  • CDI ignition for reliable easy starting.
  • Specific electronic advance curve for Maico models.
  • External rotor for flywheel inertia, weight 1.15kg.
  • Rotor engraved with degree markings to enable easy timing set-up.
  • Optional puller and holder also available - see related products below.
  • Manufactured in the UK.

Click the following link to download fitting instructions:
Download Instructions

Warranty

  • Road bike components - one year from the date of purchase
  • Off-road bike components - six months from the date of purchase
  • Race bike components - no warranty in line with industry practice
  • Any warranty does not cover defects due to abuse, misuse, improper installation or modification.

Transit

If any items were damaged in transit, we ask that you report it to us within 7 working days. On their return they can be replaced or a refund issued via your original payment method.

Faulty on arrival

If your items are faulty on arrival, you should inform us within 14 days of delivery. Items should be returned in their original packaging when possible with a copy of original documentation. Once we have verified the fault, we will issue a replacement or full refund to you via your original payment method.

Items faulty in warranty period

If any of your purchases develop a fault within its warranty period it will need to be returned. Once the fault has been verified, a repair or exchange of goods will be issued. If goods are found to be in good working order a testing/administration charge of 15 + VAT and return postage will be made to the customer.

Items ordered in error

If an item has been ordered in error, you should inform us within 14 days of delivery. We will not accept returned goods without prior consent except under guarantee. A minimum restocking/administration charge of 5 + VAT will be made on returned goods.

Returns We want you to be happy with your purchase from Electrex World Limited however there may be certain instances when products may need to be returned.

International Returns

International returns must be marked as 'Return - Failed Sale on any customs documentation. If there are any customs fees to pay, we will deduct these from your refund/credit.

Notes

  1. All returns must be accompanied by a copy of the original invoice and a completed returns form which can be downloaded using the following link:
    RETURNS FORM
  2. Returns take approximately five business days to process upon receipt of the item.
  3. We are not responsible for the loss or damage of items during their return. Please note that the customer has a duty of care whilst the goods are in their possession and that they should be thoughtfully packaged for the return shipment.
  4. Buyer is responsible for any shipping charges when returning the item.
  5. When fitting electrical parts these can be damaged by the same faulty electrical system that caused the initial failure and in such circumstances these parts cannot be returned for refund.
  6. No refund can be given If the item is out of warranty, if the item is within warranty but has been subjected to conditions beyond their specification or the item has been fitted/used.

Return Address

Electrex World Limited Units 43-46 Vanalloys Business Park Stoke Row Oxfordshire RG9 5QW

2006-2016 Electrex World Ltd. All rights reserved. Home | Terms & Conditions

Registered in England & Wales Company Registration number 04306310. VAT number 785 299 174.


External RotorRO11395.00Product link
StatorST113-TC95.00Product link
HT CoilHT5530.00Product link
CDICD001071.50Product link
SwitchSW1120.00Product link
HT plugcapPLUGCAP4.00Product link

First time ever at Lyng and in some proper tough conditions. Top Evo boys made it look easy but I felt like I was on a WW2 tank! Held together brilliant and ran amazing with the all new Electrex unit.


Winner

Maico 250, 400 CDI Ignition System - STK-114
Maico 250, 400 CDI Ignition System - (STK-114)Internal Crankshaft - (STK-114)STK-114 - Wiring Diagram

Maico 250, 400 CDI Ignition System - STK-114


Price (excl. vat): 185.00
(222.00 Including VAT at 20%)

Many of these items are made to order.
You will be advised on any delay.

Stator Kit Fits:

Maico:250400
  • Rotor/crank measurement 17mm.
  • CDI ignition system.
  • Internal thread on crankshaft.
  • Replaces an original Bosch ignition. This early model has an internal threaded crankshaft.
  • Rotor engraved with degree markings to enable easy timing set-up.
  • Race ignition system, high spark energy, self generating CDI, no battery, points etc.
  • Easy timing set-up, adjustment is via slotted holes with setting markings shown on rotor and stator.
  • Direct fitting stator and rotor, no exchange or machining required.
  • The spark energy and the timing are produced by the stator coil. The exact advance curve is determined by the stator + CDI combination.
  • Fits early models with 'internal' threaded crankshaft.
  • Manufactured in the UK.

Click the following link to download fitting instructions:
Download Instructions

Warranty

  • Road bike components - one year from the date of purchase
  • Off-road bike components - six months from the date of purchase
  • Race bike components - no warranty in line with industry practice
  • Any warranty does not cover defects due to abuse, misuse, improper installation or modification.

Transit

If any items were damaged in transit, we ask that you report it to us within 7 working days. On their return they can be replaced or a refund issued via your original payment method.

Faulty on arrival

If your items are faulty on arrival, you should inform us within 14 days of delivery. Items should be returned in their original packaging when possible with a copy of original documentation. Once we have verified the fault, we will issue a replacement or full refund to you via your original payment method.

Items faulty in warranty period

If any of your purchases develop a fault within its warranty period it will need to be returned. Once the fault has been verified, a repair or exchange of goods will be issued. If goods are found to be in good working order a testing/administration charge of 15 + VAT and return postage will be made to the customer.

Items ordered in error

If an item has been ordered in error, you should inform us within 14 days of delivery. We will not accept returned goods without prior consent except under guarantee. A minimum restocking/administration charge of 5 + VAT will be made on returned goods.

Returns We want you to be happy with your purchase from Electrex World Limited however there may be certain instances when products may need to be returned.

International Returns

International returns must be marked as 'Return - Failed Sale on any customs documentation. If there are any customs fees to pay, we will deduct these from your refund/credit.

Notes

  1. All returns must be accompanied by a copy of the original invoice and a completed returns form which can be downloaded using the following link:
    RETURNS FORM
  2. Returns take approximately five business days to process upon receipt of the item.
  3. We are not responsible for the loss or damage of items during their return. Please note that the customer has a duty of care whilst the goods are in their possession and that they should be thoughtfully packaged for the return shipment.
  4. Buyer is responsible for any shipping charges when returning the item.
  5. When fitting electrical parts these can be damaged by the same faulty electrical system that caused the initial failure and in such circumstances these parts cannot be returned for refund.
  6. No refund can be given If the item is out of warranty, if the item is within warranty but has been subjected to conditions beyond their specification or the item has been fitted/used.

Return Address

Electrex World Limited Units 43-46 Vanalloys Business Park Stoke Row Oxfordshire RG9 5QW

2006-2016 Electrex World Ltd. All rights reserved. Home | Terms & Conditions

Registered in England & Wales Company Registration number 04306310. VAT number 785 299 174.


Internal RotorIR1355.00Product link
StatorEWST-0090-3WAY-AMP075.00Product link
CDICD68065.00Product link
HT CoilHT5530.00Product link
SwitchSW1120.00Product link
HT plugcapPLUGCAP4.00Product link

Honda CR250, Red Rocket CDI Ignition System - STK-121

Honda CR250, Red Rocket CDI Ignition System - STK-121


Price (excl. vat): 185.00
(222.00 Including VAT at 20%)

Many of these items are made to order.
You will be advised on any delay.

Stator Kit Fits:

Honda:CR250Red Rocket

NOTE: This kit is NOT suitable for CR250R Elsinore, or a Red Rocket where the stator is mounted in the cover


  • CDI ignition system.
  • Race ignition system, high spark energy, self generating CDI, no battery, points etc.
  • Easy timing set-up, adjustment is via slotted holes with setting markings shown on the rotor and stator.
  • Direct fitting stator and rotor, no exchange or machining required.
  • The spark energy and the timing are produced by the stator coil. The exact advance curve is determined by the stator + CDI combination.
  • Manufactured in the UK.

Click the following link to download fitting instructions:
Download Instructions

Warranty

  • Road bike components - one year from the date of purchase
  • Off-road bike components - six months from the date of purchase
  • Race bike components - no warranty in line with industry practice
  • Any warranty does not cover defects due to abuse, misuse, improper installation or modification.

Transit

If any items were damaged in transit, we ask that you report it to us within 7 working days. On their return they can be replaced or a refund issued via your original payment method.

Faulty on arrival

If your items are faulty on arrival, you should inform us within 14 days of delivery. Items should be returned in their original packaging when possible with a copy of original documentation. Once we have verified the fault, we will issue a replacement or full refund to you via your original payment method.

Items faulty in warranty period

If any of your purchases develop a fault within its warranty period it will need to be returned. Once the fault has been verified, a repair or exchange of goods will be issued. If goods are found to be in good working order a testing/administration charge of 15 + VAT and return postage will be made to the customer.

Items ordered in error

If an item has been ordered in error, you should inform us within 14 days of delivery. We will not accept returned goods without prior consent except under guarantee. A minimum restocking/administration charge of 5 + VAT will be made on returned goods.

Returns We want you to be happy with your purchase from Electrex World Limited however there may be certain instances when products may need to be returned.

International Returns

International returns must be marked as 'Return - Failed Sale on any customs documentation. If there are any customs fees to pay, we will deduct these from your refund/credit.

Notes

  1. All returns must be accompanied by a copy of the original invoice and a completed returns form which can be downloaded using the following link:
    RETURNS FORM
  2. Returns take approximately five business days to process upon receipt of the item.
  3. We are not responsible for the loss or damage of items during their return. Please note that the customer has a duty of care whilst the goods are in their possession and that they should be thoughtfully packaged for the return shipment.
  4. Buyer is responsible for any shipping charges when returning the item.
  5. When fitting electrical parts these can be damaged by the same faulty electrical system that caused the initial failure and in such circumstances these parts cannot be returned for refund.
  6. No refund can be given If the item is out of warranty, if the item is within warranty but has been subjected to conditions beyond their specification or the item has been fitted/used.

Return Address

Electrex World Limited Units 43-46 Vanalloys Business Park Stoke Row Oxfordshire RG9 5QW

2006-2016 Electrex World Ltd. All rights reserved. Home | Terms & Conditions

Registered in England & Wales Company Registration number 04306310. VAT number 785 299 174.


Internal RotorIR1555.00Product link
StatorEWST-012175.00Product link
CDICD68065.00Product link
HT CoilHT5530.00Product link
SwitchSW1120.00Product link
HT plugcapPLUGCAP4.00Product link

KTM 125 Motoplat Replacement Ignition System - STK-123
KTM 125 Motoplat Replacement Ignition System - (STK-123)KTM 125 Motoplat Replacement Ignition System - STK-123 - view 2

KTM 125 Motoplat Replacement Ignition System - STK-123


Price (excl. vat): 185.00
(222.00 Including VAT at 20%)

Many of these items are made to order.
You will be advised on any delay.

IMPORTANT:
Measure original Generator and compare dimensions below before ordering.

Outer Diameter: 84mm     Inner diameter: 29mm     Thickness through hole: 14mm


Stator Kit Fits:

KTM:125
  • CDI ignition system. Motoplat Replacement Ignition.
  • Race ignition system, high spark energy, self generating CDI, no battery, points etc.
  • Easy timing set-up, adjustment is via slotted holes with setting markings shown on the rotor and stator.
  • Direct fitting stator and rotor, no exchange or machining required.
  • The spark energy and the timing are produced by the stator coil. The exact advance curve is determined by the stator + CDI combination.
  • Manufactured in the UK.

Click the following link to download fitting instructions:
Download Instructions

Warranty

  • Road bike components - one year from the date of purchase
  • Off-road bike components - six months from the date of purchase
  • Race bike components - no warranty in line with industry practice
  • Any warranty does not cover defects due to abuse, misuse, improper installation or modification.

Transit

If any items were damaged in transit, we ask that you report it to us within 7 working days. On their return they can be replaced or a refund issued via your original payment method.

Faulty on arrival

If your items are faulty on arrival, you should inform us within 14 days of delivery. Items should be returned in their original packaging when possible with a copy of original documentation. Once we have verified the fault, we will issue a replacement or full refund to you via your original payment method.

Items faulty in warranty period

If any of your purchases develop a fault within its warranty period it will need to be returned. Once the fault has been verified, a repair or exchange of goods will be issued. If goods are found to be in good working order a testing/administration charge of 15 + VAT and return postage will be made to the customer.

Items ordered in error

If an item has been ordered in error, you should inform us within 14 days of delivery. We will not accept returned goods without prior consent except under guarantee. A minimum restocking/administration charge of 5 + VAT will be made on returned goods.

Returns We want you to be happy with your purchase from Electrex World Limited however there may be certain instances when products may need to be returned.

International Returns

International returns must be marked as 'Return - Failed Sale on any customs documentation. If there are any customs fees to pay, we will deduct these from your refund/credit.

Notes

  1. All returns must be accompanied by a copy of the original invoice and a completed returns form which can be downloaded using the following link:
    RETURNS FORM
  2. Returns take approximately five business days to process upon receipt of the item.
  3. We are not responsible for the loss or damage of items during their return. Please note that the customer has a duty of care whilst the goods are in their possession and that they should be thoughtfully packaged for the return shipment.
  4. Buyer is responsible for any shipping charges when returning the item.
  5. When fitting electrical parts these can be damaged by the same faulty electrical system that caused the initial failure and in such circumstances these parts cannot be returned for refund.
  6. No refund can be given If the item is out of warranty, if the item is within warranty but has been subjected to conditions beyond their specification or the item has been fitted/used.

Return Address

Electrex World Limited Units 43-46 Vanalloys Business Park Stoke Row Oxfordshire RG9 5QW

2006-2016 Electrex World Ltd. All rights reserved. Home | Terms & Conditions

Registered in England & Wales Company Registration number 04306310. VAT number 785 299 174.


Internal RotorIR2555.00Product link
StatorEWST-009075.00Product link
CDICD68065.00Product link
HT CoilHT5530.00Product link
SwitchSW1120.00Product link
HT plugcapPLUGCAP4.00Product link

KTM 2 stroke 125, 200, 250, 280, 380 Stator Kit - STK-146
KTM 2 stroke 125, 200, 250, 280, 380 Stator Kit - STK-146Original parts - (STK-146)

KTM 2 stroke 125, 200, 250, 280, 380 Stator Kit - STK-146


Price (excl. vat): 155.00
(186.00 Including VAT at 20%)

Many of these items are made to order.
You will be advised on any delay.

Stator Kit Fits:

KTM:125, 200, 250 EXC, MXC, XC, XC-W (2002-2007)280, 380 SX (2002 - 2009)

Stator (inc. base plate) and rotor


NOTE: You will require a battery or capacitor power pack - see related product below.


  • Replaces original unit.
  • Requires 12v battery or capacitor power pack to be fitted.
  • Ignition is a direct plug-in fitment to original CDI.
  • Manufactured in the UK.

Click the following link to download fitting instructions:
Download Instructions

Warranty

  • Road bike components - one year from the date of purchase
  • Off-road bike components - six months from the date of purchase
  • Race bike components - no warranty in line with industry practice
  • Any warranty does not cover defects due to abuse, misuse, improper installation or modification.

Transit

If any items were damaged in transit, we ask that you report it to us within 7 working days. On their return they can be replaced or a refund issued via your original payment method.

Faulty on arrival

If your items are faulty on arrival, you should inform us within 14 days of delivery. Items should be returned in their original packaging when possible with a copy of original documentation. Once we have verified the fault, we will issue a replacement or full refund to you via your original payment method.

Items faulty in warranty period

If any of your purchases develop a fault within its warranty period it will need to be returned. Once the fault has been verified, a repair or exchange of goods will be issued. If goods are found to be in good working order a testing/administration charge of 15 + VAT and return postage will be made to the customer.

Items ordered in error

If an item has been ordered in error, you should inform us within 14 days of delivery. We will not accept returned goods without prior consent except under guarantee. A minimum restocking/administration charge of 5 + VAT will be made on returned goods.

Returns We want you to be happy with your purchase from Electrex World Limited however there may be certain instances when products may need to be returned.

International Returns

International returns must be marked as 'Return - Failed Sale on any customs documentation. If there are any customs fees to pay, we will deduct these from your refund/credit.

Notes

  1. All returns must be accompanied by a copy of the original invoice and a completed returns form which can be downloaded using the following link:
    RETURNS FORM
  2. Returns take approximately five business days to process upon receipt of the item.
  3. We are not responsible for the loss or damage of items during their return. Please note that the customer has a duty of care whilst the goods are in their possession and that they should be thoughtfully packaged for the return shipment.
  4. Buyer is responsible for any shipping charges when returning the item.
  5. When fitting electrical parts these can be damaged by the same faulty electrical system that caused the initial failure and in such circumstances these parts cannot be returned for refund.
  6. No refund can be given If the item is out of warranty, if the item is within warranty but has been subjected to conditions beyond their specification or the item has been fitted/used.

Return Address

Electrex World Limited Units 43-46 Vanalloys Business Park Stoke Row Oxfordshire RG9 5QW

2006-2016 Electrex World Ltd. All rights reserved. Home | Terms & Conditions

Registered in England & Wales Company Registration number 04306310. VAT number 785 299 174.


External RotorRO814395.00Product link
StatorG146102.00Product link

KTM 2 stroke 125, 200, 250, 280, 380 Hi-power Stator Kit - STK-147
KTM 2 stroke 125, 200, 250, 280, 380 Hi-power Stator Kit - (STK-147)Original parts - (STK-147)Rotor detail - (STK-147)Connectors - (STK-147)

KTM 2 stroke 125, 200, 250, 280, 380 Hi-power Stator Kit - STK-147


Price (excl. vat): 210.00
(252.00 Including VAT at 20%)

Many of these items are made to order.
You will be advised on any delay.

Stator Kit Fits:

KTM:125
SM 125 (2003-2004
200
EC 200 (2000-2004)
EC 250 (2000-2004)
SM 250 (2003-2004)
250 EXC (2002-2007)
250 MXC (2002-2007)
250 XC (2002-2007)
250 XC-W (2002-2007)
280
EC 300 (2000-2004)
Wild HP 300 (2003)
380 SX (2002 - 2009)

Stator (inc. base plate), rotor and regulator rectifier - Hi-power.


NOTE: You will require a battery or capacitor power pack - see related product below.


  • High output 220w stator kit, 3 phase alternator and matching regulator rectifier.
  • Requires 12v battery or capacitor power pack to be fitted.
  • Ignition is a direct plug-in fitment to original CDI.
  • Manufactured in the UK.

Click the following link to download fitting instructions:
Download Instructions

Warranty

  • Road bike components - one year from the date of purchase
  • Off-road bike components - six months from the date of purchase
  • Race bike components - no warranty in line with industry practice
  • Any warranty does not cover defects due to abuse, misuse, improper installation or modification.

Transit

If any items were damaged in transit, we ask that you report it to us within 7 working days. On their return they can be replaced or a refund issued via your original payment method.

Faulty on arrival

If your items are faulty on arrival, you should inform us within 14 days of delivery. Items should be returned in their original packaging when possible with a copy of original documentation. Once we have verified the fault, we will issue a replacement or full refund to you via your original payment method.

Items faulty in warranty period

If any of your purchases develop a fault within its warranty period it will need to be returned. Once the fault has been verified, a repair or exchange of goods will be issued. If goods are found to be in good working order a testing/administration charge of 15 + VAT and return postage will be made to the customer.

Items ordered in error

If an item has been ordered in error, you should inform us within 14 days of delivery. We will not accept returned goods without prior consent except under guarantee. A minimum restocking/administration charge of 5 + VAT will be made on returned goods.

Returns We want you to be happy with your purchase from Electrex World Limited however there may be certain instances when products may need to be returned.

International Returns

International returns must be marked as 'Return - Failed Sale on any customs documentation. If there are any customs fees to pay, we will deduct these from your refund/credit.

Notes

  1. All returns must be accompanied by a copy of the original invoice and a completed returns form which can be downloaded using the following link:
    RETURNS FORM
  2. Returns take approximately five business days to process upon receipt of the item.
  3. We are not responsible for the loss or damage of items during their return. Please note that the customer has a duty of care whilst the goods are in their possession and that they should be thoughtfully packaged for the return shipment.
  4. Buyer is responsible for any shipping charges when returning the item.
  5. When fitting electrical parts these can be damaged by the same faulty electrical system that caused the initial failure and in such circumstances these parts cannot be returned for refund.
  6. No refund can be given If the item is out of warranty, if the item is within warranty but has been subjected to conditions beyond their specification or the item has been fitted/used.

Return Address

Electrex World Limited Units 43-46 Vanalloys Business Park Stoke Row Oxfordshire RG9 5QW

2006-2016 Electrex World Ltd. All rights reserved. Home | Terms & Conditions

Registered in England & Wales Company Registration number 04306310. VAT number 785 299 174.


External RotorRO814395.00Product link
GeneratorG14793.50Product link
Regulator RectifierRR5878.00Product link
Capacitor PackPP1215.00Product link

Bultaco Pursang Stator Kit - 19.7mm Crank End - STK-150
Bultaco Pursang Ignition only stator kit - (STK-150)Rotor Detail - (STK-150)Rotor Detail - (STK-150)End of crankshaft measurements - (STK-150)
Wiring diagram - (STK-150)

Bultaco Pursang Stator Kit - 19.7mm Crank End - STK-150


Price (excl. vat): 225.00
(270.00 Including VAT at 20%)

Many of these items are made to order.
You will be advised on any delay.

Stator Kit Fits:

Bultaco:Pursang - Single spark 175
Pursang - Single spark 200
Pursang - Single spark 250
Pursang - Single spark 350
Metralla
  • NOTE: This kit fits crankend diameter 19.7mm if you require crank end diameter of 17.5mm please refer to our STK-151
  • CDI ignition with electronic/retard for easy starting and maximum performance.
  • Starting is very easy with ignition at only 150rpm.
  • Very easy to fit and set-up without the need for specialist engineering facilities.
  • Rotor Weight: 0.95kg. | Complete kit weight: 1.5kg
  • Crank end diameter: 19.7mm
  • Manufactured in the UK.

Click the following link to download fitting instructions:
Download Instructions

Warranty

  • Road bike components - one year from the date of purchase
  • Off-road bike components - six months from the date of purchase
  • Race bike components - no warranty in line with industry practice
  • Any warranty does not cover defects due to abuse, misuse, improper installation or modification.

Transit

If any items were damaged in transit, we ask that you report it to us within 7 working days. On their return they can be replaced or a refund issued via your original payment method.

Faulty on arrival

If your items are faulty on arrival, you should inform us within 14 days of delivery. Items should be returned in their original packaging when possible with a copy of original documentation. Once we have verified the fault, we will issue a replacement or full refund to you via your original payment method.

Items faulty in warranty period

If any of your purchases develop a fault within its warranty period it will need to be returned. Once the fault has been verified, a repair or exchange of goods will be issued. If goods are found to be in good working order a testing/administration charge of 15 + VAT and return postage will be made to the customer.

Items ordered in error

If an item has been ordered in error, you should inform us within 14 days of delivery. We will not accept returned goods without prior consent except under guarantee. A minimum restocking/administration charge of 5 + VAT will be made on returned goods.

Returns We want you to be happy with your purchase from Electrex World Limited however there may be certain instances when products may need to be returned.

International Returns

International returns must be marked as 'Return - Failed Sale on any customs documentation. If there are any customs fees to pay, we will deduct these from your refund/credit.

Notes

  1. All returns must be accompanied by a copy of the original invoice and a completed returns form which can be downloaded using the following link:
    RETURNS FORM
  2. Returns take approximately five business days to process upon receipt of the item.
  3. We are not responsible for the loss or damage of items during their return. Please note that the customer has a duty of care whilst the goods are in their possession and that they should be thoughtfully packaged for the return shipment.
  4. Buyer is responsible for any shipping charges when returning the item.
  5. When fitting electrical parts these can be damaged by the same faulty electrical system that caused the initial failure and in such circumstances these parts cannot be returned for refund.
  6. No refund can be given If the item is out of warranty, if the item is within warranty but has been subjected to conditions beyond their specification or the item has been fitted/used.

Return Address

Electrex World Limited Units 43-46 Vanalloys Business Park Stoke Row Oxfordshire RG9 5QW

2006-2016 Electrex World Ltd. All rights reserved. Home | Terms & Conditions

Registered in England & Wales Company Registration number 04306310. VAT number 785 299 174.


External RotorRO10795.00Product link
StatorEWST-0152-HTCD75.00Product link
HT CoilHT-CDI55.00Product link
SwitchSW1120.00Product link
HT plugcapPLUGCAP4.00Product link

Bultaco Pursang Stator Kit, 17.5mm crank end - STK-151
Bultaco Pursang Stator Kit - (STK-151)End of crankshaft measurements - (STK-150)Wiring diagram - (STK-151)

Bultaco Pursang Stator Kit, 17.5mm crank end - STK-151


Price (excl. vat): 185.00
(222.00 Including VAT at 20%)

Many of these items are made to order.
You will be advised on any delay.

Stator Kit Fits:

Bultaco:Pursang - Single sparkMetralla
  • NOTE: This kit fits crankend diameter 17.5mm if you require crank end diameter of 19.7mm please refer to our STK-150
  • CDI ignition with electronic/retard for easy starting and maximum performance.
  • Starting is very easy with ignition at only 150rpm.
  • Very easy to fit and set-up without the need for specialist engineering facilities.
  • Rotor Weight: 0.95kg. | Complete kit weight: 1.5kg
  • Crank end diameter: 17.5mm.
  • Manufactured in the UK.

Click the following link to download fitting instructions:
Download Instructions

Warranty

  • Road bike components - one year from the date of purchase
  • Off-road bike components - six months from the date of purchase
  • Race bike components - no warranty in line with industry practice
  • Any warranty does not cover defects due to abuse, misuse, improper installation or modification.

Transit

If any items were damaged in transit, we ask that you report it to us within 7 working days. On their return they can be replaced or a refund issued via your original payment method.

Faulty on arrival

If your items are faulty on arrival, you should inform us within 14 days of delivery. Items should be returned in their original packaging when possible with a copy of original documentation. Once we have verified the fault, we will issue a replacement or full refund to you via your original payment method.

Items faulty in warranty period

If any of your purchases develop a fault within its warranty period it will need to be returned. Once the fault has been verified, a repair or exchange of goods will be issued. If goods are found to be in good working order a testing/administration charge of 15 + VAT and return postage will be made to the customer.

Items ordered in error

If an item has been ordered in error, you should inform us within 14 days of delivery. We will not accept returned goods without prior consent except under guarantee. A minimum restocking/administration charge of 5 + VAT will be made on returned goods.

Returns We want you to be happy with your purchase from Electrex World Limited however there may be certain instances when products may need to be returned.

International Returns

International returns must be marked as 'Return - Failed Sale on any customs documentation. If there are any customs fees to pay, we will deduct these from your refund/credit.

Notes

  1. All returns must be accompanied by a copy of the original invoice and a completed returns form which can be downloaded using the following link:
    RETURNS FORM
  2. Returns take approximately five business days to process upon receipt of the item.
  3. We are not responsible for the loss or damage of items during their return. Please note that the customer has a duty of care whilst the goods are in their possession and that they should be thoughtfully packaged for the return shipment.
  4. Buyer is responsible for any shipping charges when returning the item.
  5. When fitting electrical parts these can be damaged by the same faulty electrical system that caused the initial failure and in such circumstances these parts cannot be returned for refund.
  6. No refund can be given If the item is out of warranty, if the item is within warranty but has been subjected to conditions beyond their specification or the item has been fitted/used.

Return Address

Electrex World Limited Units 43-46 Vanalloys Business Park Stoke Row Oxfordshire RG9 5QW

2006-2016 Electrex World Ltd. All rights reserved. Home | Terms & Conditions

Registered in England & Wales Company Registration number 04306310. VAT number 785 299 174.


External RotorRO10895.00Product link
StatorEWST-0152-HTCD75.00Product link
HT CoilHT-CDI55.00Product link
SwitchSW1120.00Product link
HT plugcapPLUGCAP4.00Product link

Bultaco Pursang Dual Spark External Rotor Stator Kit - STK-152
Bultaco Pursang Dual Spark External Rotor Stator Kit - (STK-152)Rotor detail - (STK-152)Rotor detail - Timing marks - (STK-152)Stator plate detail - (STK-152)
Timing detail - (STK-152)Wiring diagram (STK-152)

Bultaco Pursang Dual Spark External Rotor Stator Kit - STK-152


Price (excl. vat): 235.00
(282.00 Including VAT at 20%)

Stator Kit Fits:

Bultaco:Pursang - Dual Spark

NEW IMPROVED DESIGN


  • Self generating CDI Ignition for strong reliable spark.
  • Very low speed spark output from only 150rpm.
  • Easy starting and excellent trials performance.
  • Timing advance is fully electronic with advance curve, essential for trials engines.
  • External pick-up gives accurate and adjustable timing with no variance with temperature.
  • Flywheel has similar weight to the original to give the correct engine characteristics.
  • Easy to fit without the need for specialist engineering facilities.
  • Flywheel rotor weight: 1.6kg | Complete Kit weight: 2.5kg.
  • No lighting version available for this kit.
  • Manufactured in the UK.

Click the following link to download fitting instructions:
Download Instructions

Warranty

  • Road bike components - one year from the date of purchase
  • Off-road bike components - six months from the date of purchase
  • Race bike components - no warranty in line with industry practice
  • Any warranty does not cover defects due to abuse, misuse, improper installation or modification.

Transit

If any items were damaged in transit, we ask that you report it to us within 7 working days. On their return they can be replaced or a refund issued via your original payment method.

Faulty on arrival

If your items are faulty on arrival, you should inform us within 14 days of delivery. Items should be returned in their original packaging when possible with a copy of original documentation. Once we have verified the fault, we will issue a replacement or full refund to you via your original payment method.

Items faulty in warranty period

If any of your purchases develop a fault within its warranty period it will need to be returned. Once the fault has been verified, a repair or exchange of goods will be issued. If goods are found to be in good working order a testing/administration charge of 15 + VAT and return postage will be made to the customer.

Items ordered in error

If an item has been ordered in error, you should inform us within 14 days of delivery. We will not accept returned goods without prior consent except under guarantee. A minimum restocking/administration charge of 5 + VAT will be made on returned goods.

Returns We want you to be happy with your purchase from Electrex World Limited however there may be certain instances when products may need to be returned.

International Returns

International returns must be marked as 'Return - Failed Sale on any customs documentation. If there are any customs fees to pay, we will deduct these from your refund/credit.

Notes

  1. All returns must be accompanied by a copy of the original invoice and a completed returns form which can be downloaded using the following link:
    RETURNS FORM
  2. Returns take approximately five business days to process upon receipt of the item.
  3. We are not responsible for the loss or damage of items during their return. Please note that the customer has a duty of care whilst the goods are in their possession and that they should be thoughtfully packaged for the return shipment.
  4. Buyer is responsible for any shipping charges when returning the item.
  5. When fitting electrical parts these can be damaged by the same faulty electrical system that caused the initial failure and in such circumstances these parts cannot be returned for refund.
  6. No refund can be given If the item is out of warranty, if the item is within warranty but has been subjected to conditions beyond their specification or the item has been fitted/used.

Return Address

Electrex World Limited Units 43-46 Vanalloys Business Park Stoke Row Oxfordshire RG9 5QW

2006-2016 Electrex World Ltd. All rights reserved. Home | Terms & Conditions

Registered in England & Wales Company Registration number 04306310. VAT number 785 299 174.


External RotorRO11115.00Product link
StatorEWST-0152-001075.00Product link
CDICD001071.50Product link
HT CoilHT245.00Product link
SwitchSW1120.00Product link
HT plugcapPLUGCAP4.00Product link

Bultaco Frontera, Matador, Alpina Lighting/Ignition Stator Kit - DC for Led Lighting - STK-153L
Bultaco Frontera, Matador, Aplina Lighting/Ignition Stator Kit - (STK-153L)Wiring diagram using a samll battery - (STK-153L)Wiring diagram using our power pack/capacitor - (STK-153L)

Bultaco Frontera, Matador, Alpina Lighting/Ignition Stator Kit - DC for Led Lighting - STK-153L


Price (excl. vat): 235.00
(282.00 Including VAT at 20%)

Many of these items are made to order.
You will be advised on any delay.

Stator Kit Fits:

Bultaco:AlpinaFronteraMatador
  • NOTE: This kit is a DC kit for use with LED lighting, you must have either a capacitor (see related products below to purchase one), or a small battery otherwise the regulator/rectifier will not work.
  • Self generating CDI Ignition for strong reliable spark.
  • Very low speed spark output from only 150rpm.
  • Easy starting and excellent trials performance.
  • Timing advance is fully electronic with advance curve, essential for trials engines.
  • External pick-up gives accurate and adjustable timing with no variance with temperature.
  • Flywheel has similar weight to the original to give the correct engine characteristics.
  • Output is DC to charge a small battery - or the battery can be replaced with a PP12 capacitor pack - see related products below, this is more reliable than a battery but has limited energy storage.
  • We recommend using LED bulbs for head light and rear lights.
  • Easy to fit without the need for specialist engineering facilities.
  • Flywheel rotor weight: 1.6kg | Complete Kit weight: 2.5kg.
  • Manufactured in the UK.

Click the following link to download fitting instructions:
Download Instructions

Warranty

  • Road bike components - one year from the date of purchase
  • Off-road bike components - six months from the date of purchase
  • Race bike components - no warranty in line with industry practice
  • Any warranty does not cover defects due to abuse, misuse, improper installation or modification.

Transit

If any items were damaged in transit, we ask that you report it to us within 7 working days. On their return they can be replaced or a refund issued via your original payment method.

Faulty on arrival

If your items are faulty on arrival, you should inform us within 14 days of delivery. Items should be returned in their original packaging when possible with a copy of original documentation. Once we have verified the fault, we will issue a replacement or full refund to you via your original payment method.

Items faulty in warranty period

If any of your purchases develop a fault within its warranty period it will need to be returned. Once the fault has been verified, a repair or exchange of goods will be issued. If goods are found to be in good working order a testing/administration charge of 15 + VAT and return postage will be made to the customer.

Items ordered in error

If an item has been ordered in error, you should inform us within 14 days of delivery. We will not accept returned goods without prior consent except under guarantee. A minimum restocking/administration charge of 5 + VAT will be made on returned goods.

Returns We want you to be happy with your purchase from Electrex World Limited however there may be certain instances when products may need to be returned.

International Returns

International returns must be marked as 'Return - Failed Sale on any customs documentation. If there are any customs fees to pay, we will deduct these from your refund/credit.

Notes

  1. All returns must be accompanied by a copy of the original invoice and a completed returns form which can be downloaded using the following link:
    RETURNS FORM
  2. Returns take approximately five business days to process upon receipt of the item.
  3. We are not responsible for the loss or damage of items during their return. Please note that the customer has a duty of care whilst the goods are in their possession and that they should be thoughtfully packaged for the return shipment.
  4. Buyer is responsible for any shipping charges when returning the item.
  5. When fitting electrical parts these can be damaged by the same faulty electrical system that caused the initial failure and in such circumstances these parts cannot be returned for refund.
  6. No refund can be given If the item is out of warranty, if the item is within warranty but has been subjected to conditions beyond their specification or the item has been fitted/used.

Return Address

Electrex World Limited Units 43-46 Vanalloys Business Park Stoke Row Oxfordshire RG9 5QW

2006-2016 Electrex World Ltd. All rights reserved. Home | Terms & Conditions

Registered in England & Wales Company Registration number 04306310. VAT number 785 299 174.


External RotorRO11115.00Product link
StatorEWST-152L-HTCD105.00Product link
Regulator RectifierRR0254.00Product link
HT CDI CoilHT CDI55.00Product link
SwitchSW1120.00Product link
HT plugcapPLUGCAP4.00Product link

Bultaco Sherpa Trials, EL Bandido,  Stator Kit - STK-154
Bultaco Sherpa Trials, Alpina, Frontera, Matador, Al Bandido Stator Kit - (STK-154)Original Femsatronic flywheel - see image above - (STK-154)Original Femsatronic flywheel - see image above- reverse view - (STK-154)Stator Kit - view 4 - (STK-154)
End of crankshaft measurment - (STK-154)Wiring diagram

Bultaco Sherpa Trials, EL Bandido, Stator Kit - STK-154


Price (excl. vat): 165.00
(198.00 Including VAT at 20%)

Many of these items are made to order.
You will be advised on any delay.

Stator Kit Fits:

Bultaco:El BandidoSherpa Trials

NOTE: This kit utilises the original Femsatronic flywheel rotor which has 4 magnetic poles. Femsatronic flywheel measurements - : 98.4mm and 4 x magnets instead of 6 - please click on images above.


  • High energy self generating CDI ignition, sparking starts at 150rpm.
  • The spark energy and the timing are produced by the stator coil. The exact advance curve is determined by the stator + CDI combination.
  • Available as 6v or 12v AC or DC battery charging. NOTE: AC types are recommended for maximum lighting efficiency and low maintenance as a battery is not fitted.
  • Utilises original Femsatronic rotor which has 4 magnetic poles.
  • Replaces original points sytem with cdi electronic ignition.
  • Electronic advance of 13 degrees is specifically developed to give the Sherpa smooth tractable power, ideal for trials.
  • Very easy to fit and set-up without the need for specialist engineering facilities.
  • High quality electroplating and stainless steel fittings (where possible) used for maximum corrosion protection.
  • LIGHTING VERSION ALSO AVAILABLE (STK-154L)- see related products below.
  • Manufactured in the UK.

Click the following link to download fitting instructions:
Download Instructions

Warranty

  • Road bike components - one year from the date of purchase
  • Off-road bike components - six months from the date of purchase
  • Race bike components - no warranty in line with industry practice
  • Any warranty does not cover defects due to abuse, misuse, improper installation or modification.

Transit

If any items were damaged in transit, we ask that you report it to us within 7 working days. On their return they can be replaced or a refund issued via your original payment method.

Faulty on arrival

If your items are faulty on arrival, you should inform us within 14 days of delivery. Items should be returned in their original packaging when possible with a copy of original documentation. Once we have verified the fault, we will issue a replacement or full refund to you via your original payment method.

Items faulty in warranty period

If any of your purchases develop a fault within its warranty period it will need to be returned. Once the fault has been verified, a repair or exchange of goods will be issued. If goods are found to be in good working order a testing/administration charge of 15 + VAT and return postage will be made to the customer.

Items ordered in error

If an item has been ordered in error, you should inform us within 14 days of delivery. We will not accept returned goods without prior consent except under guarantee. A minimum restocking/administration charge of 5 + VAT will be made on returned goods.

Returns We want you to be happy with your purchase from Electrex World Limited however there may be certain instances when products may need to be returned.

International Returns

International returns must be marked as 'Return - Failed Sale on any customs documentation. If there are any customs fees to pay, we will deduct these from your refund/credit.

Notes

  1. All returns must be accompanied by a copy of the original invoice and a completed returns form which can be downloaded using the following link:
    RETURNS FORM
  2. Returns take approximately five business days to process upon receipt of the item.
  3. We are not responsible for the loss or damage of items during their return. Please note that the customer has a duty of care whilst the goods are in their possession and that they should be thoughtfully packaged for the return shipment.
  4. Buyer is responsible for any shipping charges when returning the item.
  5. When fitting electrical parts these can be damaged by the same faulty electrical system that caused the initial failure and in such circumstances these parts cannot be returned for refund.
  6. No refund can be given If the item is out of warranty, if the item is within warranty but has been subjected to conditions beyond their specification or the item has been fitted/used.

Return Address

Electrex World Limited Units 43-46 Vanalloys Business Park Stoke Row Oxfordshire RG9 5QW

2006-2016 Electrex World Ltd. All rights reserved. Home | Terms & Conditions

Registered in England & Wales Company Registration number 04306310. VAT number 785 299 174.


StatorEWST-015475.00Product link
HT CoilHT-CDI55.00Product link
SwitchSW1120.00Product link
HT plugcapPLUGCAP4.00Product link

Bultaco Sherpa Trials, El Bandido,  AC only Lighting/Ignition Stator Kit - STK-154L
Bultaco Sherpa Trials, Al Bandido Lighting/Ignition Stator Kit - (STK-154L)Original Femsatronic rotor detail- (STK-154L)Original Femsatronic rotor reverse- (STK-154L)Stator Kit inc. lighting - view 4- (STK-154L)
Stator Kit inc. lighting - view 5- (STK-154L)AC wiring diagram

Bultaco Sherpa Trials, El Bandido, AC only Lighting/Ignition Stator Kit - STK-154L


Price (excl. vat): 195.00
(234.00 Including VAT at 20%)

Many of these items are made to order.
You will be advised on any delay.

Stator Kit Fits:

Bultaco:El BandidoSherpa Trials
Motobi:Catria Magneto

NOTE: This kit utilises the original Femsatronic flywheel rotor which has 4 magnetic poles. Femsatronic flywheel measurements - : 98.4mm and 4 x magnets instead of 6 - please click on images above.


  • 75w max output at high RPM only.
  • High energy self generating CDI ignition, sparking starts at 150rpm.
  • The spark energy and the timing are produced by the stator coil. The exact advance curve is determined by the stator + CDI combination.
  • Available as 6v or 12v AC (for DC lighting using LED lights with a capacitor or small battery please see STK-153L in related products below). NOTE: AC types are recommended for maximum lighting efficiency and low maintenance as a battery is not fitted.
  • Utilises original Femsatronic rotor which has 4 magnetic poles.
  • Replaces original points sytem with cdi electronic ignition.
  • Electronic advance of 13 degrees is specifically developed to give the Sherpa smooth tractable power, ideal for trials.
  • Very easy to fit and set-up without the need for specialist engineering facilities.
  • High quality electroplating and stainless steel fittings (where possible) used for maximum corrosion protection.
  • IGNITION ONLY ALSO AVAILABLE (STK-154)- see related products below.
  • Manufactured in the UK.

Click the following link to download fitting instructions:
Download Instructions

Warranty

  • Road bike components - one year from the date of purchase
  • Off-road bike components - six months from the date of purchase
  • Race bike components - no warranty in line with industry practice
  • Any warranty does not cover defects due to abuse, misuse, improper installation or modification.

Transit

If any items were damaged in transit, we ask that you report it to us within 7 working days. On their return they can be replaced or a refund issued via your original payment method.

Faulty on arrival

If your items are faulty on arrival, you should inform us within 14 days of delivery. Items should be returned in their original packaging when possible with a copy of original documentation. Once we have verified the fault, we will issue a replacement or full refund to you via your original payment method.

Items faulty in warranty period

If any of your purchases develop a fault within its warranty period it will need to be returned. Once the fault has been verified, a repair or exchange of goods will be issued. If goods are found to be in good working order a testing/administration charge of 15 + VAT and return postage will be made to the customer.

Items ordered in error

If an item has been ordered in error, you should inform us within 14 days of delivery. We will not accept returned goods without prior consent except under guarantee. A minimum restocking/administration charge of 5 + VAT will be made on returned goods.

Returns We want you to be happy with your purchase from Electrex World Limited however there may be certain instances when products may need to be returned.

International Returns

International returns must be marked as 'Return - Failed Sale on any customs documentation. If there are any customs fees to pay, we will deduct these from your refund/credit.

Notes

  1. All returns must be accompanied by a copy of the original invoice and a completed returns form which can be downloaded using the following link:
    RETURNS FORM
  2. Returns take approximately five business days to process upon receipt of the item.
  3. We are not responsible for the loss or damage of items during their return. Please note that the customer has a duty of care whilst the goods are in their possession and that they should be thoughtfully packaged for the return shipment.
  4. Buyer is responsible for any shipping charges when returning the item.
  5. When fitting electrical parts these can be damaged by the same faulty electrical system that caused the initial failure and in such circumstances these parts cannot be returned for refund.
  6. No refund can be given If the item is out of warranty, if the item is within warranty but has been subjected to conditions beyond their specification or the item has been fitted/used.

Return Address

Electrex World Limited Units 43-46 Vanalloys Business Park Stoke Row Oxfordshire RG9 5QW

2006-2016 Electrex World Ltd. All rights reserved. Home | Terms & Conditions

Registered in England & Wales Company Registration number 04306310. VAT number 785 299 174.


StatorEWST-154L105.00Product link
HT CoilHT-CDI55.00Product link
RegulatorRG6/1230.00Product link
SwitchSW1120.00Product link
HT plugcapPLUGCAP4.00Product link

Bultaco Sherpa Trials, El Bandido,  12v DC Lighting/Ignition Stator Kit - STK-154L-DC
Bultaco Sherpa Trials, Al Bandido Lighting/Ignition Stator DC Kit - (STK-154L-DC)Original Femsatronic rotor detail- (STK-154L)Original Femsatronic rotor reverse- (STK-154L)Stator Kit inc. lighting - view 4- (STK-154L)
Stator Kit inc. lighting - view 5- (STK-154L)DC wiring diagram using a battery (not supplied)DC wiring diagram using a capacitor (our optional part)

Bultaco Sherpa Trials, El Bandido, 12v DC Lighting/Ignition Stator Kit - STK-154L-DC


Price (excl. vat): 215.00
(258.00 Including VAT at 20%)

Many of these items are made to order.
You will be advised on any delay.

Stator Kit Fits:

Bultaco:El BandidoSherpa Trials

NOTE: This kit utilises the original Femsatronic flywheel rotor which has 4 magnetic poles. Femsatronic flywheel measurements - : 98.4mm and 4 x magnets instead of 6 - please click on images above.


  • 75w max output at high RPM only.
  • High energy self generating CDI ignition, sparking starts at 150rpm.
  • The spark energy and the timing are produced by the stator coil. The exact advance curve is determined by the stator + CDI combination.
  • 12v DC lighting kit enabling the use of LED lights with a capacitor (choose Power pack option from the list above the 'Add to Basket' box) or small battery. For AC 6/12v kit please see STK-154L (link in related products below).
  • Utilises original Femsatronic rotor which has 4 magnetic poles.
  • Replaces original points sytem with cdi electronic ignition.
  • Electronic advance of 13 degrees is specifically developed to give the Sherpa smooth tractable power, ideal for trials.
  • Very easy to fit and set-up without the need for specialist engineering facilities.
  • High quality electroplating and stainless steel fittings (where possible) used for maximum corrosion protection.
  • IGNITION ONLY ALSO AVAILABLE (STK-154)- see related products below.
  • Manufactured in the UK.

Click the following link to download fitting instructions:
Download Instructions

Warranty

  • Road bike components - one year from the date of purchase
  • Off-road bike components - six months from the date of purchase
  • Race bike components - no warranty in line with industry practice
  • Any warranty does not cover defects due to abuse, misuse, improper installation or modification.

Transit

If any items were damaged in transit, we ask that you report it to us within 7 working days. On their return they can be replaced or a refund issued via your original payment method.

Faulty on arrival

If your items are faulty on arrival, you should inform us within 14 days of delivery. Items should be returned in their original packaging when possible with a copy of original documentation. Once we have verified the fault, we will issue a replacement or full refund to you via your original payment method.

Items faulty in warranty period

If any of your purchases develop a fault within its warranty period it will need to be returned. Once the fault has been verified, a repair or exchange of goods will be issued. If goods are found to be in good working order a testing/administration charge of 15 + VAT and return postage will be made to the customer.

Items ordered in error

If an item has been ordered in error, you should inform us within 14 days of delivery. We will not accept returned goods without prior consent except under guarantee. A minimum restocking/administration charge of 5 + VAT will be made on returned goods.

Returns We want you to be happy with your purchase from Electrex World Limited however there may be certain instances when products may need to be returned.

International Returns

International returns must be marked as 'Return - Failed Sale on any customs documentation. If there are any customs fees to pay, we will deduct these from your refund/credit.

Notes

  1. All returns must be accompanied by a copy of the original invoice and a completed returns form which can be downloaded using the following link:
    RETURNS FORM
  2. Returns take approximately five business days to process upon receipt of the item.
  3. We are not responsible for the loss or damage of items during their return. Please note that the customer has a duty of care whilst the goods are in their possession and that they should be thoughtfully packaged for the return shipment.
  4. Buyer is responsible for any shipping charges when returning the item.
  5. When fitting electrical parts these can be damaged by the same faulty electrical system that caused the initial failure and in such circumstances these parts cannot be returned for refund.
  6. No refund can be given If the item is out of warranty, if the item is within warranty but has been subjected to conditions beyond their specification or the item has been fitted/used.

Return Address

Electrex World Limited Units 43-46 Vanalloys Business Park Stoke Row Oxfordshire RG9 5QW

2006-2016 Electrex World Ltd. All rights reserved. Home | Terms & Conditions

Registered in England & Wales Company Registration number 04306310. VAT number 785 299 174.


StatorEWST-154L105.00Product link
HT CoilHT-CDI55.00Product link
RegulatorRR12049.50Product link
SwitchSW1120.00Product link
HT plugcapPLUGCAP4.00Product link

Bultaco Road Race Stator Kit - STK-156
Bultaco road race Stator Kit - (STK-156)Crankshaft size -  (STK-156)STK-156 - wiring diagram

Bultaco Road Race Stator Kit - STK-156


Price (excl. vat): 185.00
(222.00 Including VAT at 20%)

Many of these items are made to order.
You will be advised on any delay.

Stator Kit Fits:

Bultaco:FronteraSherpa
  • Basic kit fits crankshaft size 19.7mm - see image above. If you have crankshaft of 17mm please contact us so we can supply you with a different rotor.
  • Timing curve designed to give maximum performance on the 2-stroke engine.
  • Easy fitting and set-up.
  • Reliable, low cost kit.
  • Manufactured in the UK.

Click the following link to download fitting instructions:
Download Instructions

Warranty

  • Road bike components - one year from the date of purchase
  • Off-road bike components - six months from the date of purchase
  • Race bike components - no warranty in line with industry practice
  • Any warranty does not cover defects due to abuse, misuse, improper installation or modification.

Transit

If any items were damaged in transit, we ask that you report it to us within 7 working days. On their return they can be replaced or a refund issued via your original payment method.

Faulty on arrival

If your items are faulty on arrival, you should inform us within 14 days of delivery. Items should be returned in their original packaging when possible with a copy of original documentation. Once we have verified the fault, we will issue a replacement or full refund to you via your original payment method.

Items faulty in warranty period

If any of your purchases develop a fault within its warranty period it will need to be returned. Once the fault has been verified, a repair or exchange of goods will be issued. If goods are found to be in good working order a testing/administration charge of 15 + VAT and return postage will be made to the customer.

Items ordered in error

If an item has been ordered in error, you should inform us within 14 days of delivery. We will not accept returned goods without prior consent except under guarantee. A minimum restocking/administration charge of 5 + VAT will be made on returned goods.

Returns We want you to be happy with your purchase from Electrex World Limited however there may be certain instances when products may need to be returned.

International Returns

International returns must be marked as 'Return - Failed Sale on any customs documentation. If there are any customs fees to pay, we will deduct these from your refund/credit.

Notes

  1. All returns must be accompanied by a copy of the original invoice and a completed returns form which can be downloaded using the following link:
    RETURNS FORM
  2. Returns take approximately five business days to process upon receipt of the item.
  3. We are not responsible for the loss or damage of items during their return. Please note that the customer has a duty of care whilst the goods are in their possession and that they should be thoughtfully packaged for the return shipment.
  4. Buyer is responsible for any shipping charges when returning the item.
  5. When fitting electrical parts these can be damaged by the same faulty electrical system that caused the initial failure and in such circumstances these parts cannot be returned for refund.
  6. No refund can be given If the item is out of warranty, if the item is within warranty but has been subjected to conditions beyond their specification or the item has been fitted/used.

Return Address

Electrex World Limited Units 43-46 Vanalloys Business Park Stoke Row Oxfordshire RG9 5QW

2006-2016 Electrex World Ltd. All rights reserved. Home | Terms & Conditions

Registered in England & Wales Company Registration number 04306310. VAT number 785 299 174.


StatorIR232-1555.00Product link
StatorEWST-009075.00Product link
Adapter PlateAD15220.00Product link
CDICD68065.00Product link
HT CoilHT5530.00Product link
SwitchSW1120.00Product link
HT plugcapPLUGCAP4.00Product link

BSA Bantam D10, D14, B175 Digital Ignition and Alternator System - STK-177D-DC
BSA Bantam D10, D14, B175 Digital Ignition and Alternator System - (STK-177)Stator in place - (STK-177)Rotor in place - (STK-177)STK-177D-DC wiring diagram

BSA Bantam D10, D14, B175 Digital Ignition and Alternator System - STK-177D-DC


Price (excl. vat): 215.00
(258.00 Including VAT at 20%)

Many of these items are made to order.
You will be advised on any delay.

Stator Kit Fits:

BSA Bantam:B175D10
D14

NOTE: A battery is NOT required to run the ignition or lighting but advantageous for brakelight or indicators.


  • Replaces original Lucas or Wipac alternator and rotor.
  • Self generating digital cdi ignition - battery not required.
  • Simple timing set-up align marks on the rotor and stator.
  • Single phase permanent magnet alternator maximum output 50w.
  • Supplied regulator/rectifier is 6v or 12v selectable by cutting the blue wire. Output is DC to charge a small battery - see notes about battery in Fitting Instructions tab above.
  • The battery can be replaced with a PP12 capacitor pack, see related products below, this is more reliable than a battery but has limited energy storage. See notes about battery in Fitting Instructions tab above.
  • Rotor is fitted with collet locking system in place of the original key and keyway. This allows correct timing set-up as the keyway is not required. If the crankshaft is rebuilt it is quite common for the keyway to be in the wrong position.
  • Manufactured in the UK.

Click the following link to download fitting instructions:
Download Instructions

Warranty

  • Road bike components - one year from the date of purchase
  • Off-road bike components - six months from the date of purchase
  • Race bike components - no warranty in line with industry practice
  • Any warranty does not cover defects due to abuse, misuse, improper installation or modification.

Transit

If any items were damaged in transit, we ask that you report it to us within 7 working days. On their return they can be replaced or a refund issued via your original payment method.

Faulty on arrival

If your items are faulty on arrival, you should inform us within 14 days of delivery. Items should be returned in their original packaging when possible with a copy of original documentation. Once we have verified the fault, we will issue a replacement or full refund to you via your original payment method.

Items faulty in warranty period

If any of your purchases develop a fault within its warranty period it will need to be returned. Once the fault has been verified, a repair or exchange of goods will be issued. If goods are found to be in good working order a testing/administration charge of 15 + VAT and return postage will be made to the customer.

Items ordered in error

If an item has been ordered in error, you should inform us within 14 days of delivery. We will not accept returned goods without prior consent except under guarantee. A minimum restocking/administration charge of 5 + VAT will be made on returned goods.

Returns We want you to be happy with your purchase from Electrex World Limited however there may be certain instances when products may need to be returned.

International Returns

International returns must be marked as 'Return - Failed Sale on any customs documentation. If there are any customs fees to pay, we will deduct these from your refund/credit.

Notes

  1. All returns must be accompanied by a copy of the original invoice and a completed returns form which can be downloaded using the following link:
    RETURNS FORM
  2. Returns take approximately five business days to process upon receipt of the item.
  3. We are not responsible for the loss or damage of items during their return. Please note that the customer has a duty of care whilst the goods are in their possession and that they should be thoughtfully packaged for the return shipment.
  4. Buyer is responsible for any shipping charges when returning the item.
  5. When fitting electrical parts these can be damaged by the same faulty electrical system that caused the initial failure and in such circumstances these parts cannot be returned for refund.
  6. No refund can be given If the item is out of warranty, if the item is within warranty but has been subjected to conditions beyond their specification or the item has been fitted/used.

Return Address

Electrex World Limited Units 43-46 Vanalloys Business Park Stoke Row Oxfordshire RG9 5QW

2006-2016 Electrex World Ltd. All rights reserved. Home | Terms & Conditions

Registered in England & Wales Company Registration number 04306310. VAT number 785 299 174.


External RotorRO10095.00Product link
StatorEWST-0079-HPI0-0177 95.00Product link
Regulator RectifierRR0254.00Product link
CDICD68065.00Product link
HT CoilHT5530.00Product link
SwitchSW1120.00Product link
HT plugcapPLUGCAP4.00Product link

Husqvarna CR250 CR400 oval case models between 1965 - 1970 Ignition Stator kit - STK-182

Husqvarna CR250 CR400 oval case models between 1965 - 1970 Ignition Stator kit - STK-182


Price (excl. vat): 225.00
(270.00 Including VAT at 20%)

Stator Kit Fits:

Husqvarna:CR250CR400
  • NOTE: Stator plate diameter for this model is 115mm.
  • CDI ignition only stator kit.
  • Lighting version also available - see STK-182L in related products below.
  • Manufactured in the UK.

Click the following link to download fitting instructions:
Download Instructions

Warranty

  • Road bike components - one year from the date of purchase
  • Off-road bike components - six months from the date of purchase
  • Race bike components - no warranty in line with industry practice
  • Any warranty does not cover defects due to abuse, misuse, improper installation or modification.

Transit

If any items were damaged in transit, we ask that you report it to us within 7 working days. On their return they can be replaced or a refund issued via your original payment method.

Faulty on arrival

If your items are faulty on arrival, you should inform us within 14 days of delivery. Items should be returned in their original packaging when possible with a copy of original documentation. Once we have verified the fault, we will issue a replacement or full refund to you via your original payment method.

Items faulty in warranty period

If any of your purchases develop a fault within its warranty period it will need to be returned. Once the fault has been verified, a repair or exchange of goods will be issued. If goods are found to be in good working order a testing/administration charge of 15 + VAT and return postage will be made to the customer.

Items ordered in error

If an item has been ordered in error, you should inform us within 14 days of delivery. We will not accept returned goods without prior consent except under guarantee. A minimum restocking/administration charge of 5 + VAT will be made on returned goods.

Returns We want you to be happy with your purchase from Electrex World Limited however there may be certain instances when products may need to be returned.

International Returns

International returns must be marked as 'Return - Failed Sale on any customs documentation. If there are any customs fees to pay, we will deduct these from your refund/credit.

Notes

  1. All returns must be accompanied by a copy of the original invoice and a completed returns form which can be downloaded using the following link:
    RETURNS FORM
  2. Returns take approximately five business days to process upon receipt of the item.
  3. We are not responsible for the loss or damage of items during their return. Please note that the customer has a duty of care whilst the goods are in their possession and that they should be thoughtfully packaged for the return shipment.
  4. Buyer is responsible for any shipping charges when returning the item.
  5. When fitting electrical parts these can be damaged by the same faulty electrical system that caused the initial failure and in such circumstances these parts cannot be returned for refund.
  6. No refund can be given If the item is out of warranty, if the item is within warranty but has been subjected to conditions beyond their specification or the item has been fitted/used.

Return Address

Electrex World Limited Units 43-46 Vanalloys Business Park Stoke Row Oxfordshire RG9 5QW

2006-2016 Electrex World Ltd. All rights reserved. Home | Terms & Conditions

Registered in England & Wales Company Registration number 04306310. VAT number 785 299 174.


External RotorRO18595.00Product link
StatorST182115.00Product link
Adapter PlateAD18230.00Product link
HT-CoilHT-CDI55.00Product link
SwitchSW1120.00Product link
HT plugcapPLUGCAP4.00Product link

Husqvarna CR250 CR250 CR400 oval case models between 1965 - 1970 CDI Ignition Stator Kit with Lighting - STK-182L

Husqvarna CR250 CR250 CR400 oval case models between 1965 - 1970 CDI Ignition Stator Kit with Lighting - STK-182L


Price (excl. vat): 275.00
(330.00 Including VAT at 20%)

Stator Kit Fits:

Husqvarna:CR250CR400

NOTE: A battery is NOT required to run the ignition or lighting but advantageous for brakelight or indicators.


  • NOTE: Stator plate diameter for this model is 115mm.
  • CDI ignition with lighting stator kit.
  • Ignition only version also available - see STK-182 in related products below.
  • Manufactured in the UK.

Click the following link to download fitting instructions:
Download Instructions

Warranty

  • Road bike components - one year from the date of purchase
  • Off-road bike components - six months from the date of purchase
  • Race bike components - no warranty in line with industry practice
  • Any warranty does not cover defects due to abuse, misuse, improper installation or modification.

Transit

If any items were damaged in transit, we ask that you report it to us within 7 working days. On their return they can be replaced or a refund issued via your original payment method.

Faulty on arrival

If your items are faulty on arrival, you should inform us within 14 days of delivery. Items should be returned in their original packaging when possible with a copy of original documentation. Once we have verified the fault, we will issue a replacement or full refund to you via your original payment method.

Items faulty in warranty period

If any of your purchases develop a fault within its warranty period it will need to be returned. Once the fault has been verified, a repair or exchange of goods will be issued. If goods are found to be in good working order a testing/administration charge of 15 + VAT and return postage will be made to the customer.

Items ordered in error

If an item has been ordered in error, you should inform us within 14 days of delivery. We will not accept returned goods without prior consent except under guarantee. A minimum restocking/administration charge of 5 + VAT will be made on returned goods.

Returns We want you to be happy with your purchase from Electrex World Limited however there may be certain instances when products may need to be returned.

International Returns

International returns must be marked as 'Return - Failed Sale on any customs documentation. If there are any customs fees to pay, we will deduct these from your refund/credit.

Notes

  1. All returns must be accompanied by a copy of the original invoice and a completed returns form which can be downloaded using the following link:
    RETURNS FORM
  2. Returns take approximately five business days to process upon receipt of the item.
  3. We are not responsible for the loss or damage of items during their return. Please note that the customer has a duty of care whilst the goods are in their possession and that they should be thoughtfully packaged for the return shipment.
  4. Buyer is responsible for any shipping charges when returning the item.
  5. When fitting electrical parts these can be damaged by the same faulty electrical system that caused the initial failure and in such circumstances these parts cannot be returned for refund.
  6. No refund can be given If the item is out of warranty, if the item is within warranty but has been subjected to conditions beyond their specification or the item has been fitted/used.

Return Address

Electrex World Limited Units 43-46 Vanalloys Business Park Stoke Row Oxfordshire RG9 5QW

2006-2016 Electrex World Ltd. All rights reserved. Home | Terms & Conditions

Registered in England & Wales Company Registration number 04306310. VAT number 785 299 174.


External RotorRO18595.00Product link
StatorST182L135.00Product link
Regulator RectifierRR121C60.50Product link
Adapter PlateAD18220.00Product link
HT-CoilHT-CDI30.00Product link
SwitchSW1120.00Product link
HT plugcapPLUGCAP4.00Product link

Husqvarna CR400, CR500, WR240, WR250, WR400, WR430 & WR500 1982-1988 CDI Ignition Stator Kit - STK-185
Husqvarna CR400, CR500, WR240, WR250, WR400, WR430 & WR500 (82-88) CDI Ignition Stator Kit with Lighting - (STK-185)Crankshaft end measurement - (STK-185)

Husqvarna CR400, CR500, WR240, WR250, WR400, WR430 & WR500 1982-1988 CDI Ignition Stator Kit - STK-185


Price (excl. vat): 215.00
(258.00 Including VAT at 20%)

Many of these items are made to order.
You will be advised on any delay.

Stator Kit Fits:

Husqvarna:WR240
WR250
CR400
WR400
WR430 (1982-1988)
CR500
WR500 (1982 to 1988)
Plus possibly early 250/390/400 Enduro

NOTE: Some models of CR400 have a mounting plate diameter of 130mm, for this type you will need another stator assembly. Phone for details.


NOTE: Please check crank end measurment before ordering - see table below:
14mm crankshaft - STK-185 (ignition) or STK-185L (lighting)

18.5mm crankshaft - STK-186 (ignition) or STK-186L (lighting) or STK-188 (ignition)

19.3mm crankshaft - STK-189 (ignition)


  • High energy self generating CDI ignition, sparking starts at 250rpm.
  • CDI ignition, electronic advance curve helps prevent kickback and damage to engine, foot or both, as timing is retarded at start-up.
  • The spark energy and the timing are produced by the stator coil. The exact advance curve is determined by the stator + CDI combination.
  • External rotor, weight approx. 1.1kg. for smooth power delivery.
  • Engraved rotor to enable easy timing set-up.
  • Lighting/Ignition version available STK-185L, please see related products below.
  • Manufactured in the UK.

Click the following link to download fitting instructions:
Download Instructions

Warranty

  • Road bike components - one year from the date of purchase
  • Off-road bike components - six months from the date of purchase
  • Race bike components - no warranty in line with industry practice
  • Any warranty does not cover defects due to abuse, misuse, improper installation or modification.

Transit

If any items were damaged in transit, we ask that you report it to us within 7 working days. On their return they can be replaced or a refund issued via your original payment method.

Faulty on arrival

If your items are faulty on arrival, you should inform us within 14 days of delivery. Items should be returned in their original packaging when possible with a copy of original documentation. Once we have verified the fault, we will issue a replacement or full refund to you via your original payment method.

Items faulty in warranty period

If any of your purchases develop a fault within its warranty period it will need to be returned. Once the fault has been verified, a repair or exchange of goods will be issued. If goods are found to be in good working order a testing/administration charge of 15 + VAT and return postage will be made to the customer.

Items ordered in error

If an item has been ordered in error, you should inform us within 14 days of delivery. We will not accept returned goods without prior consent except under guarantee. A minimum restocking/administration charge of 5 + VAT will be made on returned goods.

Returns We want you to be happy with your purchase from Electrex World Limited however there may be certain instances when products may need to be returned.

International Returns

International returns must be marked as 'Return - Failed Sale on any customs documentation. If there are any customs fees to pay, we will deduct these from your refund/credit.

Notes

  1. All returns must be accompanied by a copy of the original invoice and a completed returns form which can be downloaded using the following link:
    RETURNS FORM
  2. Returns take approximately five business days to process upon receipt of the item.
  3. We are not responsible for the loss or damage of items during their return. Please note that the customer has a duty of care whilst the goods are in their possession and that they should be thoughtfully packaged for the return shipment.
  4. Buyer is responsible for any shipping charges when returning the item.
  5. When fitting electrical parts these can be damaged by the same faulty electrical system that caused the initial failure and in such circumstances these parts cannot be returned for refund.
  6. No refund can be given If the item is out of warranty, if the item is within warranty but has been subjected to conditions beyond their specification or the item has been fitted/used.

Return Address

Electrex World Limited Units 43-46 Vanalloys Business Park Stoke Row Oxfordshire RG9 5QW

2006-2016 Electrex World Ltd. All rights reserved. Home | Terms & Conditions

Registered in England & Wales Company Registration number 04306310. VAT number 785 299 174.


External RotorRO18595.00Product link
StatorEWST-0185-0000-TWIN95.00Product link
Adapter PlateAD18620.00Product link
CDIHT CDI55.00Product link
SwitchSW1120.00Product link
HT plugcapPLUGCAP4.00Product link

Husqvarna CR400, CR500, WR240, WR250, WR400, WR430 & WR500 1982-1988 CDI Ignition Stator Kit with Lighting - STK-185L
Husqvarna CR400, CR500, WR240, WR250, WR400, WR430 & WR500 (82-88) CDI Ignition Stator Kit with Lighting - (STK-185L)Crankshaft end measurement

Husqvarna CR400, CR500, WR240, WR250, WR400, WR430 & WR500 1982-1988 CDI Ignition Stator Kit with Lighting - STK-185L


Price (excl. vat): 235.00
(282.00 Including VAT at 20%)

Many of these items are made to order.
You will be advised on any delay.

Stator Kit Fits:

Husqvarna:WR240
WR250
CR400
WR400
WR430 (1982-1988)
CR500
WR500 (1982 to 1988)
Plus possibly early 250/390/400 Enduro

NOTE: Some models of CR400 have a mounting plate diameter of 130mm, for this type you will need another stator assembly. Phone for details.


NOTE: Please check crank end measurment before ordering - see table below:
14mm crankshaft | 110mm plate:
STK-185 (ignition) or STK-185L (lighting)

18.5mm crankshaft | 110mm plate:
STK-186 (ignition) or STK-186L (lighting) or STK-188 (ignition)

19.3mm crankshaft | 110mm plate:
STK-189 (ignition)


  • High energy self generating CDI ignition, sparking starts at 250rpm.
  • CDI ignition and lighting, electronic advance curve helps prevent kickback and damage to engine, foot or both, as timing is retarded at start-up.
  • The spark energy and the timing are produced by the stator coil. The exact advance curve is determined by the stator + CDI combination.
  • External rotor, weight approx. 1.1kg. for smooth power delivery.
  • Engraved rotor to enable easy timing set-up.
  • Ignition only version available STK-185, please see related product sbelow.
  • Manufactured in the UK.

Click the following link to download fitting instructions:
Download Instructions

Warranty

  • Road bike components - one year from the date of purchase
  • Off-road bike components - six months from the date of purchase
  • Race bike components - no warranty in line with industry practice
  • Any warranty does not cover defects due to abuse, misuse, improper installation or modification.

Transit

If any items were damaged in transit, we ask that you report it to us within 7 working days. On their return they can be replaced or a refund issued via your original payment method.

Faulty on arrival

If your items are faulty on arrival, you should inform us within 14 days of delivery. Items should be returned in their original packaging when possible with a copy of original documentation. Once we have verified the fault, we will issue a replacement or full refund to you via your original payment method.

Items faulty in warranty period

If any of your purchases develop a fault within its warranty period it will need to be returned. Once the fault has been verified, a repair or exchange of goods will be issued. If goods are found to be in good working order a testing/administration charge of 15 + VAT and return postage will be made to the customer.

Items ordered in error

If an item has been ordered in error, you should inform us within 14 days of delivery. We will not accept returned goods without prior consent except under guarantee. A minimum restocking/administration charge of 5 + VAT will be made on returned goods.

Returns We want you to be happy with your purchase from Electrex World Limited however there may be certain instances when products may need to be returned.

International Returns

International returns must be marked as 'Return - Failed Sale on any customs documentation. If there are any customs fees to pay, we will deduct these from your refund/credit.

Notes

  1. All returns must be accompanied by a copy of the original invoice and a completed returns form which can be downloaded using the following link:
    RETURNS FORM
  2. Returns take approximately five business days to process upon receipt of the item.
  3. We are not responsible for the loss or damage of items during their return. Please note that the customer has a duty of care whilst the goods are in their possession and that they should be thoughtfully packaged for the return shipment.
  4. Buyer is responsible for any shipping charges when returning the item.
  5. When fitting electrical parts these can be damaged by the same faulty electrical system that caused the initial failure and in such circumstances these parts cannot be returned for refund.
  6. No refund can be given If the item is out of warranty, if the item is within warranty but has been subjected to conditions beyond their specification or the item has been fitted/used.

Return Address

Electrex World Limited Units 43-46 Vanalloys Business Park Stoke Row Oxfordshire RG9 5QW

2006-2016 Electrex World Ltd. All rights reserved. Home | Terms & Conditions

Registered in England & Wales Company Registration number 04306310. VAT number 785 299 174.


External RotorRO18595.00Product link
StatorEWST-185L125.00Product link
Adapter PlateAD18620.00Product link
RegulatorRR121C60.50Product link
CDIHT CDI55.00Product link
SwitchSW1120.00Product link
HT plugcapPLUGCAP4.00Product link

Husqvarna 125-430 - 5 speed models 1967 on CDI Ignition System - STK-186
Husqvarna 125-430 - 5 speed models (1967 on) CDI Ignition System - (STK-186)Crankshaft measurement - (STK-186)

Husqvarna 125-430 - 5 speed models 1967 on CDI Ignition System - STK-186


Price (excl. vat): 215.00
(258.00 Including VAT at 20%)

Many of these items are made to order.
You will be advised on any delay.

Stator Kit Fits:

Husqvarna:125-430 - 5 speed models
(1967 onwards)

NOTE: Some models of CR400 have a mounting plate diameter of 130mm, for this type you will need another stator assembly. Phone for details.


NOTE: Please check crank end measurment before ordering - see table below:
14mm crankshaft | 110mm plate:
STK-185 (ignition) or STK-185L (lighting)

18.5mm crankshaft | 110mm plate:
STK-186 (ignition) or STK-186L (lighting) or STK-188 (ignition)

19.3mm crankshaft | 110mm plate:
STK-189 (ignition)


  • High energy self generating CDI ignition, sparking starts at 250rpm.
  • CDI ignition and lighting, electronic advance curve helps prevent kickback and damage to engine, foot or both, as timing is retarded at start-up.
  • The spark energy and the timing are produced by the stator coil. The exact advance curve is determined by the stator + CDI combination.
  • External rotor, weight approx. 1.1kg. for smooth power delivery.
  • Engraved rotor to enable easy timing set-up.
  • Ignition only version available, please see related product sbelow.
  • Manufactured in the UK.

NOTE: Timing is set as per the instructions to 8 BTDC, the ignition will then advance to 35 BTDC. Adjust as required by removing cover and moving plate.

Click the following link to download fitting instructions:
Download Instructions

Warranty

  • Road bike components - one year from the date of purchase
  • Off-road bike components - six months from the date of purchase
  • Race bike components - no warranty in line with industry practice
  • Any warranty does not cover defects due to abuse, misuse, improper installation or modification.

Transit

If any items were damaged in transit, we ask that you report it to us within 7 working days. On their return they can be replaced or a refund issued via your original payment method.

Faulty on arrival

If your items are faulty on arrival, you should inform us within 14 days of delivery. Items should be returned in their original packaging when possible with a copy of original documentation. Once we have verified the fault, we will issue a replacement or full refund to you via your original payment method.

Items faulty in warranty period

If any of your purchases develop a fault within its warranty period it will need to be returned. Once the fault has been verified, a repair or exchange of goods will be issued. If goods are found to be in good working order a testing/administration charge of 15 + VAT and return postage will be made to the customer.

Items ordered in error

If an item has been ordered in error, you should inform us within 14 days of delivery. We will not accept returned goods without prior consent except under guarantee. A minimum restocking/administration charge of 5 + VAT will be made on returned goods.

Returns We want you to be happy with your purchase from Electrex World Limited however there may be certain instances when products may need to be returned.

International Returns

International returns must be marked as 'Return - Failed Sale on any customs documentation. If there are any customs fees to pay, we will deduct these from your refund/credit.

Notes

  1. All returns must be accompanied by a copy of the original invoice and a completed returns form which can be downloaded using the following link:
    RETURNS FORM
  2. Returns take approximately five business days to process upon receipt of the item.
  3. We are not responsible for the loss or damage of items during their return. Please note that the customer has a duty of care whilst the goods are in their possession and that they should be thoughtfully packaged for the return shipment.
  4. Buyer is responsible for any shipping charges when returning the item.
  5. When fitting electrical parts these can be damaged by the same faulty electrical system that caused the initial failure and in such circumstances these parts cannot be returned for refund.
  6. No refund can be given If the item is out of warranty, if the item is within warranty but has been subjected to conditions beyond their specification or the item has been fitted/used.

Return Address

Electrex World Limited Units 43-46 Vanalloys Business Park Stoke Row Oxfordshire RG9 5QW

2006-2016 Electrex World Ltd. All rights reserved. Home | Terms & Conditions

Registered in England & Wales Company Registration number 04306310. VAT number 785 299 174.


External RotorRO18695.00Product link
StatorEWST-0185-0000-TWIN95.00Product link
CDIHT CDI55.00Product link
SwitchSW1120.00Product link
HT plugcapPLUGCAP4.00Product link

Husqvarna 125-430 - 5 speed models 1967 on CDI Ignition System - STK-186L
Husqvarna 125-430 - 5 speed models (1967 on) CDI Ignition System - (STK-186L)Crankshaft measurement - (STK-186L)

Husqvarna 125-430 - 5 speed models 1967 on CDI Ignition System - STK-186L


Price (excl. vat): 235.00
(282.00 Including VAT at 20%)

Many of these items are made to order.
You will be advised on any delay.

Stator Kit Fits:

Husqvarna:125-430 - 5 speed models
(1967 onwards)

NOTE: Some models of CR400 have a mounting plate diameter of 130mm, for this type you will need another stator assembly. Phone for details.


NOTE: Please check crank end measurment before ordering - see table below:
14mm crankshaft | 110mm plate:
STK-185 (ignition) or STK-185L (lighting)

18.5mm crankshaft | 110mm plate:
STK-186 (ignition) or STK-186L (lighting) or STK-188 (ignition)

19.3mm crankshaft | 110mm plate:
STK-189 (ignition)


  • High energy self generating CDI ignition, sparking starts at 250rpm.
  • CDI ignition and lighting, electronic advance curve helps prevent kickback and damage to engine, foot or both, as timing is retarded at start-up.
  • The spark energy and the timing are produced by the stator coil. The exact advance curve is determined by the stator + CDI combination.
  • External rotor, weight approx. 1.1kg. for smooth power delivery.
  • Engraved rotor to enable easy timing set-up.
  • Ignition only version available, please see related product sbelow.
  • Manufactured in the UK.

NOTE: Timing is set as per the instructions to 8 BTDC, the ignition will then advance to 35 BTDC. Adjust as required by removing cover and moving plate.

Click the following link to download fitting instructions:
Download Instructions

Warranty

  • Road bike components - one year from the date of purchase
  • Off-road bike components - six months from the date of purchase
  • Race bike components - no warranty in line with industry practice
  • Any warranty does not cover defects due to abuse, misuse, improper installation or modification.

Transit

If any items were damaged in transit, we ask that you report it to us within 7 working days. On their return they can be replaced or a refund issued via your original payment method.

Faulty on arrival

If your items are faulty on arrival, you should inform us within 14 days of delivery. Items should be returned in their original packaging when possible with a copy of original documentation. Once we have verified the fault, we will issue a replacement or full refund to you via your original payment method.

Items faulty in warranty period

If any of your purchases develop a fault within its warranty period it will need to be returned. Once the fault has been verified, a repair or exchange of goods will be issued. If goods are found to be in good working order a testing/administration charge of 15 + VAT and return postage will be made to the customer.

Items ordered in error

If an item has been ordered in error, you should inform us within 14 days of delivery. We will not accept returned goods without prior consent except under guarantee. A minimum restocking/administration charge of 5 + VAT will be made on returned goods.

Returns We want you to be happy with your purchase from Electrex World Limited however there may be certain instances when products may need to be returned.

International Returns

International returns must be marked as 'Return - Failed Sale on any customs documentation. If there are any customs fees to pay, we will deduct these from your refund/credit.

Notes

  1. All returns must be accompanied by a copy of the original invoice and a completed returns form which can be downloaded using the following link:
    RETURNS FORM
  2. Returns take approximately five business days to process upon receipt of the item.
  3. We are not responsible for the loss or damage of items during their return. Please note that the customer has a duty of care whilst the goods are in their possession and that they should be thoughtfully packaged for the return shipment.
  4. Buyer is responsible for any shipping charges when returning the item.
  5. When fitting electrical parts these can be damaged by the same faulty electrical system that caused the initial failure and in such circumstances these parts cannot be returned for refund.
  6. No refund can be given If the item is out of warranty, if the item is within warranty but has been subjected to conditions beyond their specification or the item has been fitted/used.

Return Address

Electrex World Limited Units 43-46 Vanalloys Business Park Stoke Row Oxfordshire RG9 5QW

2006-2016 Electrex World Ltd. All rights reserved. Home | Terms & Conditions

Registered in England & Wales Company Registration number 04306310. VAT number 785 299 174.


External RotorRO18695.00Product link
StatorEWST-185L125.00Product link
Regulator RectifierRR121C60.50Product link
CDIHT CDI55.00Product link
SwitchSW1120.00Product link
HT plugcapPLUGCAP4.00Product link

Husqvarna 360cc early models upto 1980 - Crankshaft size 18.5mm - CDI Ignition System - STK-188
Husqvarna Early Models upto 1980 - Crankshaft size 18.5mm - CDI Ignition System - STK-188Crankshaft size 18.5mm - STK-188

Husqvarna 360cc early models upto 1980 - Crankshaft size 18.5mm - CDI Ignition System - STK-188


Price (excl. vat): 215.00
(258.00 Including VAT at 20%)

Many of these items are made to order.
You will be advised on any delay.

Stator Kit Fits:

Husqvarna:360cc 1980
(fits many more models)

NOTE: Some models of CR400 have a mounting plate diameter of 130mm, for this type you will need another stator assembly. Phone for details.


NOTE: Please check crank end measurment before ordering - see table below:
14mm crankshaft | 110mm plate:
STK-185 (ignition) or STK-185L (lighting)

18.5mm crankshaft | 110mm plate:
STK-186 (ignition) or STK-186L (lighting) or STK-188 (ignition)

19.3mm crankshaft | 110mm plate:
STK-189 (ignition)


  • High energy self generating CDI ignition, sparking starts at 250rpm.
  • CDI ignition and lighting, electronic advance curve helps prevent kickback and damage to engine, foot or both, as timing is retarded at start-up.
  • The spark energy and the timing are produced by the stator coil. The exact advance curve is determined by the stator + CDI combination.
  • External rotor, weight approx. 1.1kg. for smooth power delivery.
  • Engraved rotor to enable easy timing set-up.
  • Ignition only version available, please see related product sbelow.
  • Manufactured in the UK.

NOTE: Timing is set as per the instructions to 8 BTDC, the ignition will then advance to 35 BTDC. Adjust as required by removing cover and moving plate.

Click the following link to download fitting instructions:
Download Instructions

Warranty

  • Road bike components - one year from the date of purchase
  • Off-road bike components - six months from the date of purchase
  • Race bike components - no warranty in line with industry practice
  • Any warranty does not cover defects due to abuse, misuse, improper installation or modification.

Transit

If any items were damaged in transit, we ask that you report it to us within 7 working days. On their return they can be replaced or a refund issued via your original payment method.

Faulty on arrival

If your items are faulty on arrival, you should inform us within 14 days of delivery. Items should be returned in their original packaging when possible with a copy of original documentation. Once we have verified the fault, we will issue a replacement or full refund to you via your original payment method.

Items faulty in warranty period

If any of your purchases develop a fault within its warranty period it will need to be returned. Once the fault has been verified, a repair or exchange of goods will be issued. If goods are found to be in good working order a testing/administration charge of 15 + VAT and return postage will be made to the customer.

Items ordered in error

If an item has been ordered in error, you should inform us within 14 days of delivery. We will not accept returned goods without prior consent except under guarantee. A minimum restocking/administration charge of 5 + VAT will be made on returned goods.

Returns We want you to be happy with your purchase from Electrex World Limited however there may be certain instances when products may need to be returned.

International Returns

International returns must be marked as 'Return - Failed Sale on any customs documentation. If there are any customs fees to pay, we will deduct these from your refund/credit.

Notes

  1. All returns must be accompanied by a copy of the original invoice and a completed returns form which can be downloaded using the following link:
    RETURNS FORM
  2. Returns take approximately five business days to process upon receipt of the item.
  3. We are not responsible for the loss or damage of items during their return. Please note that the customer has a duty of care whilst the goods are in their possession and that they should be thoughtfully packaged for the return shipment.
  4. Buyer is responsible for any shipping charges when returning the item.
  5. When fitting electrical parts these can be damaged by the same faulty electrical system that caused the initial failure and in such circumstances these parts cannot be returned for refund.
  6. No refund can be given If the item is out of warranty, if the item is within warranty but has been subjected to conditions beyond their specification or the item has been fitted/used.

Return Address

Electrex World Limited Units 43-46 Vanalloys Business Park Stoke Row Oxfordshire RG9 5QW

2006-2016 Electrex World Ltd. All rights reserved. Home | Terms & Conditions

Registered in England & Wales Company Registration number 04306310. VAT number 785 299 174.


External RotorRO18895.00Product link
StatorEWST-0185-0000-TWIN95.00Product link
CDIHT CDI55.00Product link
SwitchSW1120.00Product link
HT plugcapPLUGCAP4.00Product link

Husqvarna Early Models - Crankshaft size 19.3mm - CDI Ignition System - STK-189
Husqvarna Early Models - Crankshaft size 19.3mm - CDI Ignition System - STK-189Crankshaft size 18.5mm - STK-189

Husqvarna Early Models - Crankshaft size 19.3mm - CDI Ignition System - STK-189


Price (excl. vat): 215.00
(258.00 Including VAT at 20%)

Many of these items are made to order.
You will be advised on any delay.

Stator Kit Fits:

Husqvarna:CR250 (1973)
(fits many more models)

NOTE: Some models of CR400 have a mounting plate diameter of 130mm, for this type you will need another stator assembly. Phone for details.


NOTE: Please check crank end measurment before ordering - see table below:
14mm crankshaft | 110mm plate:
STK-185 (ignition) or STK-185L (lighting)

18.5mm crankshaft | 110mm plate:
STK-186 (ignition) or STK-186L (lighting) or STK-188 (ignition)

19.3mm crankshaft | 110mm plate:
STK-189 (ignition)


  • High energy self generating CDI ignition, sparking starts at 250rpm.
  • CDI ignition and lighting, electronic advance curve helps prevent kickback and damage to engine, foot or both, as timing is retarded at start-up.
  • The spark energy and the timing are produced by the stator coil. The exact advance curve is determined by the stator + CDI combination.
  • External rotor, weight approx. 1.1kg. for smooth power delivery.
  • Engraved rotor to enable easy timing set-up.
  • Ignition only version available, please see related product sbelow.
  • Manufactured in the UK.

NOTE: Timing is set as per the instructions to 8 BTDC, the ignition will then advance to 35 BTDC. Adjust as required by removing cover and moving plate.

Click the following link to download fitting instructions:
Download Instructions

Warranty

  • Road bike components - one year from the date of purchase
  • Off-road bike components - six months from the date of purchase
  • Race bike components - no warranty in line with industry practice
  • Any warranty does not cover defects due to abuse, misuse, improper installation or modification.

Transit

If any items were damaged in transit, we ask that you report it to us within 7 working days. On their return they can be replaced or a refund issued via your original payment method.

Faulty on arrival

If your items are faulty on arrival, you should inform us within 14 days of delivery. Items should be returned in their original packaging when possible with a copy of original documentation. Once we have verified the fault, we will issue a replacement or full refund to you via your original payment method.

Items faulty in warranty period

If any of your purchases develop a fault within its warranty period it will need to be returned. Once the fault has been verified, a repair or exchange of goods will be issued. If goods are found to be in good working order a testing/administration charge of 15 + VAT and return postage will be made to the customer.

Items ordered in error

If an item has been ordered in error, you should inform us within 14 days of delivery. We will not accept returned goods without prior consent except under guarantee. A minimum restocking/administration charge of 5 + VAT will be made on returned goods.

Returns We want you to be happy with your purchase from Electrex World Limited however there may be certain instances when products may need to be returned.

International Returns

International returns must be marked as 'Return - Failed Sale on any customs documentation. If there are any customs fees to pay, we will deduct these from your refund/credit.

Notes

  1. All returns must be accompanied by a copy of the original invoice and a completed returns form which can be downloaded using the following link:
    RETURNS FORM
  2. Returns take approximately five business days to process upon receipt of the item.
  3. We are not responsible for the loss or damage of items during their return. Please note that the customer has a duty of care whilst the goods are in their possession and that they should be thoughtfully packaged for the return shipment.
  4. Buyer is responsible for any shipping charges when returning the item.
  5. When fitting electrical parts these can be damaged by the same faulty electrical system that caused the initial failure and in such circumstances these parts cannot be returned for refund.
  6. No refund can be given If the item is out of warranty, if the item is within warranty but has been subjected to conditions beyond their specification or the item has been fitted/used.

Return Address

Electrex World Limited Units 43-46 Vanalloys Business Park Stoke Row Oxfordshire RG9 5QW

2006-2016 Electrex World Ltd. All rights reserved. Home | Terms & Conditions

Registered in England & Wales Company Registration number 04306310. VAT number 785 299 174.


External RotorRO18995.00Product link
StatorEWST-0185-0000-TWIN95.00Product link
CDIHT CDI55.00Product link
SwitchSW1120.00Product link
HT plugcapPLUGCAP4.00Product link

Triumph Tiger Cub T20, T20S Internal Rotor Stator Kit - STK-200
Triumph Tiger Cub T20, T20S Internal Rotor Stator Kit - (STK-200)Stator in case - (STK-200)

Triumph Tiger Cub T20, T20S Internal Rotor Stator Kit - STK-200


Price (excl. vat): 175.00
(210.00 Including VAT at 20%)

Many of these items are made to order.
You will be advised on any delay.

Stator Kit Fits:

Triumph:Tiger CubT20
T20S

NOTE: All models of Tiger Cub have a 5/8" crankshaft to mount the alternator rotor. Models after 1962 have an adaptor sleeve with slot to fit rotor, which now has a 3/4" bore - this is a strange idea. So for the pre-1962 models you will require an adaptor sleeve for later models to enable the STK-200 kit to fit - our part No: ADP200, see below in related products.


  • Simple to fit, no machining required.
  • High energy self generating cdi ignition system located in place of the original Wipac alternator in the LH cover.
  • The stator is designed for operation within the engine environment.
  • The stator produces the energy and timing signal which feed the combined cdi, producing a high voltage spark, very easy starting at 250rpm.
  • Ignition advance is automatic which gives excellent performance throughout the rev range and is specifically made for Tiger Cub trials engines.
  • Manufactured in the UK.

NOTE: Timing is set as per the instructions to 8 BTDC, the ignition will then advance to 35 BTDC. Adjust as required by removing cover and moving plate.

Click the following link to download fitting instructions:
Download Instructions

Warranty

  • Road bike components - one year from the date of purchase
  • Off-road bike components - six months from the date of purchase
  • Race bike components - no warranty in line with industry practice
  • Any warranty does not cover defects due to abuse, misuse, improper installation or modification.

Transit

If any items were damaged in transit, we ask that you report it to us within 7 working days. On their return they can be replaced or a refund issued via your original payment method.

Faulty on arrival

If your items are faulty on arrival, you should inform us within 14 days of delivery. Items should be returned in their original packaging when possible with a copy of original documentation. Once we have verified the fault, we will issue a replacement or full refund to you via your original payment method.

Items faulty in warranty period

If any of your purchases develop a fault within its warranty period it will need to be returned. Once the fault has been verified, a repair or exchange of goods will be issued. If goods are found to be in good working order a testing/administration charge of 15 + VAT and return postage will be made to the customer.

Items ordered in error

If an item has been ordered in error, you should inform us within 14 days of delivery. We will not accept returned goods without prior consent except under guarantee. A minimum restocking/administration charge of 5 + VAT will be made on returned goods.

Returns We want you to be happy with your purchase from Electrex World Limited however there may be certain instances when products may need to be returned.

International Returns

International returns must be marked as 'Return - Failed Sale on any customs documentation. If there are any customs fees to pay, we will deduct these from your refund/credit.

Notes

  1. All returns must be accompanied by a copy of the original invoice and a completed returns form which can be downloaded using the following link:
    RETURNS FORM
  2. Returns take approximately five business days to process upon receipt of the item.
  3. We are not responsible for the loss or damage of items during their return. Please note that the customer has a duty of care whilst the goods are in their possession and that they should be thoughtfully packaged for the return shipment.
  4. Buyer is responsible for any shipping charges when returning the item.
  5. When fitting electrical parts these can be damaged by the same faulty electrical system that caused the initial failure and in such circumstances these parts cannot be returned for refund.
  6. No refund can be given If the item is out of warranty, if the item is within warranty but has been subjected to conditions beyond their specification or the item has been fitted/used.

Return Address

Electrex World Limited Units 43-46 Vanalloys Business Park Stoke Row Oxfordshire RG9 5QW

2006-2016 Electrex World Ltd. All rights reserved. Home | Terms & Conditions

Registered in England & Wales Company Registration number 04306310. VAT number 785 299 174.


Internal RotorIR2055.00Product link
StatorEWST-020075.00Product link
CDIHT CDI55.00Product link
SwitchSW1120.00Product link
HT plugcapPLUGCAP4.00Product link

many thanks for the prompt service in sending me the rotor which is now installed and the bike starts first kick every time! I have spoken to Chris at Meriden Off Road to update him on the situation.


I don't know if you are aware but Chris recently set two new world records at Pendine Sands on a Tiger Cub using Electrexworld STK-200 ignition



June 2017


----------------------------------------------------------------------------------------------------------------


Product delivered next day, fitting instructions easy to understand, bike fired up first kick!!!! Superb service and quality.



May 2016


Triumph Tiger Cub Ignition & Lighting Kit - STK-200L

Triumph Tiger Cub Ignition & Lighting Kit - STK-200L


Price (excl. vat): 235.00
(282.00 Including VAT at 20%)

Many of these items are made to order.
You will be advised on any delay.

Stator Kit Fits:

Triumph:Tiger Cub
  • For greater energy efficiency we recommend using LED bulbs.
  • Simple to fit.
  • Self generating cdi ignition system located in place of the original Wipac alternator in the LH cover.
  • The stator is designed for operation within the engine environment.
  • Ignition advance is electronic which gives excellent performance throughout the rev range and is specifically made for Tiger Cub trials engines.
  • Easy starting and maintenance free.
  • Manufactured in the UK.

Click the following link to download fitting instructions:
Download Instructions

Warranty

  • Road bike components - one year from the date of purchase
  • Off-road bike components - six months from the date of purchase
  • Race bike components - no warranty in line with industry practice
  • Any warranty does not cover defects due to abuse, misuse, improper installation or modification.

Transit

If any items were damaged in transit, we ask that you report it to us within 7 working days. On their return they can be replaced or a refund issued via your original payment method.

Faulty on arrival

If your items are faulty on arrival, you should inform us within 14 days of delivery. Items should be returned in their original packaging when possible with a copy of original documentation. Once we have verified the fault, we will issue a replacement or full refund to you via your original payment method.

Items faulty in warranty period

If any of your purchases develop a fault within its warranty period it will need to be returned. Once the fault has been verified, a repair or exchange of goods will be issued. If goods are found to be in good working order a testing/administration charge of 15 + VAT and return postage will be made to the customer.

Items ordered in error

If an item has been ordered in error, you should inform us within 14 days of delivery. We will not accept returned goods without prior consent except under guarantee. A minimum restocking/administration charge of 5 + VAT will be made on returned goods.

Returns We want you to be happy with your purchase from Electrex World Limited however there may be certain instances when products may need to be returned.

International Returns

International returns must be marked as 'Return - Failed Sale on any customs documentation. If there are any customs fees to pay, we will deduct these from your refund/credit.

Notes

  1. All returns must be accompanied by a copy of the original invoice and a completed returns form which can be downloaded using the following link:
    RETURNS FORM
  2. Returns take approximately five business days to process upon receipt of the item.
  3. We are not responsible for the loss or damage of items during their return. Please note that the customer has a duty of care whilst the goods are in their possession and that they should be thoughtfully packaged for the return shipment.
  4. Buyer is responsible for any shipping charges when returning the item.
  5. When fitting electrical parts these can be damaged by the same faulty electrical system that caused the initial failure and in such circumstances these parts cannot be returned for refund.
  6. No refund can be given If the item is out of warranty, if the item is within warranty but has been subjected to conditions beyond their specification or the item has been fitted/used.

Return Address

Electrex World Limited Units 43-46 Vanalloys Business Park Stoke Row Oxfordshire RG9 5QW

2006-2016 Electrex World Ltd. All rights reserved. Home | Terms & Conditions

Registered in England & Wales Company Registration number 04306310. VAT number 785 299 174.


Internal RotorIR2055.00Product link
StatorEWST-200L-0000-0000150.00Product link
Regulator RectifierRR0254.00Product link
CDICD001071.50Product link
CDIHT5530.00Product link
SwitchSW1120.00Product link
HT plugcapPLUGCAP4.00Product link

many thanks for the prompt service in sending me the rotor which is now installed and the bike starts first kick every time! I have spoken to Chris at Meriden Off Road to update him on the situation.


I don't know if you are aware but Chris recently set two new world records at Pendine Sands on a Tiger Cub using Electrexworld STK-200 ignition



June 2017


----------------------------------------------------------------------------------------------------------------


Product delivered next day, fitting instructions easy to understand, bike fired up first kick!!!! Superb service and quality.



May 2016


Triumph Tiger Cub Internal Rotor Stator Kit - STK-202
Triumph Tiger Cub Internal Rotor Stator Kit - (STK-202)Rotor assembly using keyless taper lock system - (STK-202)STK-202 wiring diagram

Triumph Tiger Cub Internal Rotor Stator Kit - STK-202


Price (excl. vat): 175.00
(210.00 Including VAT at 20%)

Many of these items are made to order.
You will be advised on any delay.

Stator Kit Fits:

Triumph:Tiger Cub

Kit replaces an existing PVL system


NOTE: For pre 1962 models a rotor adaptor will be required, this is an optional part - ref BP200 - see related products below.


NOTE: Optional base plate AD202 - Allows fitting to x 3 studs - see related products below.


  • Simple to fit, no machining required.
  • High energy self generating cdi ignition system.
  • Direct fitting onto the engine where the crankcase has been machined to accept x3 studs with PCD (pitch circle diameter) of 81mm.
  • This kit is commonly supplied as a direct replacement for a PVL system.
  • The stator is designed for operation within the engine environment.
  • The stator produces the energy and timing signal which feed the combined cdi, producing a high voltage spark, very easy starting at 250rpm.
  • Ignition advance is automatic which gives excellent performance throughout the rev range and is specifically made for Tiger Cub trials engines.
  • Manufactured in the UK.

Click the following link to download fitting instructions:
Download Instructions

Warranty

  • Road bike components - one year from the date of purchase
  • Off-road bike components - six months from the date of purchase
  • Race bike components - no warranty in line with industry practice
  • Any warranty does not cover defects due to abuse, misuse, improper installation or modification.

Transit

If any items were damaged in transit, we ask that you report it to us within 7 working days. On their return they can be replaced or a refund issued via your original payment method.

Faulty on arrival

If your items are faulty on arrival, you should inform us within 14 days of delivery. Items should be returned in their original packaging when possible with a copy of original documentation. Once we have verified the fault, we will issue a replacement or full refund to you via your original payment method.

Items faulty in warranty period

If any of your purchases develop a fault within its warranty period it will need to be returned. Once the fault has been verified, a repair or exchange of goods will be issued. If goods are found to be in good working order a testing/administration charge of 15 + VAT and return postage will be made to the customer.

Items ordered in error

If an item has been ordered in error, you should inform us within 14 days of delivery. We will not accept returned goods without prior consent except under guarantee. A minimum restocking/administration charge of 5 + VAT will be made on returned goods.

Returns We want you to be happy with your purchase from Electrex World Limited however there may be certain instances when products may need to be returned.

International Returns

International returns must be marked as 'Return - Failed Sale on any customs documentation. If there are any customs fees to pay, we will deduct these from your refund/credit.

Notes

  1. All returns must be accompanied by a copy of the original invoice and a completed returns form which can be downloaded using the following link:
    RETURNS FORM
  2. Returns take approximately five business days to process upon receipt of the item.
  3. We are not responsible for the loss or damage of items during their return. Please note that the customer has a duty of care whilst the goods are in their possession and that they should be thoughtfully packaged for the return shipment.
  4. Buyer is responsible for any shipping charges when returning the item.
  5. When fitting electrical parts these can be damaged by the same faulty electrical system that caused the initial failure and in such circumstances these parts cannot be returned for refund.
  6. No refund can be given If the item is out of warranty, if the item is within warranty but has been subjected to conditions beyond their specification or the item has been fitted/used.

Return Address

Electrex World Limited Units 43-46 Vanalloys Business Park Stoke Row Oxfordshire RG9 5QW

2006-2016 Electrex World Ltd. All rights reserved. Home | Terms & Conditions

Registered in England & Wales Company Registration number 04306310. VAT number 785 299 174.


Internal RotorIR10T55.00Product link
StatorEWST-0090-HTCD75.00Product link
HT CoilHT-CDI55.00Product link
SwitchSW1120.00Product link
HT plugcapPLUGCAP4.00Product link

Honda  XL250 K0, XL250 K1, XL250 K2, XL250 Motosport, XL350K CDI Ignition Stator Kit - STK-205

Honda XL250 K0, XL250 K1, XL250 K2, XL250 Motosport, XL350K CDI Ignition Stator Kit - STK-205


Price (excl. vat): 175.00
(210.00 Including VAT at 20%)

Many of these items are made to order.
You will be advised on any delay.

Stator Kit Fits:

Honda:XL250 (1972-1977)
XL250 K0 (XL250K0)
XL250 K1 (XL250K1)
XL250 K2 (XL250K2)
XL250 Motosport
XL350 (1974-1978)

NOTE: This kit is not suitable for later models i.e XL250S.

  • Self generating CDI ignition eliminates requirement for a battery, points or distributor.
  • CDI Ignition has a smooth advance for performance and easy starting even when hot.
  • The spark energy and the timing are produced by the stator coil. The exact advance curve is determined by the stator + CDI combination.
  • Simple fitting designed to work with the original flywheel/rotor.
  • One piece combined CDI & HT coil, only two cables to connect.
  • Manufactured in the UK.

Click the following link to download fitting instructions:
Download Instructions

Warranty

  • Road bike components - one year from the date of purchase
  • Off-road bike components - six months from the date of purchase
  • Race bike components - no warranty in line with industry practice
  • Any warranty does not cover defects due to abuse, misuse, improper installation or modification.

Transit

If any items were damaged in transit, we ask that you report it to us within 7 working days. On their return they can be replaced or a refund issued via your original payment method.

Faulty on arrival

If your items are faulty on arrival, you should inform us within 14 days of delivery. Items should be returned in their original packaging when possible with a copy of original documentation. Once we have verified the fault, we will issue a replacement or full refund to you via your original payment method.

Items faulty in warranty period

If any of your purchases develop a fault within its warranty period it will need to be returned. Once the fault has been verified, a repair or exchange of goods will be issued. If goods are found to be in good working order a testing/administration charge of 15 + VAT and return postage will be made to the customer.

Items ordered in error

If an item has been ordered in error, you should inform us within 14 days of delivery. We will not accept returned goods without prior consent except under guarantee. A minimum restocking/administration charge of 5 + VAT will be made on returned goods.

Returns We want you to be happy with your purchase from Electrex World Limited however there may be certain instances when products may need to be returned.

International Returns

International returns must be marked as 'Return - Failed Sale on any customs documentation. If there are any customs fees to pay, we will deduct these from your refund/credit.

Notes

  1. All returns must be accompanied by a copy of the original invoice and a completed returns form which can be downloaded using the following link:
    RETURNS FORM
  2. Returns take approximately five business days to process upon receipt of the item.
  3. We are not responsible for the loss or damage of items during their return. Please note that the customer has a duty of care whilst the goods are in their possession and that they should be thoughtfully packaged for the return shipment.
  4. Buyer is responsible for any shipping charges when returning the item.
  5. When fitting electrical parts these can be damaged by the same faulty electrical system that caused the initial failure and in such circumstances these parts cannot be returned for refund.
  6. No refund can be given If the item is out of warranty, if the item is within warranty but has been subjected to conditions beyond their specification or the item has been fitted/used.

Return Address

Electrex World Limited Units 43-46 Vanalloys Business Park Stoke Row Oxfordshire RG9 5QW

2006-2016 Electrex World Ltd. All rights reserved. Home | Terms & Conditions

Registered in England & Wales Company Registration number 04306310. VAT number 785 299 174.


StatorEWST-0205-0000-000090.00Product link
Adapter PlateAD1025B20.00Product link
HT CoilHT-CDI55.00Product link
SwitchSW1120.00Product link
HT plugcapPLUGCAP4.00Product link

Honda XL250K, XL250 Motosport, XL350 CDI Lighting/Ignition Stator Kit - STK-205L

Honda XL250K, XL250 Motosport, XL350 CDI Lighting/Ignition Stator Kit - STK-205L


Price (excl. vat): 195.00
(234.00 Including VAT at 20%)

Many of these items are made to order.
You will be advised on any delay.

Stator Kit Fits:

Honda:XL250 (1972-1977)
XL250 K0 (XL250K0)
XL250 K1 (XL250K1)
XL250 K2 (XL250K2)
XL250 Motosport
XL350 (1974-1978)
  • Self generating CDI ignition eliminates requirement for a battery, points or distributor.
  • CDI Ignition has a smooth advance for performance and easy starting even when hot.
  • The spark energy and the timing are produced by the stator coil. The exact advance curve is determined by the stator + CDI combination.
  • Simple fitting designed to work with the original flywheel/rotor.
  • One piece combined CDI & HT coil, only two cables to connect.
  • 12v DC lighting kit enabling the use of LED lights with a capacitor (choose Power pack option from the list above the 'Add to Basket' box) or small battery.
  • Manufactured in the UK.

Click the following link to download fitting instructions:
Download Instructions

Warranty

  • Road bike components - one year from the date of purchase
  • Off-road bike components - six months from the date of purchase
  • Race bike components - no warranty in line with industry practice
  • Any warranty does not cover defects due to abuse, misuse, improper installation or modification.

Transit

If any items were damaged in transit, we ask that you report it to us within 7 working days. On their return they can be replaced or a refund issued via your original payment method.

Faulty on arrival

If your items are faulty on arrival, you should inform us within 14 days of delivery. Items should be returned in their original packaging when possible with a copy of original documentation. Once we have verified the fault, we will issue a replacement or full refund to you via your original payment method.

Items faulty in warranty period

If any of your purchases develop a fault within its warranty period it will need to be returned. Once the fault has been verified, a repair or exchange of goods will be issued. If goods are found to be in good working order a testing/administration charge of 15 + VAT and return postage will be made to the customer.

Items ordered in error

If an item has been ordered in error, you should inform us within 14 days of delivery. We will not accept returned goods without prior consent except under guarantee. A minimum restocking/administration charge of 5 + VAT will be made on returned goods.

Returns We want you to be happy with your purchase from Electrex World Limited however there may be certain instances when products may need to be returned.

International Returns

International returns must be marked as 'Return - Failed Sale on any customs documentation. If there are any customs fees to pay, we will deduct these from your refund/credit.

Notes

  1. All returns must be accompanied by a copy of the original invoice and a completed returns form which can be downloaded using the following link:
    RETURNS FORM
  2. Returns take approximately five business days to process upon receipt of the item.
  3. We are not responsible for the loss or damage of items during their return. Please note that the customer has a duty of care whilst the goods are in their possession and that they should be thoughtfully packaged for the return shipment.
  4. Buyer is responsible for any shipping charges when returning the item.
  5. When fitting electrical parts these can be damaged by the same faulty electrical system that caused the initial failure and in such circumstances these parts cannot be returned for refund.
  6. No refund can be given If the item is out of warranty, if the item is within warranty but has been subjected to conditions beyond their specification or the item has been fitted/used.

Return Address

Electrex World Limited Units 43-46 Vanalloys Business Park Stoke Row Oxfordshire RG9 5QW

2006-2016 Electrex World Ltd. All rights reserved. Home | Terms & Conditions

Registered in England & Wales Company Registration number 04306310. VAT number 785 299 174.


StatorEWST-205L-0000-000090.00Product link
Adapter PlateAD1025B20.00Product link
Regulator RectifierRR12049.50Product link
HT CoilHT-CDI55.00Product link
SwitchSW1120.00Product link
HT plugcapPLUGCAP4.00Product link

People who bought this also bought:

  1. Internal rotor Flywheel Puller - FP-10 (Ref: FP-10)

Fantic Trials 300, 301 Trials Stator Kit - STK-300

Fantic Trials 300, 301 Trials Stator Kit - STK-300


Price (excl. vat): 295.00
(354.00 Including VAT at 20%)

Many of these items are made to order.
You will be advised on any delay.

Stator Kit Fits:

Fantic241
243
300 Trials
301 Trials
303

CDI ignition for strong reliable spark, starting at only 150rpm.


  • An external pick-up is used, this allows easy and precise timing set-up and stable performance.
  • Flywheel is a 2 piece solid alloy steel construction + magnet ring, with almost perfect balance by design.
  • With the outer flywheel removed initial timing set up and adjustment is easily achieved.
  • Total flywheel mass of 3.9kg (original Fantic 3.6kg).
  • Optional handlebar switchable ignition to adjust advance, depending on conditions.
  • Optional lighting .
  • Manufactured in the UK.

Click the following link to download fitting instructions:
Download Instructions

Warranty

  • Road bike components - one year from the date of purchase
  • Off-road bike components - six months from the date of purchase
  • Race bike components - no warranty in line with industry practice
  • Any warranty does not cover defects due to abuse, misuse, improper installation or modification.

Transit

If any items were damaged in transit, we ask that you report it to us within 7 working days. On their return they can be replaced or a refund issued via your original payment method.

Faulty on arrival

If your items are faulty on arrival, you should inform us within 14 days of delivery. Items should be returned in their original packaging when possible with a copy of original documentation. Once we have verified the fault, we will issue a replacement or full refund to you via your original payment method.

Items faulty in warranty period

If any of your purchases develop a fault within its warranty period it will need to be returned. Once the fault has been verified, a repair or exchange of goods will be issued. If goods are found to be in good working order a testing/administration charge of 15 + VAT and return postage will be made to the customer.

Items ordered in error

If an item has been ordered in error, you should inform us within 14 days of delivery. We will not accept returned goods without prior consent except under guarantee. A minimum restocking/administration charge of 5 + VAT will be made on returned goods.

Returns We want you to be happy with your purchase from Electrex World Limited however there may be certain instances when products may need to be returned.

International Returns

International returns must be marked as 'Return - Failed Sale on any customs documentation. If there are any customs fees to pay, we will deduct these from your refund/credit.

Notes

  1. All returns must be accompanied by a copy of the original invoice and a completed returns form which can be downloaded using the following link:
    RETURNS FORM
  2. Returns take approximately five business days to process upon receipt of the item.
  3. We are not responsible for the loss or damage of items during their return. Please note that the customer has a duty of care whilst the goods are in their possession and that they should be thoughtfully packaged for the return shipment.
  4. Buyer is responsible for any shipping charges when returning the item.
  5. When fitting electrical parts these can be damaged by the same faulty electrical system that caused the initial failure and in such circumstances these parts cannot be returned for refund.
  6. No refund can be given If the item is out of warranty, if the item is within warranty but has been subjected to conditions beyond their specification or the item has been fitted/used.

Return Address

Electrex World Limited Units 43-46 Vanalloys Business Park Stoke Row Oxfordshire RG9 5QW

2006-2016 Electrex World Ltd. All rights reserved. Home | Terms & Conditions

Registered in England & Wales Company Registration number 04306310. VAT number 785 299 174.


RotorRO3095.00Product link
StatorEWST-0300180.00Product link
HT CoilHT-CDI-745.00Product link
SwitchSW1120.00Product link
HT plugcapPLUGCAP4.00Product link

Kawasaki Z1000J, Z1000K, Z1000R, KZ1000, Z1100R, GPZ1100 Ignition Stator Kit - STK-312
Kawasaki Z1000J, Z1000K, Z1000R, KZ1000, Z1100R, GPZ1100 Ignition Stator Kit - (STK-312)End of crankshaft measurement 19.4mm - (STK-312)Stator and rotor in position on plate - (STK-312)Circuit drawing for one pair of cylinders only - (STK-312)
Advance curve - (STK-312)

Kawasaki Z1000J, Z1000K, Z1000R, KZ1000, Z1100R, GPZ1100 Ignition Stator Kit - STK-312


Price (excl. vat): 395.00
(474.00 Including VAT at 20%)

Many of these items are made to order.
You will be advised on any delay.

Stator Kit Fits:

Kawasaki:Z1000J
Z1000K
Z1000R
KZ1000
Z1100R
GPZ1100

Crankshaft diameter of 19.4mm


Race ignition system. Self generating digital pre-programmed CDI, producing high spark energy with optimum advance for 4 stroke engines. Optional user adjustable rev. limiter available.


NOTE: This system requires the original starter motor and sprag clutch to be removed to allow fitment.


NOTE: In common with other suppliers we are unable to offer warranty for electrical components used for racing.


  • Four cylinder, 4 stroke system with 2x digital CDI units and 2x double output HTcoils.
  • Self generating CDI ignition eliminates requirement for a battery, alternator points or distributor.
  • Easy timing set-up, adjustment is via slotted holes with setting markings shown on the rotor and stator.
  • Direct fitting stator and rotor, no exchange or machining required.
  • Rotor Weight: 0.37kg Complete kit weight: 2.70kg.
  • Crank end diameter 19.4mm.
  • For endurance racing where lighting or other power supply is required we have a race alternator system for the above, please contact us for further information.
  • Manufactured in the UK.

Click the following link to download fitting instructions:
Download Instructions

Warranty

  • Road bike components - one year from the date of purchase
  • Off-road bike components - six months from the date of purchase
  • Race bike components - no warranty in line with industry practice
  • Any warranty does not cover defects due to abuse, misuse, improper installation or modification.

Transit

If any items were damaged in transit, we ask that you report it to us within 7 working days. On their return they can be replaced or a refund issued via your original payment method.

Faulty on arrival

If your items are faulty on arrival, you should inform us within 14 days of delivery. Items should be returned in their original packaging when possible with a copy of original documentation. Once we have verified the fault, we will issue a replacement or full refund to you via your original payment method.

Items faulty in warranty period

If any of your purchases develop a fault within its warranty period it will need to be returned. Once the fault has been verified, a repair or exchange of goods will be issued. If goods are found to be in good working order a testing/administration charge of 15 + VAT and return postage will be made to the customer.

Items ordered in error

If an item has been ordered in error, you should inform us within 14 days of delivery. We will not accept returned goods without prior consent except under guarantee. A minimum restocking/administration charge of 5 + VAT will be made on returned goods.

Returns We want you to be happy with your purchase from Electrex World Limited however there may be certain instances when products may need to be returned.

International Returns

International returns must be marked as 'Return - Failed Sale on any customs documentation. If there are any customs fees to pay, we will deduct these from your refund/credit.

Notes

  1. All returns must be accompanied by a copy of the original invoice and a completed returns form which can be downloaded using the following link:
    RETURNS FORM
  2. Returns take approximately five business days to process upon receipt of the item.
  3. We are not responsible for the loss or damage of items during their return. Please note that the customer has a duty of care whilst the goods are in their possession and that they should be thoughtfully packaged for the return shipment.
  4. Buyer is responsible for any shipping charges when returning the item.
  5. When fitting electrical parts these can be damaged by the same faulty electrical system that caused the initial failure and in such circumstances these parts cannot be returned for refund.
  6. No refund can be given If the item is out of warranty, if the item is within warranty but has been subjected to conditions beyond their specification or the item has been fitted/used.

Return Address

Electrex World Limited Units 43-46 Vanalloys Business Park Stoke Row Oxfordshire RG9 5QW

2006-2016 Electrex World Ltd. All rights reserved. Home | Terms & Conditions

Registered in England & Wales Company Registration number 04306310. VAT number 785 299 174.


Internal RotorIR4055.00Product link
StatorEWST-0045150.00Product link
CDICD068C04182.50Product link
HT CoilHT245.00Product link
SwitchSW1120.00Product link
HT plugcapPLUGCAP4.00Product link

Montesa 247 Cota Trials, 348L, 349L High Energy CDI Ignition System - STK-349

Montesa 247 Cota Trials, 348L, 349L High Energy CDI Ignition System - STK-349


Price (excl. vat): 215.00
(258.00 Including VAT at 20%)

Many of these items are made to order.
You will be advised on any delay.

Stator Kit Fits:

Montesa:247 Cota Trials348L
349L

* * NEW * * Twin coil ignition stator giving a stronger spark therefore making starting easier and better performance.


Optional nut available - M14 x 1.5 (lefthand) - see related products below.


High energy cdi ignition system with electronic advance for smooth tractable power delivery, specifically designed for trials.


  • One piece solid machined flywheel with weight of 3.25kg.
  • Engraved with degree markings to help with perfect timing set-up.
  • High quality electroplated for maximum protection.
  • Fitting instructions provided.
  • Manufactured in the UK.

Click the following link to download fitting instructions:
Download Instructions

Warranty

  • Road bike components - one year from the date of purchase
  • Off-road bike components - six months from the date of purchase
  • Race bike components - no warranty in line with industry practice
  • Any warranty does not cover defects due to abuse, misuse, improper installation or modification.

Transit

If any items were damaged in transit, we ask that you report it to us within 7 working days. On their return they can be replaced or a refund issued via your original payment method.

Faulty on arrival

If your items are faulty on arrival, you should inform us within 14 days of delivery. Items should be returned in their original packaging when possible with a copy of original documentation. Once we have verified the fault, we will issue a replacement or full refund to you via your original payment method.

Items faulty in warranty period

If any of your purchases develop a fault within its warranty period it will need to be returned. Once the fault has been verified, a repair or exchange of goods will be issued. If goods are found to be in good working order a testing/administration charge of 15 + VAT and return postage will be made to the customer.

Items ordered in error

If an item has been ordered in error, you should inform us within 14 days of delivery. We will not accept returned goods without prior consent except under guarantee. A minimum restocking/administration charge of 5 + VAT will be made on returned goods.

Returns We want you to be happy with your purchase from Electrex World Limited however there may be certain instances when products may need to be returned.

International Returns

International returns must be marked as 'Return - Failed Sale on any customs documentation. If there are any customs fees to pay, we will deduct these from your refund/credit.

Notes

  1. All returns must be accompanied by a copy of the original invoice and a completed returns form which can be downloaded using the following link:
    RETURNS FORM
  2. Returns take approximately five business days to process upon receipt of the item.
  3. We are not responsible for the loss or damage of items during their return. Please note that the customer has a duty of care whilst the goods are in their possession and that they should be thoughtfully packaged for the return shipment.
  4. Buyer is responsible for any shipping charges when returning the item.
  5. When fitting electrical parts these can be damaged by the same faulty electrical system that caused the initial failure and in such circumstances these parts cannot be returned for refund.
  6. No refund can be given If the item is out of warranty, if the item is within warranty but has been subjected to conditions beyond their specification or the item has been fitted/used.

Return Address

Electrex World Limited Units 43-46 Vanalloys Business Park Stoke Row Oxfordshire RG9 5QW

2006-2016 Electrex World Ltd. All rights reserved. Home | Terms & Conditions

Registered in England & Wales Company Registration number 04306310. VAT number 785 299 174.


External RotorRO247120.00Product link
StatorEWST-349T-0000-000075.00Product link
HT CoilHT-CDI55.00Product link
SwitchSW1120.00Product link
HT plugcapPLUGCAP4.00Product link

Yamaha TY250, Majesty DT400B Ignition Stator Kit - STK-402

Yamaha TY250, Majesty DT400B Ignition Stator Kit - STK-402


Price (excl. vat): 155.00
(186.00 Including VAT at 20%)

Many of these items are made to order.
You will be advised on any delay.

Stator Kit Fits:

Yamaha:TY250 (1974-1980)
TY250 Trials
TY250 Majesty (Twinshock)
DT400B

NOTE: High energy cdi ignition system with electronic advance for smooth tractable power delivery, specifically designed for trials.


NOTE: DT400B - this kit will fit but needs original TY flywheel minus weight, to make it the same as original DT flywheel.


  • This system utilises the original flywheel for simplicity and low cost.
  • Very easy to fit and set-up without the need for specialist engineering facilities. Fitting instructions provided.
  • Combined Lighting/Ignition version also available, see related products below.
  • Manufactured in the UK.

Click the following link to download fitting instructions:
Download Instructions

Warranty

  • Road bike components - one year from the date of purchase
  • Off-road bike components - six months from the date of purchase
  • Race bike components - no warranty in line with industry practice
  • Any warranty does not cover defects due to abuse, misuse, improper installation or modification.

Transit

If any items were damaged in transit, we ask that you report it to us within 7 working days. On their return they can be replaced or a refund issued via your original payment method.

Faulty on arrival

If your items are faulty on arrival, you should inform us within 14 days of delivery. Items should be returned in their original packaging when possible with a copy of original documentation. Once we have verified the fault, we will issue a replacement or full refund to you via your original payment method.

Items faulty in warranty period

If any of your purchases develop a fault within its warranty period it will need to be returned. Once the fault has been verified, a repair or exchange of goods will be issued. If goods are found to be in good working order a testing/administration charge of 15 + VAT and return postage will be made to the customer.

Items ordered in error

If an item has been ordered in error, you should inform us within 14 days of delivery. We will not accept returned goods without prior consent except under guarantee. A minimum restocking/administration charge of 5 + VAT will be made on returned goods.

Returns We want you to be happy with your purchase from Electrex World Limited however there may be certain instances when products may need to be returned.

International Returns

International returns must be marked as 'Return - Failed Sale on any customs documentation. If there are any customs fees to pay, we will deduct these from your refund/credit.

Notes

  1. All returns must be accompanied by a copy of the original invoice and a completed returns form which can be downloaded using the following link:
    RETURNS FORM
  2. Returns take approximately five business days to process upon receipt of the item.
  3. We are not responsible for the loss or damage of items during their return. Please note that the customer has a duty of care whilst the goods are in their possession and that they should be thoughtfully packaged for the return shipment.
  4. Buyer is responsible for any shipping charges when returning the item.
  5. When fitting electrical parts these can be damaged by the same faulty electrical system that caused the initial failure and in such circumstances these parts cannot be returned for refund.
  6. No refund can be given If the item is out of warranty, if the item is within warranty but has been subjected to conditions beyond their specification or the item has been fitted/used.

Return Address

Electrex World Limited Units 43-46 Vanalloys Business Park Stoke Row Oxfordshire RG9 5QW

2006-2016 Electrex World Ltd. All rights reserved. Home | Terms & Conditions

Registered in England & Wales Company Registration number 04306310. VAT number 785 299 174.


StatorEWST-040275.00Product link
HT CoilHT-CDI55.00Product link
SwitchSW1120.00Product link
HT plugcapPLUGCAP4.00Product link

Yamaha TY250 Trials Lighting/Ignition Stator Kit - AC lighting verison- STK-402L-AC

Yamaha TY250 Trials Lighting/Ignition Stator Kit - AC lighting verison- STK-402L-AC


Price (excl. vat): 195.00
(234.00 Including VAT at 20%)

Many of these items are made to order.
You will be advised on any delay.

Stator Kit Fits:

Yamaha:TY250 (1974-1980)
TY250 Trials

NOTE: High energy cdi ignition system with electronic advance for smooth tractable power delivery, specifically designed for trials.


  • NOTE: This kit is for AC lighting only, for DC lighting see STK-402L-DC in related products below.
  • Compatible with twinshock version only.
  • Uses original flywheel.
  • This system utilises the original flywheel for simplicity and low cost.
  • Very easy to fit and set-up without the need for specialist engineering facilities. Fitting instructions provided.
  • Ignition version also available.
  • Manufactured in the UK.

Click the following link to download fitting instructions:
Download Instructions

Warranty

  • Road bike components - one year from the date of purchase
  • Off-road bike components - six months from the date of purchase
  • Race bike components - no warranty in line with industry practice
  • Any warranty does not cover defects due to abuse, misuse, improper installation or modification.

Transit

If any items were damaged in transit, we ask that you report it to us within 7 working days. On their return they can be replaced or a refund issued via your original payment method.

Faulty on arrival

If your items are faulty on arrival, you should inform us within 14 days of delivery. Items should be returned in their original packaging when possible with a copy of original documentation. Once we have verified the fault, we will issue a replacement or full refund to you via your original payment method.

Items faulty in warranty period

If any of your purchases develop a fault within its warranty period it will need to be returned. Once the fault has been verified, a repair or exchange of goods will be issued. If goods are found to be in good working order a testing/administration charge of 15 + VAT and return postage will be made to the customer.

Items ordered in error

If an item has been ordered in error, you should inform us within 14 days of delivery. We will not accept returned goods without prior consent except under guarantee. A minimum restocking/administration charge of 5 + VAT will be made on returned goods.

Returns We want you to be happy with your purchase from Electrex World Limited however there may be certain instances when products may need to be returned.

International Returns

International returns must be marked as 'Return - Failed Sale on any customs documentation. If there are any customs fees to pay, we will deduct these from your refund/credit.

Notes

  1. All returns must be accompanied by a copy of the original invoice and a completed returns form which can be downloaded using the following link:
    RETURNS FORM
  2. Returns take approximately five business days to process upon receipt of the item.
  3. We are not responsible for the loss or damage of items during their return. Please note that the customer has a duty of care whilst the goods are in their possession and that they should be thoughtfully packaged for the return shipment.
  4. Buyer is responsible for any shipping charges when returning the item.
  5. When fitting electrical parts these can be damaged by the same faulty electrical system that caused the initial failure and in such circumstances these parts cannot be returned for refund.
  6. No refund can be given If the item is out of warranty, if the item is within warranty but has been subjected to conditions beyond their specification or the item has been fitted/used.

Return Address

Electrex World Limited Units 43-46 Vanalloys Business Park Stoke Row Oxfordshire RG9 5QW

2006-2016 Electrex World Ltd. All rights reserved. Home | Terms & Conditions

Registered in England & Wales Company Registration number 04306310. VAT number 785 299 174.


StatorEWST-402L105.00Product link
RegulatorRG6/1230.00Product link
HT CoilHT-CDI55.00Product link
SwitchSW1120.00Product link
HT plugcapPLUGCAP4.00Product link

Yamaha TY250 Trials Lighting/Ignition Stator Kit - DC lighting version - we recommend the use of LED lighting - STK-402L-DC
Yamaha TY250 Trials Lighting/Ignition Stator Kit - DC lighting verison- (STK-402L-DC)Yamaha TY250 Trials Lighting/Ignition Stator Kit - DC lighting version - we recommend the use of LED lighting - STK-402L-DC - view 2

Yamaha TY250 Trials Lighting/Ignition Stator Kit - DC lighting version - we recommend the use of LED lighting - STK-402L-DC


Price (excl. vat): 223.00
(267.60 Including VAT at 20%)

Many of these items are made to order.
You will be advised on any delay.

Stator Kit Fits:

Yamaha:TY250 (1974-1980)
TY250 Trials

NOTE: High energy cdi ignition system with electronic advance for smooth tractable power delivery, specifically designed for trials.


  • NOTE: This kit is for DC lighting only, for AC lighting see STK-402L-AC in related products below.
  • Compatible with twinshock version only.
  • Uses original flywheel.
  • This system utilises the original flywheel for simplicity and low cost.
  • Very easy to fit and set-up without the need for specialist engineering facilities. Fitting instructions provided.
  • For use with LED lighting
  • Ignition version also available.
  • Manufactured in the UK.

Click the following link to download fitting instructions:
Download Instructions

Warranty

  • Road bike components - one year from the date of purchase
  • Off-road bike components - six months from the date of purchase
  • Race bike components - no warranty in line with industry practice
  • Any warranty does not cover defects due to abuse, misuse, improper installation or modification.

Transit

If any items were damaged in transit, we ask that you report it to us within 7 working days. On their return they can be replaced or a refund issued via your original payment method.

Faulty on arrival

If your items are faulty on arrival, you should inform us within 14 days of delivery. Items should be returned in their original packaging when possible with a copy of original documentation. Once we have verified the fault, we will issue a replacement or full refund to you via your original payment method.

Items faulty in warranty period

If any of your purchases develop a fault within its warranty period it will need to be returned. Once the fault has been verified, a repair or exchange of goods will be issued. If goods are found to be in good working order a testing/administration charge of 15 + VAT and return postage will be made to the customer.

Items ordered in error

If an item has been ordered in error, you should inform us within 14 days of delivery. We will not accept returned goods without prior consent except under guarantee. A minimum restocking/administration charge of 5 + VAT will be made on returned goods.

Returns We want you to be happy with your purchase from Electrex World Limited however there may be certain instances when products may need to be returned.

International Returns

International returns must be marked as 'Return - Failed Sale on any customs documentation. If there are any customs fees to pay, we will deduct these from your refund/credit.

Notes

  1. All returns must be accompanied by a copy of the original invoice and a completed returns form which can be downloaded using the following link:
    RETURNS FORM
  2. Returns take approximately five business days to process upon receipt of the item.
  3. We are not responsible for the loss or damage of items during their return. Please note that the customer has a duty of care whilst the goods are in their possession and that they should be thoughtfully packaged for the return shipment.
  4. Buyer is responsible for any shipping charges when returning the item.
  5. When fitting electrical parts these can be damaged by the same faulty electrical system that caused the initial failure and in such circumstances these parts cannot be returned for refund.
  6. No refund can be given If the item is out of warranty, if the item is within warranty but has been subjected to conditions beyond their specification or the item has been fitted/used.

Return Address

Electrex World Limited Units 43-46 Vanalloys Business Park Stoke Row Oxfordshire RG9 5QW

2006-2016 Electrex World Ltd. All rights reserved. Home | Terms & Conditions

Registered in England & Wales Company Registration number 04306310. VAT number 785 299 174.


StatorEWST-402L105.00Product link
Regulator RecitifierRR121C60.50Product link
HT CoilHT-CDI55.00Product link
SwitchSW1120.00Product link
HT plugcapPLUGCAP4.00Product link

Yamaha TT500, XT5500  Ignition Stator Kit - STK-405
Yamaha TT500, XT500 Ignition Stator Kit - (STK-405)Yamaha TT500, XT5500  Ignition Stator Kit - STK-405 - view 2

Yamaha TT500, XT5500 Ignition Stator Kit - STK-405


Price (excl. vat): 175.00
(210.00 Including VAT at 20%)

Many of these items are made to order.
You will be advised on any delay.

Stator Kit Fits:

Yamaha:TT500
XT500
Race/MX

NOTE: Your original rotor should have the number 038000 etched on the front face.


  • High energy cdi ignition system with electronic advance for easy starting even when the engine is hot.
  • Manufactured in the UK.

Click the following link to download fitting instructions:
Download Instructions

Warranty

  • Road bike components - one year from the date of purchase
  • Off-road bike components - six months from the date of purchase
  • Race bike components - no warranty in line with industry practice
  • Any warranty does not cover defects due to abuse, misuse, improper installation or modification.

Transit

If any items were damaged in transit, we ask that you report it to us within 7 working days. On their return they can be replaced or a refund issued via your original payment method.

Faulty on arrival

If your items are faulty on arrival, you should inform us within 14 days of delivery. Items should be returned in their original packaging when possible with a copy of original documentation. Once we have verified the fault, we will issue a replacement or full refund to you via your original payment method.

Items faulty in warranty period

If any of your purchases develop a fault within its warranty period it will need to be returned. Once the fault has been verified, a repair or exchange of goods will be issued. If goods are found to be in good working order a testing/administration charge of 15 + VAT and return postage will be made to the customer.

Items ordered in error

If an item has been ordered in error, you should inform us within 14 days of delivery. We will not accept returned goods without prior consent except under guarantee. A minimum restocking/administration charge of 5 + VAT will be made on returned goods.

Returns We want you to be happy with your purchase from Electrex World Limited however there may be certain instances when products may need to be returned.

International Returns

International returns must be marked as 'Return - Failed Sale on any customs documentation. If there are any customs fees to pay, we will deduct these from your refund/credit.

Notes

  1. All returns must be accompanied by a copy of the original invoice and a completed returns form which can be downloaded using the following link:
    RETURNS FORM
  2. Returns take approximately five business days to process upon receipt of the item.
  3. We are not responsible for the loss or damage of items during their return. Please note that the customer has a duty of care whilst the goods are in their possession and that they should be thoughtfully packaged for the return shipment.
  4. Buyer is responsible for any shipping charges when returning the item.
  5. When fitting electrical parts these can be damaged by the same faulty electrical system that caused the initial failure and in such circumstances these parts cannot be returned for refund.
  6. No refund can be given If the item is out of warranty, if the item is within warranty but has been subjected to conditions beyond their specification or the item has been fitted/used.

Return Address

Electrex World Limited Units 43-46 Vanalloys Business Park Stoke Row Oxfordshire RG9 5QW

2006-2016 Electrex World Ltd. All rights reserved. Home | Terms & Conditions

Registered in England & Wales Company Registration number 04306310. VAT number 785 299 174.


StatorEWST-040575.00Product link
HT CoilHT-CDI55.00Product link
SwitchSW1120.00Product link
HT plugcapPLUGCAP4.00Product link

Yamaha TT500 XT500 Lighting/Ignition Stator Kit - STK-405L
Yamaha TT500 XT500 Lighting/Ignition Stator Kit - (STK-405L)Yamaha TT500 XT500 Lighting/Ignition Stator Kit - STK-405L - view 2

Yamaha TT500 XT500 Lighting/Ignition Stator Kit - STK-405L


Price (excl. vat): 195.00
(234.00 Including VAT at 20%)

Many of these items are made to order.
You will be advised on any delay.

Stator Kit Fits:

Yamaha:TT500
XT500
Race/MX

NOTE: Your original rotor should have the number 038000 etched on the front face.


  • High energy cdi ignition system with electronic advance for easy starting even when the engine is hot.
  • Simple lighting coil approx 75watt DC output.
  • Uses original flywheel.
  • We also manufacture a digital race ignition system ref: STK-407D.
  • Manufactured in the UK.

Click the following link to download fitting instructions:
Download Instructions

Warranty

  • Road bike components - one year from the date of purchase
  • Off-road bike components - six months from the date of purchase
  • Race bike components - no warranty in line with industry practice
  • Any warranty does not cover defects due to abuse, misuse, improper installation or modification.

Transit

If any items were damaged in transit, we ask that you report it to us within 7 working days. On their return they can be replaced or a refund issued via your original payment method.

Faulty on arrival

If your items are faulty on arrival, you should inform us within 14 days of delivery. Items should be returned in their original packaging when possible with a copy of original documentation. Once we have verified the fault, we will issue a replacement or full refund to you via your original payment method.

Items faulty in warranty period

If any of your purchases develop a fault within its warranty period it will need to be returned. Once the fault has been verified, a repair or exchange of goods will be issued. If goods are found to be in good working order a testing/administration charge of 15 + VAT and return postage will be made to the customer.

Items ordered in error

If an item has been ordered in error, you should inform us within 14 days of delivery. We will not accept returned goods without prior consent except under guarantee. A minimum restocking/administration charge of 5 + VAT will be made on returned goods.

Returns We want you to be happy with your purchase from Electrex World Limited however there may be certain instances when products may need to be returned.

International Returns

International returns must be marked as 'Return - Failed Sale on any customs documentation. If there are any customs fees to pay, we will deduct these from your refund/credit.

Notes

  1. All returns must be accompanied by a copy of the original invoice and a completed returns form which can be downloaded using the following link:
    RETURNS FORM
  2. Returns take approximately five business days to process upon receipt of the item.
  3. We are not responsible for the loss or damage of items during their return. Please note that the customer has a duty of care whilst the goods are in their possession and that they should be thoughtfully packaged for the return shipment.
  4. Buyer is responsible for any shipping charges when returning the item.
  5. When fitting electrical parts these can be damaged by the same faulty electrical system that caused the initial failure and in such circumstances these parts cannot be returned for refund.
  6. No refund can be given If the item is out of warranty, if the item is within warranty but has been subjected to conditions beyond their specification or the item has been fitted/used.

Return Address

Electrex World Limited Units 43-46 Vanalloys Business Park Stoke Row Oxfordshire RG9 5QW

2006-2016 Electrex World Ltd. All rights reserved. Home | Terms & Conditions

Registered in England & Wales Company Registration number 04306310. VAT number 785 299 174.


StatorEWST-405L105.00Product link
RegulatorRR12049.50Product link
HT CoilHT-CDI55.00Product link
SwitchSW1120.00Product link
HT plugcapPLUGCAP4.00Product link

Yamaha TT500, XT500 Internal Rotor Stator Kit - STK-407
Yamaha TT500, XT500 Internal Rotor Stator Kit - (STK-407)Yamaha TT500, XT500 Internal Rotor Stator Kit - STK-407 - view 2

Yamaha TT500, XT500 Internal Rotor Stator Kit - STK-407


Price (excl. vat): 170.00
(204.00 Including VAT at 20%)

Many of these items are made to order.
You will be advised on any delay.

Stator Kit Fits:

Yamaha:TT500
XT500
Race/MX
  • Simple to fit, no machining required.
  • High energy self generating cdi ignition system.
  • The stator is designed for operation within the engine environment.
  • The stator produces the energy and timing signal which feed the combined cdi, producing a high voltage spark, very easy to start when cold or hot.
  • Low flywheel mass allows for rapid acceleration.
  • Manufactured in the UK.

Click the following link to download fitting instructions:
Download Instructions

Warranty

  • Road bike components - one year from the date of purchase
  • Off-road bike components - six months from the date of purchase
  • Race bike components - no warranty in line with industry practice
  • Any warranty does not cover defects due to abuse, misuse, improper installation or modification.

Transit

If any items were damaged in transit, we ask that you report it to us within 7 working days. On their return they can be replaced or a refund issued via your original payment method.

Faulty on arrival

If your items are faulty on arrival, you should inform us within 14 days of delivery. Items should be returned in their original packaging when possible with a copy of original documentation. Once we have verified the fault, we will issue a replacement or full refund to you via your original payment method.

Items faulty in warranty period

If any of your purchases develop a fault within its warranty period it will need to be returned. Once the fault has been verified, a repair or exchange of goods will be issued. If goods are found to be in good working order a testing/administration charge of 15 + VAT and return postage will be made to the customer.

Items ordered in error

If an item has been ordered in error, you should inform us within 14 days of delivery. We will not accept returned goods without prior consent except under guarantee. A minimum restocking/administration charge of 5 + VAT will be made on returned goods.

Returns We want you to be happy with your purchase from Electrex World Limited however there may be certain instances when products may need to be returned.

International Returns

International returns must be marked as 'Return - Failed Sale on any customs documentation. If there are any customs fees to pay, we will deduct these from your refund/credit.

Notes

  1. All returns must be accompanied by a copy of the original invoice and a completed returns form which can be downloaded using the following link:
    RETURNS FORM
  2. Returns take approximately five business days to process upon receipt of the item.
  3. We are not responsible for the loss or damage of items during their return. Please note that the customer has a duty of care whilst the goods are in their possession and that they should be thoughtfully packaged for the return shipment.
  4. Buyer is responsible for any shipping charges when returning the item.
  5. When fitting electrical parts these can be damaged by the same faulty electrical system that caused the initial failure and in such circumstances these parts cannot be returned for refund.
  6. No refund can be given If the item is out of warranty, if the item is within warranty but has been subjected to conditions beyond their specification or the item has been fitted/used.

Return Address

Electrex World Limited Units 43-46 Vanalloys Business Park Stoke Row Oxfordshire RG9 5QW

2006-2016 Electrex World Ltd. All rights reserved. Home | Terms & Conditions

Registered in England & Wales Company Registration number 04306310. VAT number 785 299 174.


Internal RotorIR4055.00Product link
StatorEWST-0407-HTCD75.00Product link
HT CoilHT-CDI55.00Product link
SwitchSW1120.00Product link
HT plugcapPLUGCAP4.00Product link

"We have been using Electrex's racing ignition for the past several years with great dependability and success in AHRMA's Vintage Flat Track Racing on our Knight Frame TT500 ridden by Charlie Williams # 2s and have won National Class Championships in 2018 and 2020."



February 2022


Yamaha XS650 Ignition only Stator Kit - STK-465
Yamaha XS650 Stator Kit - (STK-465)Yamaha XS650 Ignition only Stator Kit - STK-465 - view 2

Yamaha XS650 Ignition only Stator Kit - STK-465


Price (excl. vat): 185.00
(222.00 Including VAT at 20%)

Many of these items are made to order.
You will be advised on any delay.

Stator Kit Fits:

Yamaha:XS650

High energy digital self generating cdi ignition system.

NOTE: This is ignition only for lighting system please see STK-467D in related products below.


  • Simple to fit, no machining required.
  • The stator is designed for operation within the engine environment.
  • The stator produces the energy and timing signal which feed the combined cdi, producing a high voltage spark, very easy to start when cold or hot.
  • Low flywheel mass allows for rapid acceleration.
  • Optimum advance curve for high RPM.
  • Manufactured in the UK.

Click the following link to download fitting instructions:
Download Instructions

Warranty

  • Road bike components - one year from the date of purchase
  • Off-road bike components - six months from the date of purchase
  • Race bike components - no warranty in line with industry practice
  • Any warranty does not cover defects due to abuse, misuse, improper installation or modification.

Transit

If any items were damaged in transit, we ask that you report it to us within 7 working days. On their return they can be replaced or a refund issued via your original payment method.

Faulty on arrival

If your items are faulty on arrival, you should inform us within 14 days of delivery. Items should be returned in their original packaging when possible with a copy of original documentation. Once we have verified the fault, we will issue a replacement or full refund to you via your original payment method.

Items faulty in warranty period

If any of your purchases develop a fault within its warranty period it will need to be returned. Once the fault has been verified, a repair or exchange of goods will be issued. If goods are found to be in good working order a testing/administration charge of 15 + VAT and return postage will be made to the customer.

Items ordered in error

If an item has been ordered in error, you should inform us within 14 days of delivery. We will not accept returned goods without prior consent except under guarantee. A minimum restocking/administration charge of 5 + VAT will be made on returned goods.

Returns We want you to be happy with your purchase from Electrex World Limited however there may be certain instances when products may need to be returned.

International Returns

International returns must be marked as 'Return - Failed Sale on any customs documentation. If there are any customs fees to pay, we will deduct these from your refund/credit.

Notes

  1. All returns must be accompanied by a copy of the original invoice and a completed returns form which can be downloaded using the following link:
    RETURNS FORM
  2. Returns take approximately five business days to process upon receipt of the item.
  3. We are not responsible for the loss or damage of items during their return. Please note that the customer has a duty of care whilst the goods are in their possession and that they should be thoughtfully packaged for the return shipment.
  4. Buyer is responsible for any shipping charges when returning the item.
  5. When fitting electrical parts these can be damaged by the same faulty electrical system that caused the initial failure and in such circumstances these parts cannot be returned for refund.
  6. No refund can be given If the item is out of warranty, if the item is within warranty but has been subjected to conditions beyond their specification or the item has been fitted/used.

Return Address

Electrex World Limited Units 43-46 Vanalloys Business Park Stoke Row Oxfordshire RG9 5QW

2006-2016 Electrex World Ltd. All rights reserved. Home | Terms & Conditions

Registered in England & Wales Company Registration number 04306310. VAT number 785 299 174.


Internal RotorIR6555.00Product link
StatorEWST-0094-001075.00Product link
CDI UnitCD001071.50Product link
HT CoilHT245.00Product link
SwitchSW1120.00Product link
HT plugcapPLUGCAP4.00Product link

Yamaha XS650 Digital Stator Kit - STK-465D
Yamaha XS650 Digital Stator Kit - (STK-465D)Yamaha XS650 Digital Stator Kit - STK-465D - view 2

Yamaha XS650 Digital Stator Kit - STK-465D


Price (excl. vat): 225.00
(270.00 Including VAT at 20%)

Stator Kit Fits:

Yamaha:XS650

High energy digital self generating cdi ignition system.


  • Simple to fit, no machining required.
  • The stator is designed for operation within the engine environment.
  • The stator produces the energy and timing signal which feed the combined cdi, producing a high voltage spark, very easy to start when cold or hot.
  • Low flywheel mass allows for rapid acceleration.
  • Optimum advance curve for high RPM.
  • Manufactured in the UK.

Click the following link to download fitting instructions:
Download Instructions

Warranty

  • Road bike components - one year from the date of purchase
  • Off-road bike components - six months from the date of purchase
  • Race bike components - no warranty in line with industry practice
  • Any warranty does not cover defects due to abuse, misuse, improper installation or modification.

Transit

If any items were damaged in transit, we ask that you report it to us within 7 working days. On their return they can be replaced or a refund issued via your original payment method.

Faulty on arrival

If your items are faulty on arrival, you should inform us within 14 days of delivery. Items should be returned in their original packaging when possible with a copy of original documentation. Once we have verified the fault, we will issue a replacement or full refund to you via your original payment method.

Items faulty in warranty period

If any of your purchases develop a fault within its warranty period it will need to be returned. Once the fault has been verified, a repair or exchange of goods will be issued. If goods are found to be in good working order a testing/administration charge of 15 + VAT and return postage will be made to the customer.

Items ordered in error

If an item has been ordered in error, you should inform us within 14 days of delivery. We will not accept returned goods without prior consent except under guarantee. A minimum restocking/administration charge of 5 + VAT will be made on returned goods.

Returns We want you to be happy with your purchase from Electrex World Limited however there may be certain instances when products may need to be returned.

International Returns

International returns must be marked as 'Return - Failed Sale on any customs documentation. If there are any customs fees to pay, we will deduct these from your refund/credit.

Notes

  1. All returns must be accompanied by a copy of the original invoice and a completed returns form which can be downloaded using the following link:
    RETURNS FORM
  2. Returns take approximately five business days to process upon receipt of the item.
  3. We are not responsible for the loss or damage of items during their return. Please note that the customer has a duty of care whilst the goods are in their possession and that they should be thoughtfully packaged for the return shipment.
  4. Buyer is responsible for any shipping charges when returning the item.
  5. When fitting electrical parts these can be damaged by the same faulty electrical system that caused the initial failure and in such circumstances these parts cannot be returned for refund.
  6. No refund can be given If the item is out of warranty, if the item is within warranty but has been subjected to conditions beyond their specification or the item has been fitted/used.

Return Address

Electrex World Limited Units 43-46 Vanalloys Business Park Stoke Row Oxfordshire RG9 5QW

2006-2016 Electrex World Ltd. All rights reserved. Home | Terms & Conditions

Registered in England & Wales Company Registration number 04306310. VAT number 785 299 174.


Internal RotorIR6555.00Product link
StatorEWST-0094-HPI075.00Product link
CDICD068C04182.50Product link
HT CoilHT245.00Product link
SwitchSW1120.00Product link
HT plugcapPLUGCAP4.00Product link

Yamaha TY175 Trials Ignition Stator Kit - STK-475
Yamaha TY175 Trials Ignition Stator Kit - (STK-475)STK-475 Wiring Diagram

Yamaha TY175 Trials Ignition Stator Kit - STK-475


Price (excl. vat): 175.00
(210.00 Including VAT at 20%)

Many of these items are made to order.
You will be advised on any delay.

Stator Kit Fits:

Yamaha:TY175 (1975-1980)
TY175 Trials

NOTE: Uses original flywheel.


  • Replaces original fixed timing points system with CDI electronic ignition.
  • Utilises the original flywheel for simplicity and low cost.
  • Electronic advance of 16 degrees is specifically developed to give the TY smooth tractable power, ideal for trials.
  • Starting is very easy with ignition at only 150rpm.
  • Optional STK-475L version has a 75watt AC output for lighting, controlled by a regulator (supplied) to prevent bulb failure.
  • Manufactured in the UK.

Click the following link to download fitting instructions:
Download Instructions

Warranty

  • Road bike components - one year from the date of purchase
  • Off-road bike components - six months from the date of purchase
  • Race bike components - no warranty in line with industry practice
  • Any warranty does not cover defects due to abuse, misuse, improper installation or modification.

Transit

If any items were damaged in transit, we ask that you report it to us within 7 working days. On their return they can be replaced or a refund issued via your original payment method.

Faulty on arrival

If your items are faulty on arrival, you should inform us within 14 days of delivery. Items should be returned in their original packaging when possible with a copy of original documentation. Once we have verified the fault, we will issue a replacement or full refund to you via your original payment method.

Items faulty in warranty period

If any of your purchases develop a fault within its warranty period it will need to be returned. Once the fault has been verified, a repair or exchange of goods will be issued. If goods are found to be in good working order a testing/administration charge of 15 + VAT and return postage will be made to the customer.

Items ordered in error

If an item has been ordered in error, you should inform us within 14 days of delivery. We will not accept returned goods without prior consent except under guarantee. A minimum restocking/administration charge of 5 + VAT will be made on returned goods.

Returns We want you to be happy with your purchase from Electrex World Limited however there may be certain instances when products may need to be returned.

International Returns

International returns must be marked as 'Return - Failed Sale on any customs documentation. If there are any customs fees to pay, we will deduct these from your refund/credit.

Notes

  1. All returns must be accompanied by a copy of the original invoice and a completed returns form which can be downloaded using the following link:
    RETURNS FORM
  2. Returns take approximately five business days to process upon receipt of the item.
  3. We are not responsible for the loss or damage of items during their return. Please note that the customer has a duty of care whilst the goods are in their possession and that they should be thoughtfully packaged for the return shipment.
  4. Buyer is responsible for any shipping charges when returning the item.
  5. When fitting electrical parts these can be damaged by the same faulty electrical system that caused the initial failure and in such circumstances these parts cannot be returned for refund.
  6. No refund can be given If the item is out of warranty, if the item is within warranty but has been subjected to conditions beyond their specification or the item has been fitted/used.

Return Address

Electrex World Limited Units 43-46 Vanalloys Business Park Stoke Row Oxfordshire RG9 5QW

2006-2016 Electrex World Ltd. All rights reserved. Home | Terms & Conditions

Registered in England & Wales Company Registration number 04306310. VAT number 785 299 174.


StatorEWST-0475125.00Product link
HT CoilHT CDI55.00Product link
SwitchSW1120.00Product link
HT plugcapPLUGCAP4.00Product link

Yamaha TY175 Trials Ignition/Lighting Stator Kit - STK-475L
Yamaha TY175 Trials Ignition/Lighting Stator Kit - (STK-475L)STK-475L wiring diagram

Yamaha TY175 Trials Ignition/Lighting Stator Kit - STK-475L


Price (excl. vat): 220.00
(264.00 Including VAT at 20%)

Many of these items are made to order.
You will be advised on any delay.

Stator Kit Fits:

Yamaha:TY175 (1975-1980)
TY175 Trials

NOTE: Uses original flywheel.


  • Replaces original fixed timing points system with CDI electronic ignition.
  • Utilises the original flywheel for simplicity and low cost.
  • Electronic advance of 16 degrees is specifically developed to give the TY smooth tractable power, ideal for trials.
  • Starting is very easy with ignition at only 150rpm.
  • Has a 75watt AC output for lighting, controlled by a regulator (supplied) to prevent bulb failure.
  • Manufactured in the UK.

Click the following link to download fitting instructions:
Download Instructions

Warranty

  • Road bike components - one year from the date of purchase
  • Off-road bike components - six months from the date of purchase
  • Race bike components - no warranty in line with industry practice
  • Any warranty does not cover defects due to abuse, misuse, improper installation or modification.

Transit

If any items were damaged in transit, we ask that you report it to us within 7 working days. On their return they can be replaced or a refund issued via your original payment method.

Faulty on arrival

If your items are faulty on arrival, you should inform us within 14 days of delivery. Items should be returned in their original packaging when possible with a copy of original documentation. Once we have verified the fault, we will issue a replacement or full refund to you via your original payment method.

Items faulty in warranty period

If any of your purchases develop a fault within its warranty period it will need to be returned. Once the fault has been verified, a repair or exchange of goods will be issued. If goods are found to be in good working order a testing/administration charge of 15 + VAT and return postage will be made to the customer.

Items ordered in error

If an item has been ordered in error, you should inform us within 14 days of delivery. We will not accept returned goods without prior consent except under guarantee. A minimum restocking/administration charge of 5 + VAT will be made on returned goods.

Returns We want you to be happy with your purchase from Electrex World Limited however there may be certain instances when products may need to be returned.

International Returns

International returns must be marked as 'Return - Failed Sale on any customs documentation. If there are any customs fees to pay, we will deduct these from your refund/credit.

Notes

  1. All returns must be accompanied by a copy of the original invoice and a completed returns form which can be downloaded using the following link:
    RETURNS FORM
  2. Returns take approximately five business days to process upon receipt of the item.
  3. We are not responsible for the loss or damage of items during their return. Please note that the customer has a duty of care whilst the goods are in their possession and that they should be thoughtfully packaged for the return shipment.
  4. Buyer is responsible for any shipping charges when returning the item.
  5. When fitting electrical parts these can be damaged by the same faulty electrical system that caused the initial failure and in such circumstances these parts cannot be returned for refund.
  6. No refund can be given If the item is out of warranty, if the item is within warranty but has been subjected to conditions beyond their specification or the item has been fitted/used.

Return Address

Electrex World Limited Units 43-46 Vanalloys Business Park Stoke Row Oxfordshire RG9 5QW

2006-2016 Electrex World Ltd. All rights reserved. Home | Terms & Conditions

Registered in England & Wales Company Registration number 04306310. VAT number 785 299 174.


StatorEWST-475L155.00Product link
RegulatorRG6/1230.00Product link
HT CoilHT-CDI55.00Product link
SwitchSW1120.00Product link
HT plugcapPLUGCAP4.00Product link

BMW (Boxer) Bosch Alternator Replacement Kit - 107mm Adaptor Plate  - STK-500
Moto Guzzi Bosch Alternator Replacement Kit - (STK-500)Stator assembly mounted on to the engine - (STK-500)Measuring the diameter - (STK-500)Wiring Diagram - (STK-500)
BMW (Boxer) Bosch Alternator Replacement Kit - 107mm Adaptor Plate  - STK-500 - view 5

BMW (Boxer) Bosch Alternator Replacement Kit - 107mm Adaptor Plate - STK-500


Price (excl. vat): 325.00
(390.00 Including VAT at 20%)

Many of these items are made to order.
You will be advised on any delay.



Stator Kit Fits:

BMW:Boxer Twins (1970-1995)
Bosch alternator replacement kit.

NOTE: Some BMW models also have location diameters of 105mm, this is very rare but in this case please refer to STK-502 in the related products below. NOTE: For years 1974-75 there may be a cross over, so please be careful and measure as accurately possible.


See below for Bosch alternator dimensions:

Bosch Alternator NumberStator adaptor ring mm's
0 120 340 001105mm
0 120 340 002105mm
0 120 340 003105mm
0 120 340 004107mm
0 120 340 005107mm
0 120 340 006105mm
0 120 340 008107mm

  • New permanent brushless alternator - up to 400w output.
  • Excellent output at low speed - 20amp at only 2000rpm, therefore ideal for Moto Guzzi.
  • Very heavy duty series regulator/rectifier with output cable for 'charge warning' indicator.
  • Fitting kit precision CNC machined from single billet with either stainless steel or anodised aluminium used.
  • Direct fitting no mechanical modifications required, minimal wiring for reliability.
  • Designed and manufactured to modern OEM specifications.
  • Manufactured in the UK.

Click the following link to download fitting instructions:
Download Instructions

Warranty

  • Road bike components - one year from the date of purchase
  • Off-road bike components - six months from the date of purchase
  • Race bike components - no warranty in line with industry practice
  • Any warranty does not cover defects due to abuse, misuse, improper installation or modification.

Transit

If any items were damaged in transit, we ask that you report it to us within 7 working days. On their return they can be replaced or a refund issued via your original payment method.

Faulty on arrival

If your items are faulty on arrival, you should inform us within 14 days of delivery. Items should be returned in their original packaging when possible with a copy of original documentation. Once we have verified the fault, we will issue a replacement or full refund to you via your original payment method.

Items faulty in warranty period

If any of your purchases develop a fault within its warranty period it will need to be returned. Once the fault has been verified, a repair or exchange of goods will be issued. If goods are found to be in good working order a testing/administration charge of 15 + VAT and return postage will be made to the customer.

Items ordered in error

If an item has been ordered in error, you should inform us within 14 days of delivery. We will not accept returned goods without prior consent except under guarantee. A minimum restocking/administration charge of 5 + VAT will be made on returned goods.

Returns We want you to be happy with your purchase from Electrex World Limited however there may be certain instances when products may need to be returned.

International Returns

International returns must be marked as 'Return - Failed Sale on any customs documentation. If there are any customs fees to pay, we will deduct these from your refund/credit.

Notes

  1. All returns must be accompanied by a copy of the original invoice and a completed returns form which can be downloaded using the following link:
    RETURNS FORM
  2. Returns take approximately five business days to process upon receipt of the item.
  3. We are not responsible for the loss or damage of items during their return. Please note that the customer has a duty of care whilst the goods are in their possession and that they should be thoughtfully packaged for the return shipment.
  4. Buyer is responsible for any shipping charges when returning the item.
  5. When fitting electrical parts these can be damaged by the same faulty electrical system that caused the initial failure and in such circumstances these parts cannot be returned for refund.
  6. No refund can be given If the item is out of warranty, if the item is within warranty but has been subjected to conditions beyond their specification or the item has been fitted/used.

Return Address

Electrex World Limited Units 43-46 Vanalloys Business Park Stoke Row Oxfordshire RG9 5QW

2006-2016 Electrex World Ltd. All rights reserved. Home | Terms & Conditions

Registered in England & Wales Company Registration number 04306310. VAT number 785 299 174.


RotorRO92150.00Product link
GeneratorG92150.00Product link
Regulator RectifierRR451114.00Product link

Moto Guzzi (75-92), BMW Boxer (70-76) Bosch Alternator Replacement Kit - 105mm Adaptor Plate- STK-502
Moto Guzzi Bosch Alternator Replacement Kit - (STK-502)Stator assembly mounted on to the engine - (STK-502)Wiring Diagram - (STK-502)Moto Guzzi (75-92), BMW Boxer (70-76) Bosch Alternator Replacement Kit - 105mm Adaptor Plate- STK-502 - view 4

Moto Guzzi (75-92), BMW Boxer (70-76) Bosch Alternator Replacement Kit - 105mm Adaptor Plate- STK-502


Price (excl. vat): 325.00
(390.00 Including VAT at 20%)

Many of these items are made to order.
You will be advised on any delay.

Stator Kit Fits:

Moto Guzzi:1975-1992
Bosch alternator replacement kit

NOTE: Some BMW models also have location diameters of 105mm. NOTE: For years 1974-75 there may be a cross over, so please be careful and measure as accurately possible. If your adaptor ring has a measurement of 107mm you need to see our part STK-500 - link in related products below.

  • New permanent brushless alternator - up to 400w output.
  • Excellent output at low speed - 20amp at only 2000rpm, therefore ideal for Moto Guzzi.
  • Very heavy duty series regulator/rectifier with output cable for 'charge warning' indicator.
  • Fitting kit precision CNC machined from single billet with either stainless steel or anodised aluminium used.
  • Direct fitting no mechanical modifications required, minimal wiring for reliability.
  • Designed and manufactured to modern OEM specifications.
  • Manufactured in the UK.

Click the following link to download fitting instructions:
Download Instructions

Warranty

  • Road bike components - one year from the date of purchase
  • Off-road bike components - six months from the date of purchase
  • Race bike components - no warranty in line with industry practice
  • Any warranty does not cover defects due to abuse, misuse, improper installation or modification.

Transit

If any items were damaged in transit, we ask that you report it to us within 7 working days. On their return they can be replaced or a refund issued via your original payment method.

Faulty on arrival

If your items are faulty on arrival, you should inform us within 14 days of delivery. Items should be returned in their original packaging when possible with a copy of original documentation. Once we have verified the fault, we will issue a replacement or full refund to you via your original payment method.

Items faulty in warranty period

If any of your purchases develop a fault within its warranty period it will need to be returned. Once the fault has been verified, a repair or exchange of goods will be issued. If goods are found to be in good working order a testing/administration charge of 15 + VAT and return postage will be made to the customer.

Items ordered in error

If an item has been ordered in error, you should inform us within 14 days of delivery. We will not accept returned goods without prior consent except under guarantee. A minimum restocking/administration charge of 5 + VAT will be made on returned goods.

Returns We want you to be happy with your purchase from Electrex World Limited however there may be certain instances when products may need to be returned.

International Returns

International returns must be marked as 'Return - Failed Sale on any customs documentation. If there are any customs fees to pay, we will deduct these from your refund/credit.

Notes

  1. All returns must be accompanied by a copy of the original invoice and a completed returns form which can be downloaded using the following link:
    RETURNS FORM
  2. Returns take approximately five business days to process upon receipt of the item.
  3. We are not responsible for the loss or damage of items during their return. Please note that the customer has a duty of care whilst the goods are in their possession and that they should be thoughtfully packaged for the return shipment.
  4. Buyer is responsible for any shipping charges when returning the item.
  5. When fitting electrical parts these can be damaged by the same faulty electrical system that caused the initial failure and in such circumstances these parts cannot be returned for refund.
  6. No refund can be given If the item is out of warranty, if the item is within warranty but has been subjected to conditions beyond their specification or the item has been fitted/used.

Return Address

Electrex World Limited Units 43-46 Vanalloys Business Park Stoke Row Oxfordshire RG9 5QW

2006-2016 Electrex World Ltd. All rights reserved. Home | Terms & Conditions

Registered in England & Wales Company Registration number 04306310. VAT number 785 299 174.


RotorRO92150.00Product link
GeneratorG92150.00Product link
Regulator RectifierRR451114.00Product link

Universal Ignition & 100w Alternator Stator System - STK-670
Universal Ignition only Stator System - (STK-670)Dimensions of rotor/stator - as suppliedDimensions shown for rotor/stator and example of typical application fitmentIgnition circuit and DC battery charging

Universal Ignition & 100w Alternator Stator System - STK-670


Price (excl. vat): 195.00
(234.00 Including VAT at 20%)

Many of these items are made to order.
You will be advised on any delay.

Stator Kit Fits:

Universal:
  • 100 watt single phase alternator.
  • CDI self generating system.
  • Internal pick-up allows compact dimensions.
  • Fixed ignition timing.
  • Manufactured in the UK.

Click the following link to download fitting instructions:
Download Instructions

Warranty

  • Road bike components - one year from the date of purchase
  • Off-road bike components - six months from the date of purchase
  • Race bike components - no warranty in line with industry practice
  • Any warranty does not cover defects due to abuse, misuse, improper installation or modification.

Transit

If any items were damaged in transit, we ask that you report it to us within 7 working days. On their return they can be replaced or a refund issued via your original payment method.

Faulty on arrival

If your items are faulty on arrival, you should inform us within 14 days of delivery. Items should be returned in their original packaging when possible with a copy of original documentation. Once we have verified the fault, we will issue a replacement or full refund to you via your original payment method.

Items faulty in warranty period

If any of your purchases develop a fault within its warranty period it will need to be returned. Once the fault has been verified, a repair or exchange of goods will be issued. If goods are found to be in good working order a testing/administration charge of 15 + VAT and return postage will be made to the customer.

Items ordered in error

If an item has been ordered in error, you should inform us within 14 days of delivery. We will not accept returned goods without prior consent except under guarantee. A minimum restocking/administration charge of 5 + VAT will be made on returned goods.

Returns We want you to be happy with your purchase from Electrex World Limited however there may be certain instances when products may need to be returned.

International Returns

International returns must be marked as 'Return - Failed Sale on any customs documentation. If there are any customs fees to pay, we will deduct these from your refund/credit.

Notes

  1. All returns must be accompanied by a copy of the original invoice and a completed returns form which can be downloaded using the following link:
    RETURNS FORM
  2. Returns take approximately five business days to process upon receipt of the item.
  3. We are not responsible for the loss or damage of items during their return. Please note that the customer has a duty of care whilst the goods are in their possession and that they should be thoughtfully packaged for the return shipment.
  4. Buyer is responsible for any shipping charges when returning the item.
  5. When fitting electrical parts these can be damaged by the same faulty electrical system that caused the initial failure and in such circumstances these parts cannot be returned for refund.
  6. No refund can be given If the item is out of warranty, if the item is within warranty but has been subjected to conditions beyond their specification or the item has been fitted/used.

Return Address

Electrex World Limited Units 43-46 Vanalloys Business Park Stoke Row Oxfordshire RG9 5QW

2006-2016 Electrex World Ltd. All rights reserved. Home | Terms & Conditions

Registered in England & Wales Company Registration number 04306310. VAT number 785 299 174.

Red - Battery +12v | Green - Battery -12v and earth | Blue - Pick-up | Yellow - HT-coil


Aprilia RS125 Single Curve Ignition only Stator Kit - STK-822

Aprilia RS125 Single Curve Ignition only Stator Kit - STK-822


Price (excl. vat): 175.00
(210.00 Including VAT at 20%)

Many of these items are made to order.
You will be advised on any delay.

Stator Kit Fits:

Aprilia:RS125 - Single curve
  • NOTE: This kit is only suitable for 122cc engines.
  • The stator produces the energy and timing signal which feed the combined cdi, producing a high voltage spark, very easy starting at 250rpm.
  • Ignition advance is fully electronic with a timing curve specifically designed for race engines.
  • Connects directly to the CDI unit, and HT coil.
  • Manufactured in the UK.

Click the following link to download fitting instructions:
Download Instructions

Warranty

  • Road bike components - one year from the date of purchase
  • Off-road bike components - six months from the date of purchase
  • Race bike components - no warranty in line with industry practice
  • Any warranty does not cover defects due to abuse, misuse, improper installation or modification.

Transit

If any items were damaged in transit, we ask that you report it to us within 7 working days. On their return they can be replaced or a refund issued via your original payment method.

Faulty on arrival

If your items are faulty on arrival, you should inform us within 14 days of delivery. Items should be returned in their original packaging when possible with a copy of original documentation. Once we have verified the fault, we will issue a replacement or full refund to you via your original payment method.

Items faulty in warranty period

If any of your purchases develop a fault within its warranty period it will need to be returned. Once the fault has been verified, a repair or exchange of goods will be issued. If goods are found to be in good working order a testing/administration charge of 15 + VAT and return postage will be made to the customer.

Items ordered in error

If an item has been ordered in error, you should inform us within 14 days of delivery. We will not accept returned goods without prior consent except under guarantee. A minimum restocking/administration charge of 5 + VAT will be made on returned goods.

Returns We want you to be happy with your purchase from Electrex World Limited however there may be certain instances when products may need to be returned.

International Returns

International returns must be marked as 'Return - Failed Sale on any customs documentation. If there are any customs fees to pay, we will deduct these from your refund/credit.

Notes

  1. All returns must be accompanied by a copy of the original invoice and a completed returns form which can be downloaded using the following link:
    RETURNS FORM
  2. Returns take approximately five business days to process upon receipt of the item.
  3. We are not responsible for the loss or damage of items during their return. Please note that the customer has a duty of care whilst the goods are in their possession and that they should be thoughtfully packaged for the return shipment.
  4. Buyer is responsible for any shipping charges when returning the item.
  5. When fitting electrical parts these can be damaged by the same faulty electrical system that caused the initial failure and in such circumstances these parts cannot be returned for refund.
  6. No refund can be given If the item is out of warranty, if the item is within warranty but has been subjected to conditions beyond their specification or the item has been fitted/used.

Return Address

Electrex World Limited Units 43-46 Vanalloys Business Park Stoke Row Oxfordshire RG9 5QW

2006-2016 Electrex World Ltd. All rights reserved. Home | Terms & Conditions

Registered in England & Wales Company Registration number 04306310. VAT number 785 299 174.


RotorIR12255.00Product link
Ignition StatorEWST-0094-HPI075.00Product link
Base PlateBP12225.00Product link
CDICD068C06855.00Product link
HT CoilHT5530.00Product link
SwitchSW1120.00Product link
HT plugcapPLUGCAP4.00Product link

CZ (single port) External Rotor Stator Kit - STK-950

CZ (single port) External Rotor Stator Kit - STK-950


Price (excl. vat): 195.00
(234.00 Including VAT at 20%)

Many of these items are made to order.
You will be advised on any delay.

Stator Kit Fits:

CZ:Single port

High energy cdi ignition system with electronic advance/retard curve for very easy starting and smooth, tractable performance.


  • Direct replacement for the original points system, no machining or modification required.
  • Timing set-up is simple with engraved marks on the rotor and stator and adjustment via the original slotted cover.
  • The rotor is machined from a single billet with a keyway and extractor thread to match the original rotor with perfect balance by deisgn. Marks are engraved to allow timing to be set up at the full advance position.
  • Flywheel weight is 2.05kg (4.5lb).
  • The magnet is a one piece composite high energy type. High quality electroplating for maximum protection.
  • Optional puller also available - see related products below.
  • Combined lighting/ignition version also available - see related products below.
  • Manufactured in the UK.

Click the following link to download fitting instructions:
Download Instructions

Warranty

  • Road bike components - one year from the date of purchase
  • Off-road bike components - six months from the date of purchase
  • Race bike components - no warranty in line with industry practice
  • Any warranty does not cover defects due to abuse, misuse, improper installation or modification.

Transit

If any items were damaged in transit, we ask that you report it to us within 7 working days. On their return they can be replaced or a refund issued via your original payment method.

Faulty on arrival

If your items are faulty on arrival, you should inform us within 14 days of delivery. Items should be returned in their original packaging when possible with a copy of original documentation. Once we have verified the fault, we will issue a replacement or full refund to you via your original payment method.

Items faulty in warranty period

If any of your purchases develop a fault within its warranty period it will need to be returned. Once the fault has been verified, a repair or exchange of goods will be issued. If goods are found to be in good working order a testing/administration charge of 15 + VAT and return postage will be made to the customer.

Items ordered in error

If an item has been ordered in error, you should inform us within 14 days of delivery. We will not accept returned goods without prior consent except under guarantee. A minimum restocking/administration charge of 5 + VAT will be made on returned goods.

Returns We want you to be happy with your purchase from Electrex World Limited however there may be certain instances when products may need to be returned.

International Returns

International returns must be marked as 'Return - Failed Sale on any customs documentation. If there are any customs fees to pay, we will deduct these from your refund/credit.

Notes

  1. All returns must be accompanied by a copy of the original invoice and a completed returns form which can be downloaded using the following link:
    RETURNS FORM
  2. Returns take approximately five business days to process upon receipt of the item.
  3. We are not responsible for the loss or damage of items during their return. Please note that the customer has a duty of care whilst the goods are in their possession and that they should be thoughtfully packaged for the return shipment.
  4. Buyer is responsible for any shipping charges when returning the item.
  5. When fitting electrical parts these can be damaged by the same faulty electrical system that caused the initial failure and in such circumstances these parts cannot be returned for refund.
  6. No refund can be given If the item is out of warranty, if the item is within warranty but has been subjected to conditions beyond their specification or the item has been fitted/used.

Return Address

Electrex World Limited Units 43-46 Vanalloys Business Park Stoke Row Oxfordshire RG9 5QW

2006-2016 Electrex World Ltd. All rights reserved. Home | Terms & Conditions

Registered in England & Wales Company Registration number 04306310. VAT number 785 299 174.


RotorRO950120.00Product link
Ignition StatorEWST-095075.00Product link
HT CoilHT CDI55.00Product link
SwitchSW1120.00Product link
HT plugcapPLUGCAP4.00Product link

Related products:

CZ Flywheel Puller - FP-36-1.5

CZ (single port) External Rotor Stator Kit - STK-952

CZ (single port) External Rotor Stator Kit - STK-952


Price (excl. vat): 225.00
(270.00 Including VAT at 20%)

Many of these items are made to order.
You will be advised on any delay.

Stator Kit Fits:

CZ:Single port

High energy cdi ignition system with electronic advance/retard curve for very easy starting and smooth, tractable performance.


  • Direct replacement for the original points system, no machining or modification required.
  • Timing set-up is simple with engraved marks on the rotor and stator and adjustment via the original slotted cover.
  • The rotor is machined from a single billet with a keyway and extractor thread to match the original rotor with perfect balance by deisgn. Marks are engraved to allow timing to be set up at the full advance position.
  • Flywheel weight is 2.05kg (4.5lb).
  • The magnet is a one piece composite high energy type. High quality electroplating for maximum protection.
  • Optional puller also available - see related products below.
  • Manufactured in the UK.

Click the following link to download fitting instructions:
Download Instructions

Warranty

  • Road bike components - one year from the date of purchase
  • Off-road bike components - six months from the date of purchase
  • Race bike components - no warranty in line with industry practice
  • Any warranty does not cover defects due to abuse, misuse, improper installation or modification.

Transit

If any items were damaged in transit, we ask that you report it to us within 7 working days. On their return they can be replaced or a refund issued via your original payment method.

Faulty on arrival

If your items are faulty on arrival, you should inform us within 14 days of delivery. Items should be returned in their original packaging when possible with a copy of original documentation. Once we have verified the fault, we will issue a replacement or full refund to you via your original payment method.

Items faulty in warranty period

If any of your purchases develop a fault within its warranty period it will need to be returned. Once the fault has been verified, a repair or exchange of goods will be issued. If goods are found to be in good working order a testing/administration charge of 15 + VAT and return postage will be made to the customer.

Items ordered in error

If an item has been ordered in error, you should inform us within 14 days of delivery. We will not accept returned goods without prior consent except under guarantee. A minimum restocking/administration charge of 5 + VAT will be made on returned goods.

Returns We want you to be happy with your purchase from Electrex World Limited however there may be certain instances when products may need to be returned.

International Returns

International returns must be marked as 'Return - Failed Sale on any customs documentation. If there are any customs fees to pay, we will deduct
