Royal Enfield Crusader 250, Continental GT 250 Ignition & Lighting Alternator Kit - STK-109D

Royal Enfield Crusader 250, Continental GT 250 Ignition & Lighting Alternator Kit - STK-109D

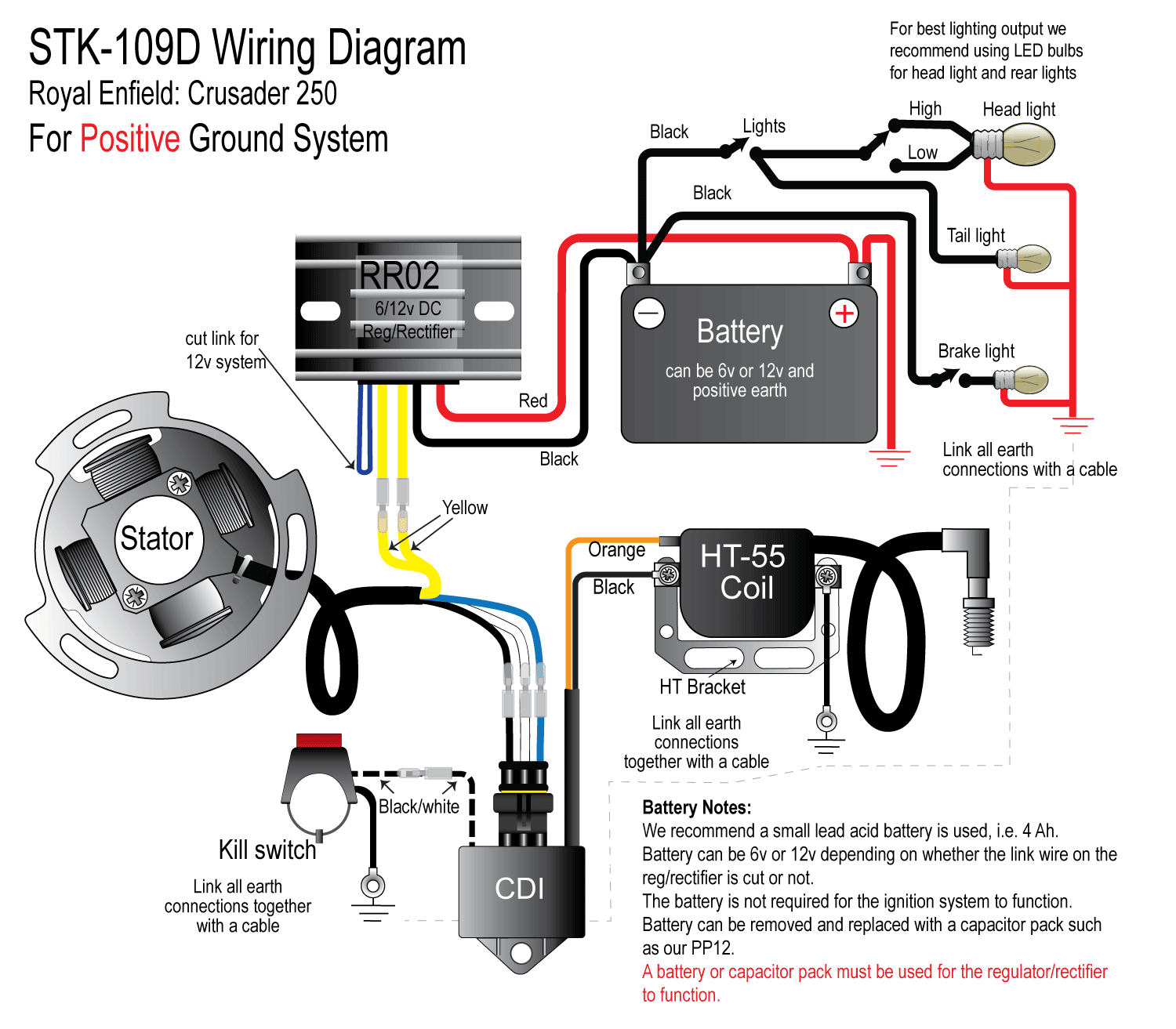

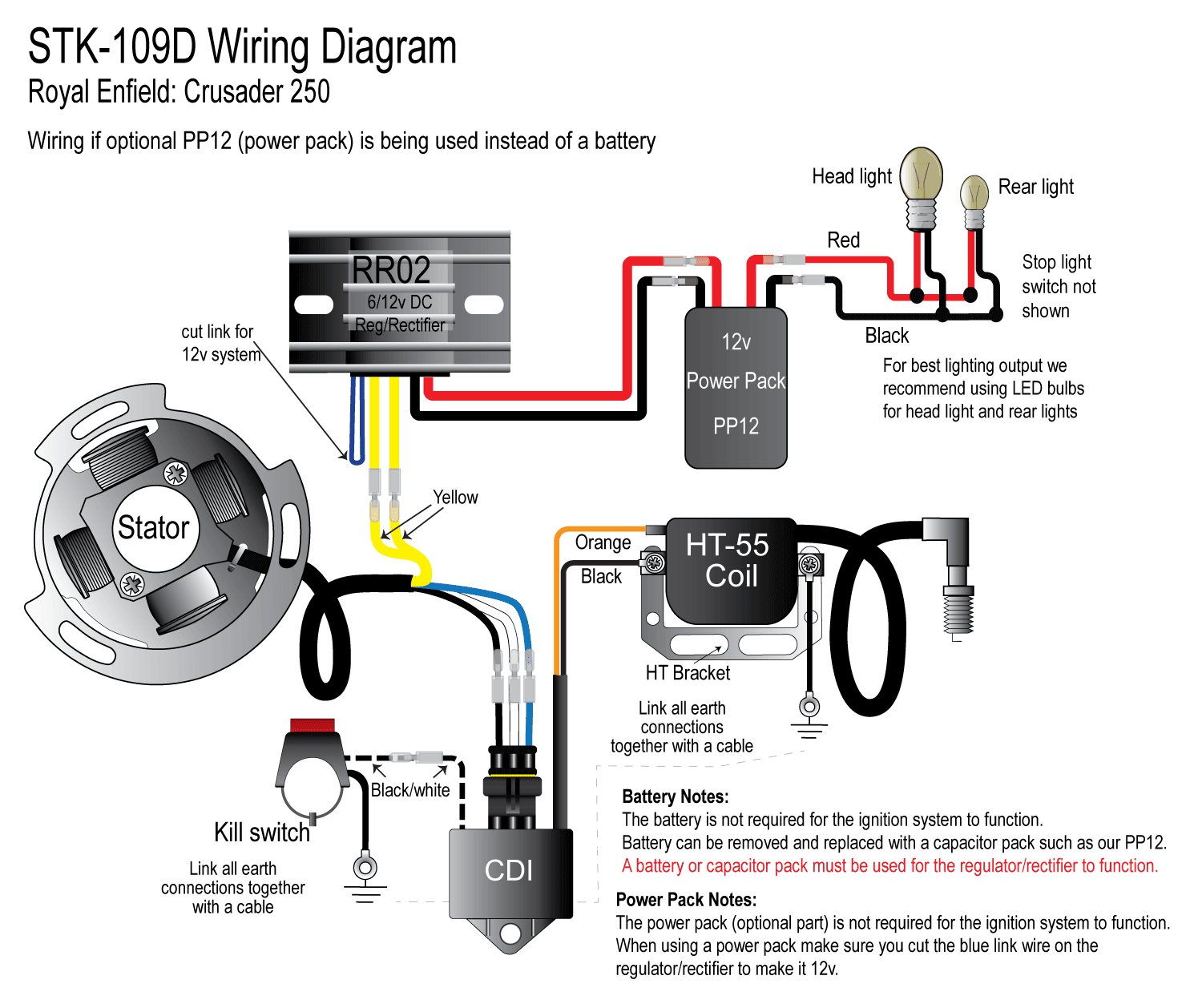

Royal Enfield Crusader 250 Ignition & Lighting Alternator Kit - (STK-109D)Wiring diagram - (STK-109D)NOTE: example only, for the Crusader this will be on the right hand side of the engine - (STK-109D)

Price (excl. vat): 282.00 / 329.94
(338.40 / 395.93 Including VAT at 20%)

Many of these items are made to order.
You will be advised on any delay.

Stator Kit Fits:

Royal Enfield:BulletCrusader 250
Continental GT 250

NOTE: This kit only fits Crusader and Continental GT 250 models and mounts on the right hand side of the engine.

  • Combined self generating CDI ignition + alternator output for lighting/battery charging.
  • System is 12v only with a regulator supplying controlled 12v AC for lighting + 12v DC for battery charging if required.
  • Replaces original Lucas/Wipac alternator and rotor. Points, distributor and battery are not required.
  • Keyless rotor fitting onto crankshaft. This uses a taper collet to lock the rotor key securely onto the crank. Advantages over a woodruff key and keyway are infinite positioning of the rotor for ignition timing. Can be used on a worn crank or damaged keyway.
  • Blue to White source coil: 290ohms.
  • Easy starting hot or cold.
  • Manufactured in the UK.

Click the following link to download fitting instructions:
Download Instructions


  • Road bike components - one year from the date of purchase
  • Off-road bike components - six months from the date of purchase
  • Race bike components - no warranty in line with industry practice
  • Any warranty does not cover defects due to abuse, misuse, improper installation or modification.


If any items were damaged in transit, we ask that you report it to us within 7 working days. On their return they can be replaced or a refund issued via your original payment method.

Faulty on arrival

If your items are faulty on arrival, you should inform us within 14 days of delivery. Items should be returned in their original packaging when possible with a copy of original documentation. Once we have verified the fault, we will issue a replacement or full refund to you via your original payment method.

Items faulty in warranty period

If any of your purchases develop a fault within its warranty period it will need to be returned. Once the fault has been verified, a repair or exchange of goods will be issued. If goods are found to be in good working order a testing/administration charge of 15 + VAT and return postage will be made to the customer.

Items ordered in error

If an item has been ordered in error, you should inform us within 14 days of delivery. We will not accept returned goods without prior consent except under guarantee. A minimum restocking/administration charge of 5 + VAT will be made on returned goods.

Returns We want you to be happy with your purchase from Electrex World Limited however there may be certain instances when products may need to be returned.

International Returns

International returns must be marked as 'Return - Failed Sale on any customs documentation. If there are any customs fees to pay, we will deduct these from your refund/credit.


  1. All returns must be accompanied by a copy of the original invoice and a completed returns form which can be downloaded using the following link:
  2. Returns take approximately five business days to process upon receipt of the item.
  3. We are not responsible for the loss or damage of items during their return. Please note that the customer has a duty of care whilst the goods are in their possession and that they should be thoughtfully packaged for the return shipment.
  4. Buyer is responsible for any shipping charges when returning the item.
  5. When fitting electrical parts these can be damaged by the same faulty electrical system that caused the initial failure and in such circumstances these parts cannot be returned for refund.
  6. No refund can be given If the item is out of warranty, if the item is within warranty but has been subjected to conditions beyond their specification or the item has been fitted/used.

Return Address

Electrex World Limited Units 43-46 Vanalloys Business Park Stoke Row Oxfordshire RG9 5QW

2006-2016 Electrex World Ltd. All rights reserved. Home | Terms & Conditions

Registered in England & Wales Company Registration number 04306310. VAT number 785 299 174.

External RotorRO109114.00Product link
StatorEWST-0079-HPI0114.00Product link
CDICD068C04199.00Product link
Regulator RectifierRR0264.80Product link
HT CoilHT5530.00Product link
SwitchSW1120.00Product link
HT plugcapPLUGCAP4.00Product link
