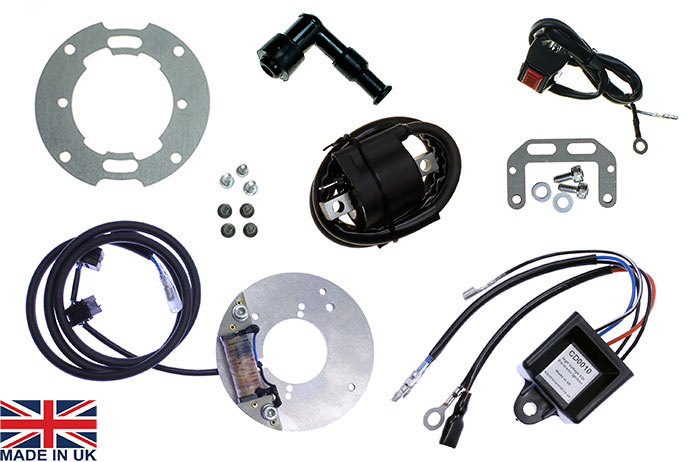

Honda XL250K, XL250 Motosport, XL350 CDI Lighting/Ignition Stator Kit - STK-205L

Honda XL250K, XL250 Motosport, XL350 CDI Lighting/Ignition Stator Kit - STK-205L

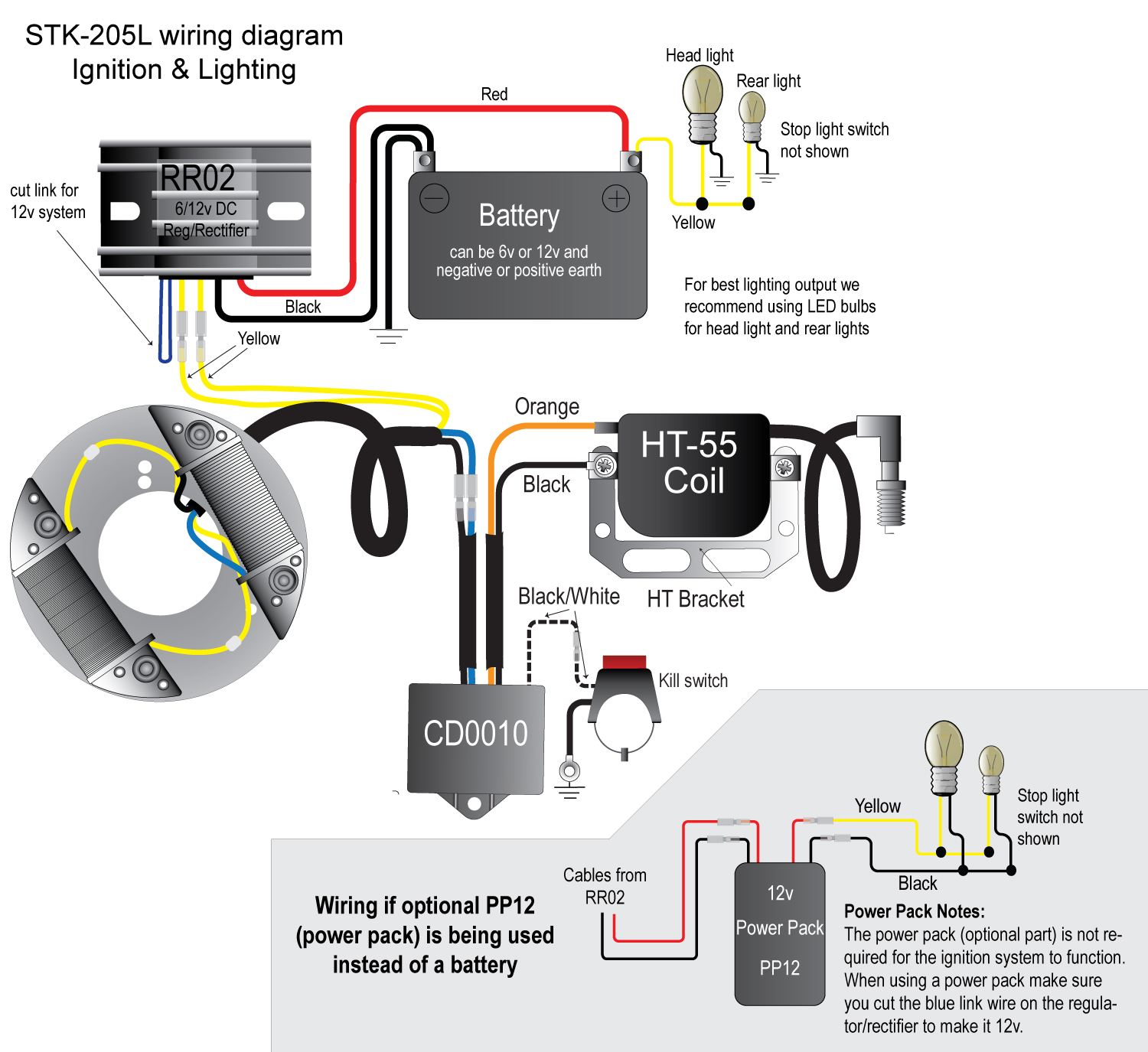

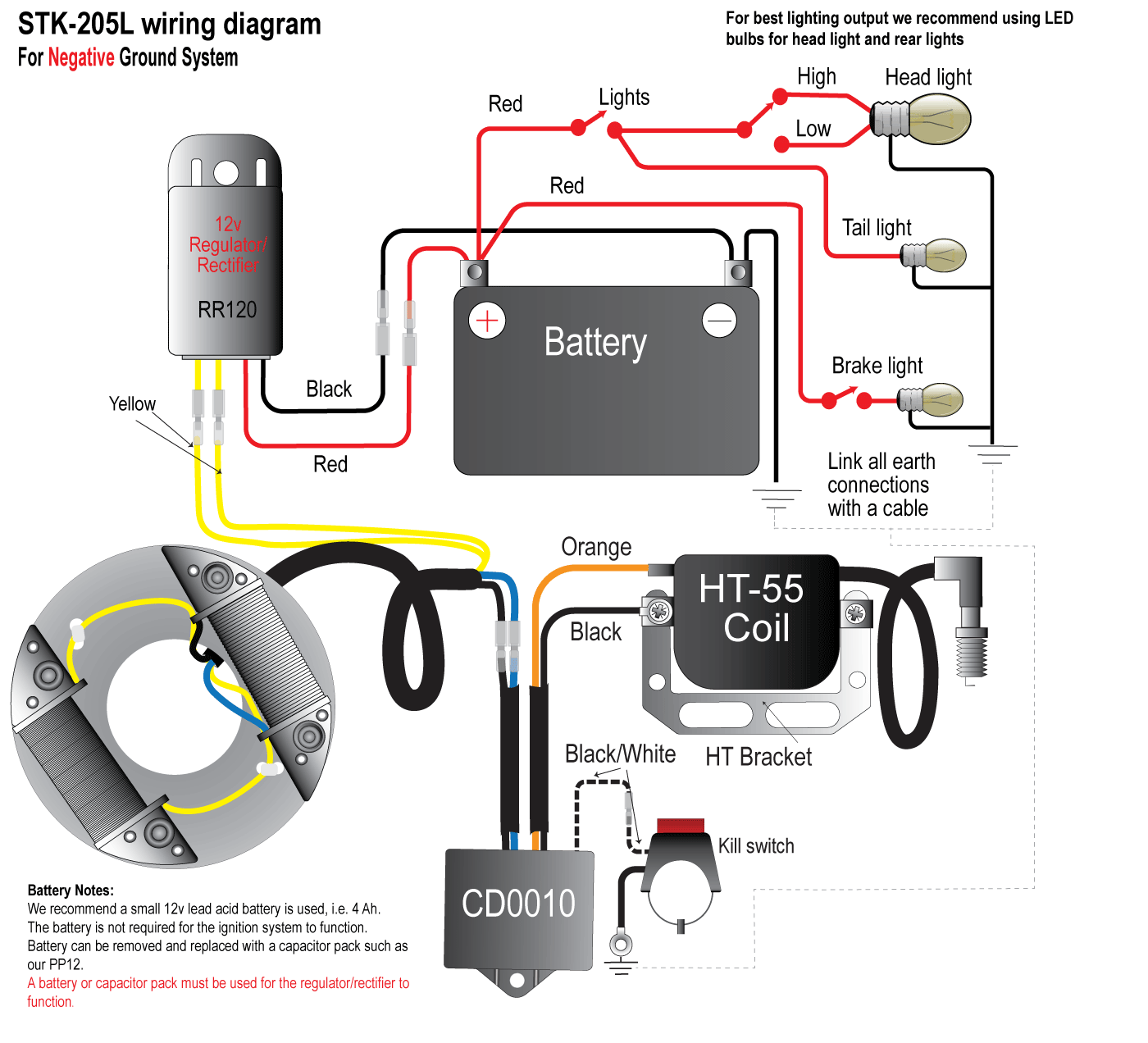

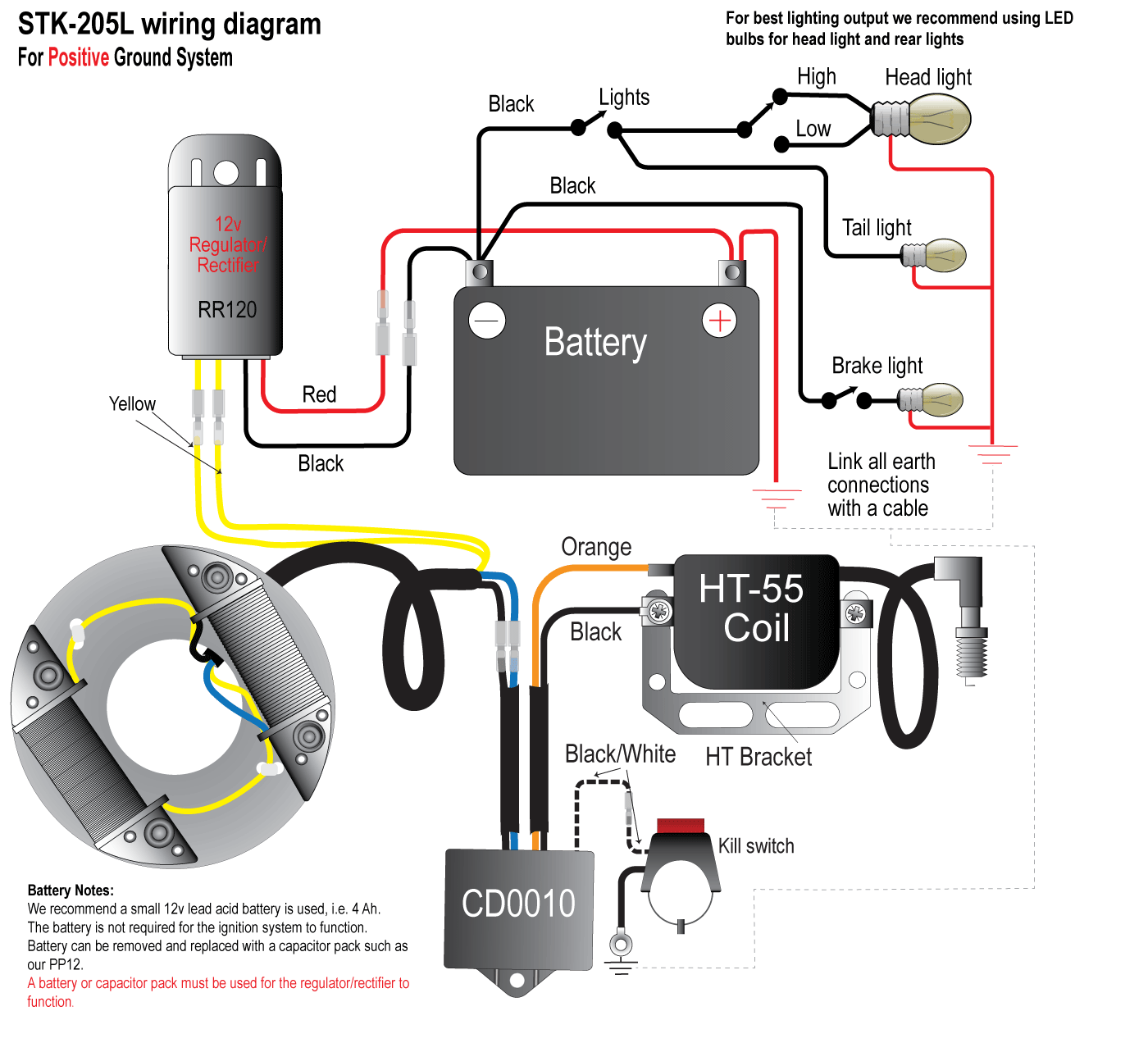

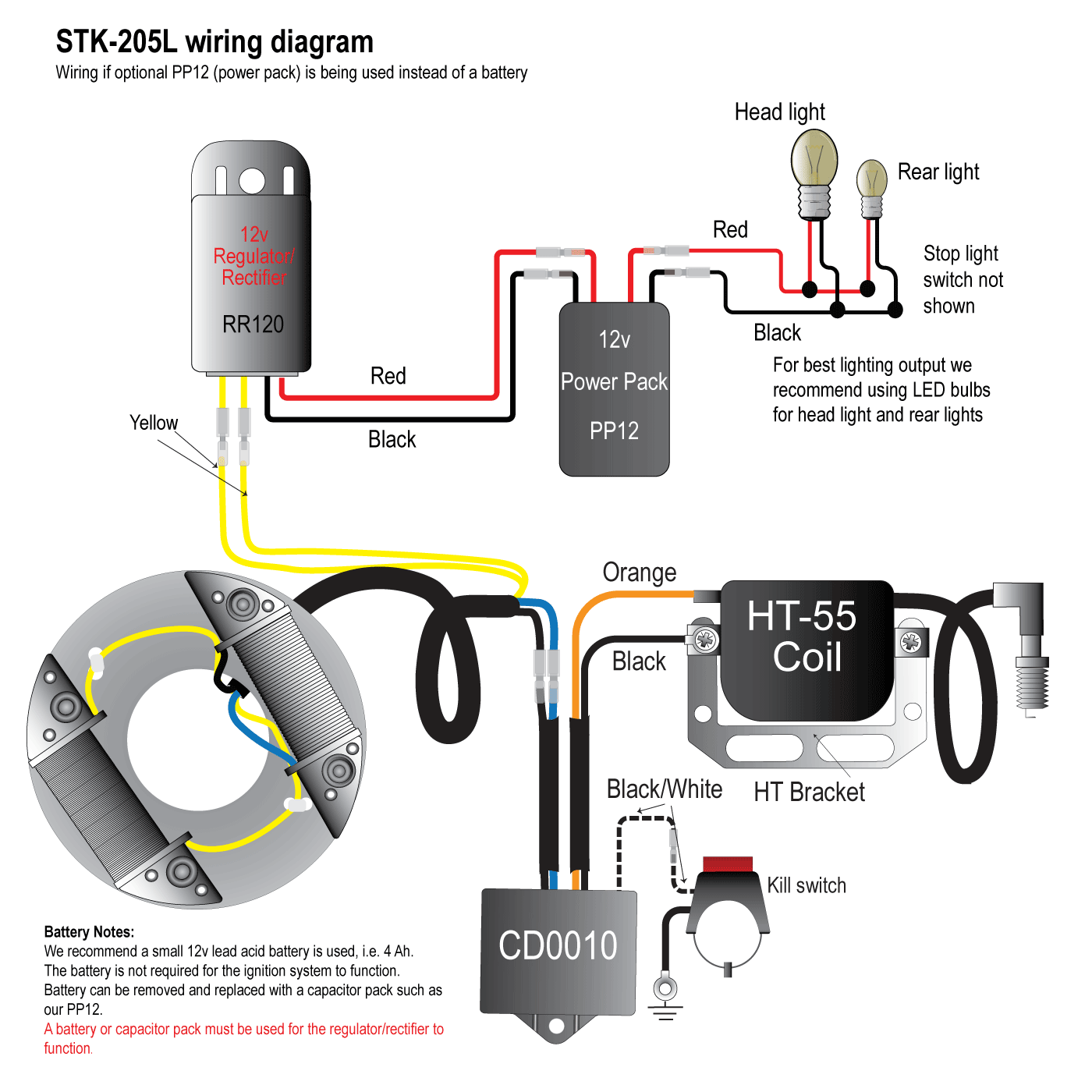

Honda XL250K, XL250 Motosport, XL350 CDI Lighting/Ignition Stator Kit - (STK-205L)Wiring diagram using a small battery - (STK-205L)Wiring diagram using a capacitior - (STK-205L)

Price (excl. vat): 195.00
(234.00 Including VAT at 20%)

Many of these items are made to order.
You will be advised on any delay.

Stator Kit Fits:

Honda:XL250 (1972-1977)
XL250 K0 (XL250K0)
XL250 K1 (XL250K1)
XL250 K2 (XL250K2)
XL250 Motosport
XL350 (1974-1978)
  • Self generating CDI ignition eliminates requirement for a battery, points or distributor.
  • CDI Ignition has a smooth advance for performance and easy starting even when hot.
  • The spark energy and the timing are produced by the stator coil. The exact advance curve is determined by the stator + CDI combination.
  • Simple fitting designed to work with the original flywheel/rotor.
  • One piece combined CDI & HT coil, only two cables to connect.
  • 12v DC lighting kit enabling the use of LED lights with a capacitor (choose Power pack option from the list above the 'Add to Basket' box) or small battery.
  • Manufactured in the UK.

Click the following link to download fitting instructions:
Download Instructions
